Tazz 18493 - ILLUSTRATED PARTS BREAKDOWN

Operator’s Manual
Chipper Shredders
22 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
ITEM # PART # DESCRIPTION QT Y.
1 50175 WASHER 12MM TILLER 2
2 22243 CHIPPER WHEEL 11X 2 2
3 22245 CONE COVER 1
4 21930 WELDMENT CHIPPER CONE 1
5 16400 NUT M8 X 1.25 HSF NYLOC GR8.8 ZN 8
6 22097 COTTER PIN HAIRPIN 2MM X 50MM 2
7 12770 M8 X 1.25 X 40 MM 88 ZN 4
8 20143 WASHER M8 X 16 X 1.6 FLAT ZN 12
9 22093 KICKSTAND CHIPPER 1
10
W1256V0900
NUT M8 X 1.25 HNYLK GR8.8 ZN 8
11 14109 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 3
12 20818 BOLT M8 X 1.25 X 16 HHSF GR8.8 ZN 4
13 21904 HANDLEBAR CHIPPER 1
*Item shown for illustrative purposes only.

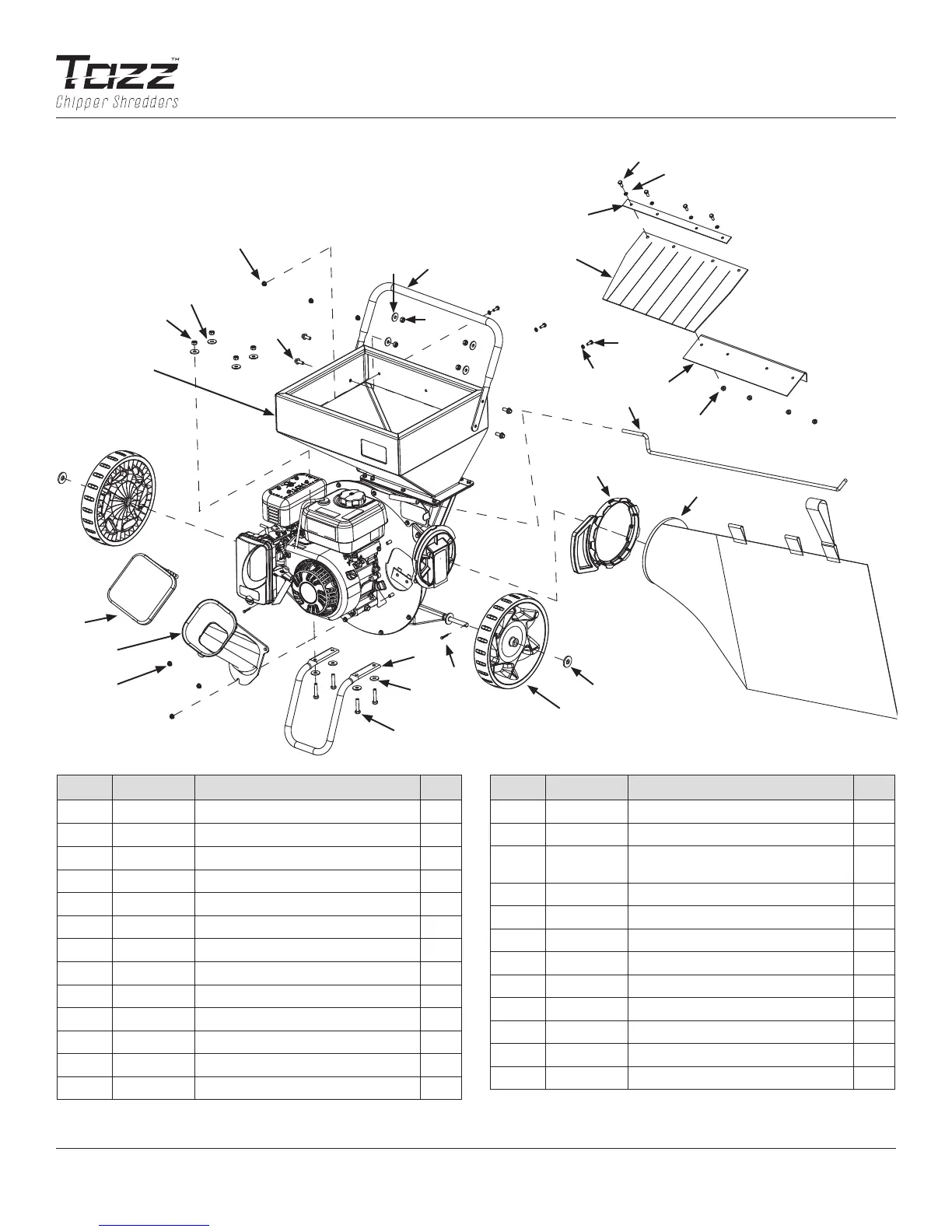

ILLUSTRATED PARTS BREAKDOWN
1
2
3
4
5
6
7
8
9
10
8
11
12
8
10
13
14
15
22
16
23
24
21
18
17
20
19
25
ITEM # PART # DESCRIPTION QT Y.
14 670890 BOLT M6 X 1.0 X 16 HH GR8.8 ZN 3
15 18130 WASHER M6 X 1.5 SPRLK ZN 3
16 1095100 GUARD HOPPER 10.25 X 1.00 X 0.10
BLACK
1
17 14109 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 4
18 18130 WASHER M6 X 1.5 SPRLCK ZN 4
19 22091 FLANGE HOPPER GUARD 1
20 22110 RETAINER HOPPER GUARD 1
21 67089 BOLT M6 X 1.0 X 16 HH GR 8.8 ZN 4
22 21942 ROD BAG SUPPORT 1
23 21932 CONNECTOR BAG 1
24 22029 BAG CHIPPER 840MM X 560MM 2
25* --- CHIPPER ASSEMBLY ---
