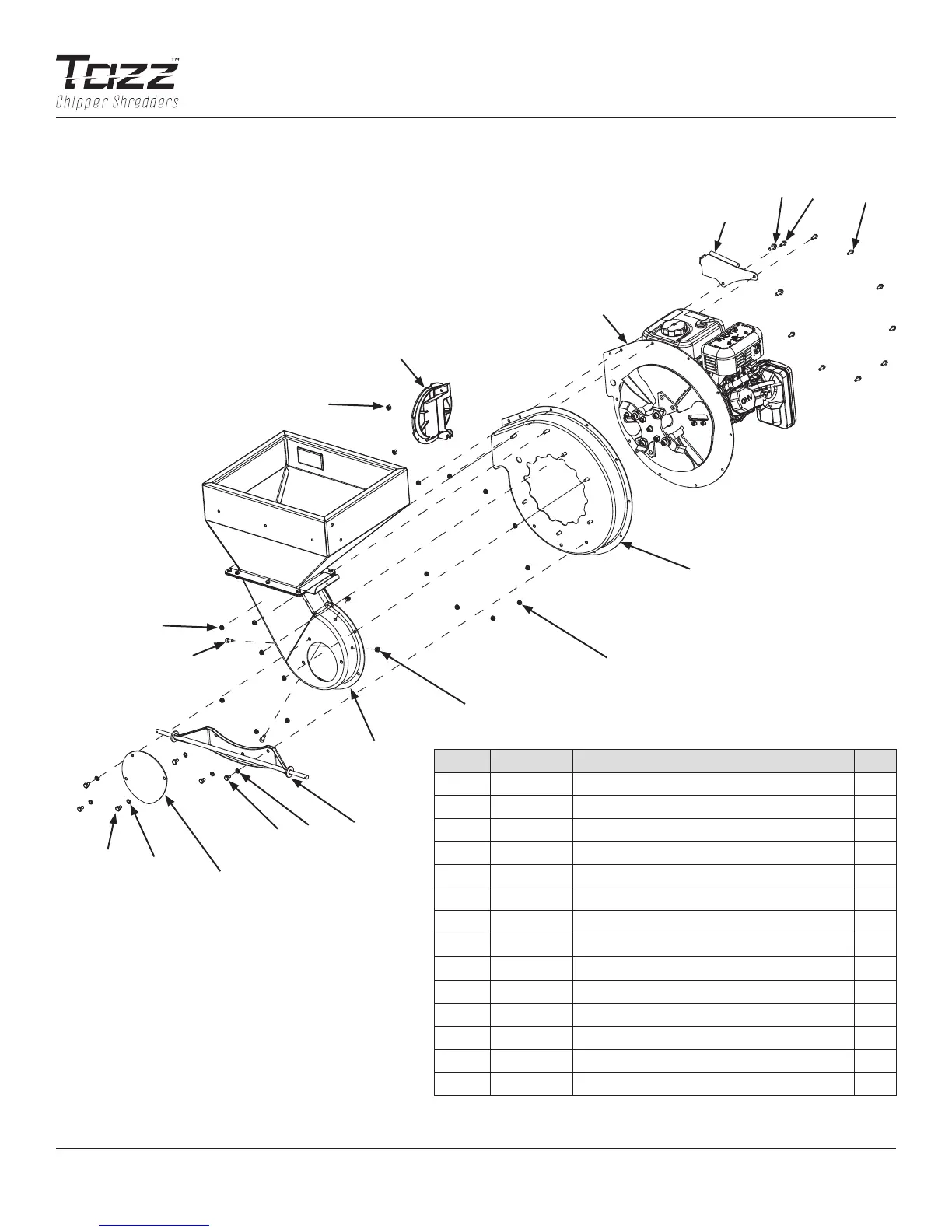

Tazz 18493 - ILLUSTRATED PARTS BREAKDOWN - CHIPPER HOUSING GROUP

Operator’s Manual
Chipper Shredders
26 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5
ITEM # PART # DESCRIPTION QT Y.
1 20812 WELDMENT HOUSING ROTOR 1
2 22666 ASSEMBLY BAG CONNECTOR KIT 1
3 22650 COVER ROTOR HOUSING GREEN PANTONE 361 1
4 13599 NUT M6 X 1.0 HHFNYLK GR8.8 ZN 16
5 21640 WASHER M8 SPRING LOCK ZINC 6
6 3241 BOLT M8 X 1.25 12 HHCS GR8.8 ZN 6
7
W1265V0900
NUT M8 X 1.25 HNYLK GR8.8 ZN 4
8 23956 BOLT M8 X 1.25 X 12 SHCS GR8.8 ZN F-T 2
9 22027 BOLT M8-1.25 X 20 SFH GR8.8 ZN F-T 2
10 22025 BOLT M6-1.0 X 16 SFH GR8.8 ZN F-T 9
11 22539 WELDMENT BAG SUPPORT 1
12 21935 WELDMENT AXLE MOUNT CHIPPER 1
13 19221 WELDMENT CHIPPER BACK COVER 1
14* --- ENGINE AND ROTOR GROUP ---
2
11
10
4
8
6
5
3
6
5
12
1
10
7
9
*Item shown for illustrative purposes only.
4
14
13
7
ILLUSTRATED PARTS BREAKDOWN  CHIPPER HOUSING GROUP
