Tazz 18493 - ILLUSTRATED PARTS BREAKDOWN - VACUUM KIT (OPTIONAL ACCESSORY) MODEL NO. 22518

Operator’s Manual
Chipper Shredders
28 Check for parts online at www.tazztools.com or call 800-345-6007 M-F 8-5

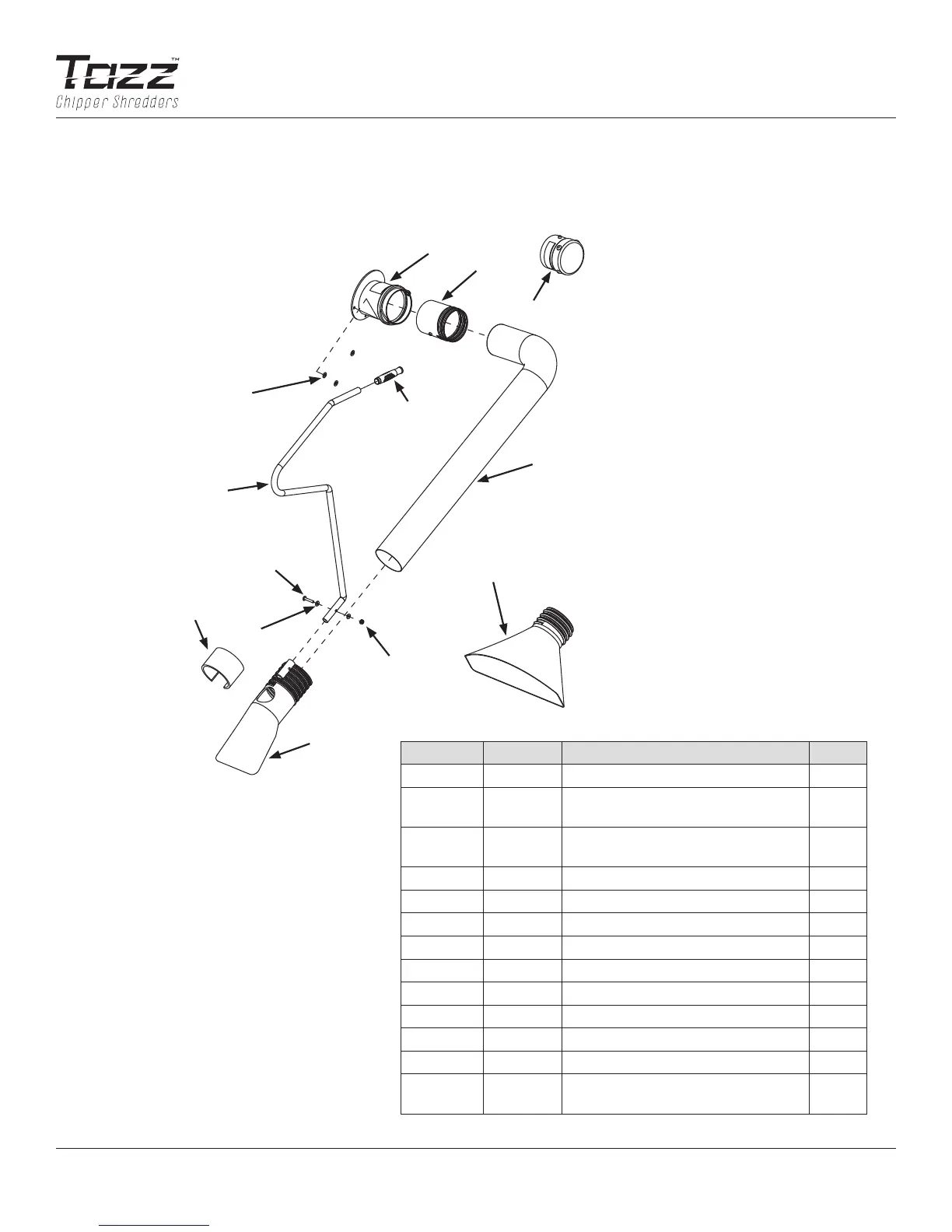

ILLUSTRATED PARTS BREAKDOWN  VACUUM KIT OPTIONAL ACCESSORY MODEL NO. 22518
1
2
3
13
9
8
10
11
6
5
4
12
7
ITEM # PART # DESCRIPTION QT Y.
1 1021100 ADAPTER 4IN VAC COL HOSE 1
2 1023100 COUPLER VAC COL HOSE TO ADAPTER
2C 3
1
3 1025100 CAP PLUG 4IN VOL HOSE 2C HOSE 2C
3C 5C
1
4 1035100 HOSE VAC COL 4.00DIA X 10 FT LG 5C 1
5 1027100 LEAF TRAY 2C 3C 5C VACUUM COL 1
6 1030100 NOZZLE VAC COL FOR 5C CHIPPERS 1
7 1024100 RING PLASTIC 5IN DIA 3IN LG NOTCHED 1
8 1026100 HANDLE VAC COL 0.75IN DIA TUBE 1
9 1028100 GRIP HANDLE 10IP BLACK VINYL 3/4 1
10 6041612 BOLT 1/4-20 X 1-1/2 PTH ZN 1
11 1921319 WASHER 1/4 0.27 IDX0.620DX.05THK 2
12 1960294 NUT 1/4-20 HSFBW BLK ZN 1
13 1919326 WASHER-0.312 0.34ID X 0.75ODX
0.06THK
3
