3. Structure
3.1 Terminal and panel definition
There are two different cable configurations available as per figure 3-1 and figure 3-2 for DX
and DDX models. They have no difference in function.IDX / IDDX models are for OEM and
have more adjustable settings via PC software (ask your dealer for more information and
refer to Figure 5-3 on page 12). The panel and terminal definition are as follow.

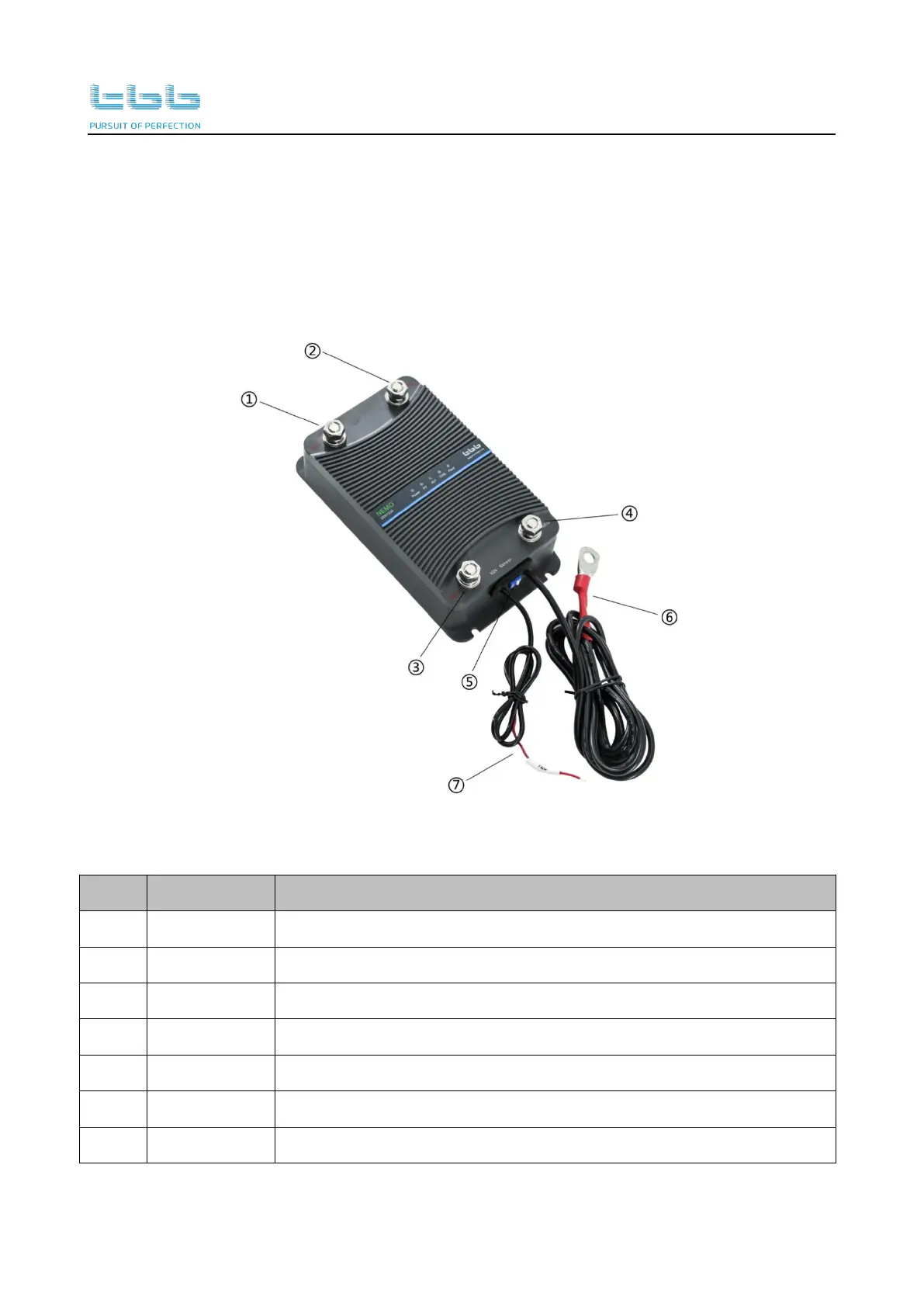

Figure 3-1 Charger model and cable for DX/DDX model
Table 3-1 Connectors or Terminals Description
NO.
Definition
Description
1
ALT+
Alternator IN + , Starter Battery +
2
PV+
PV IN+ (only available for DDX and IDDX)
3
OUT+
Aux battery+
4
NEG-
Common Negative for PV-, Alternator/Starter battery-, Aux battery-
5
Dip switch
Battery type setting
6
Sensor
Temperature and voltage sensor
7
IGN
Ignition feedback wire
