Inside the radio
To change the battery, stick mode, travel range, throttle ratchet, or gimbals, you will need to open up the
remote control. Warranty will still remain intact, of course.

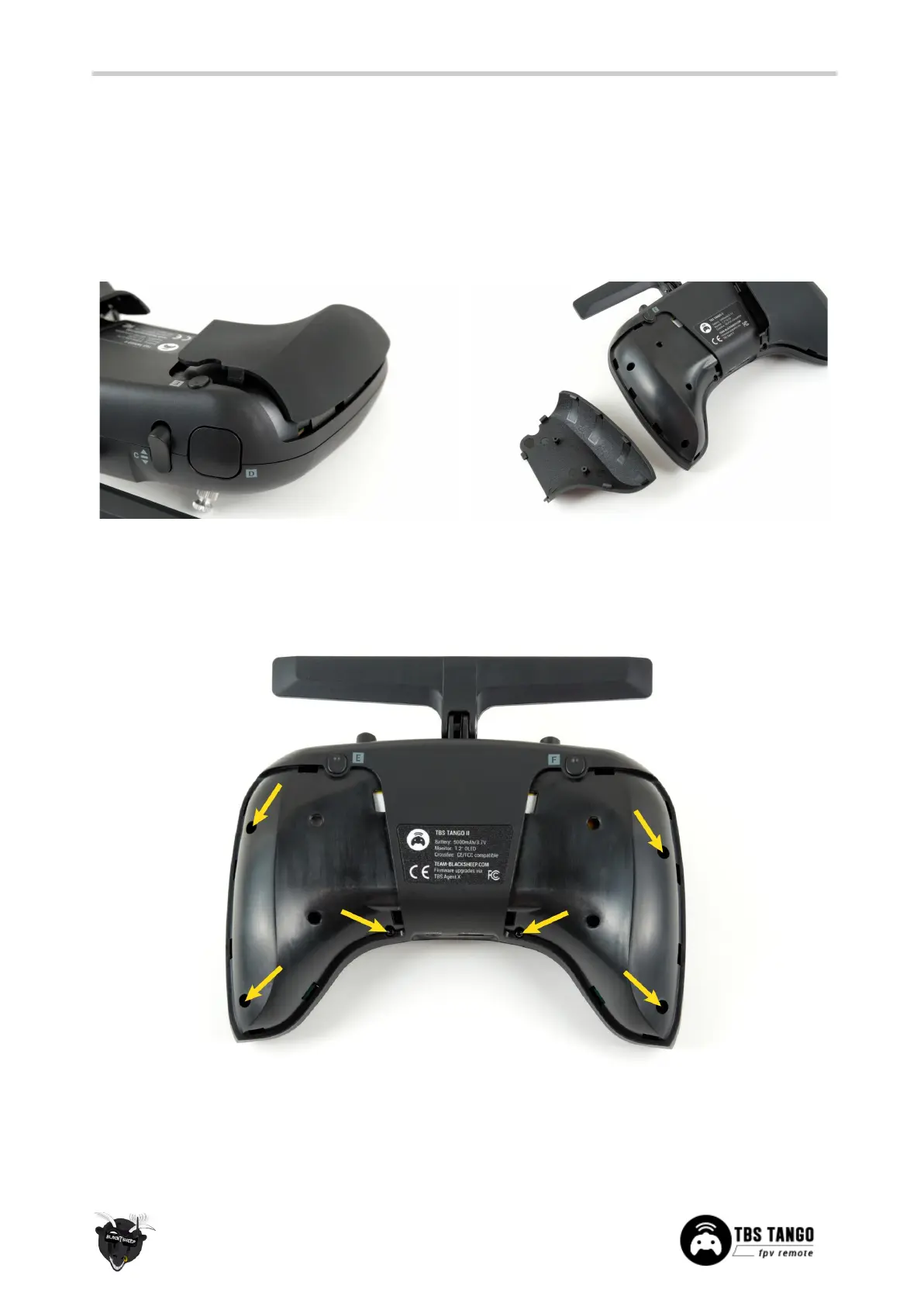

First remove the two rubber covers on the back-side by using a plastic spudger to lift the tabs out of the
housing.
Then remove the six (6) screws, as indicated in the following photo with a M1.5 hex driver. Now, the back
housing lifts off.
