TBS6909 Multi Standard Tuner Card User Guide
1.3 Connect TV Signal Cable to the TV Tuner Card on Your PC
Thanks for using TBS6909, TBS6909 is a powerful DVB-S/S2 octa tuner card, and
there is some information you need to know before using. C signal 5150 V access
Input0, H access to Input 2, C signal 5750 V access Input 1, H access to Input 3

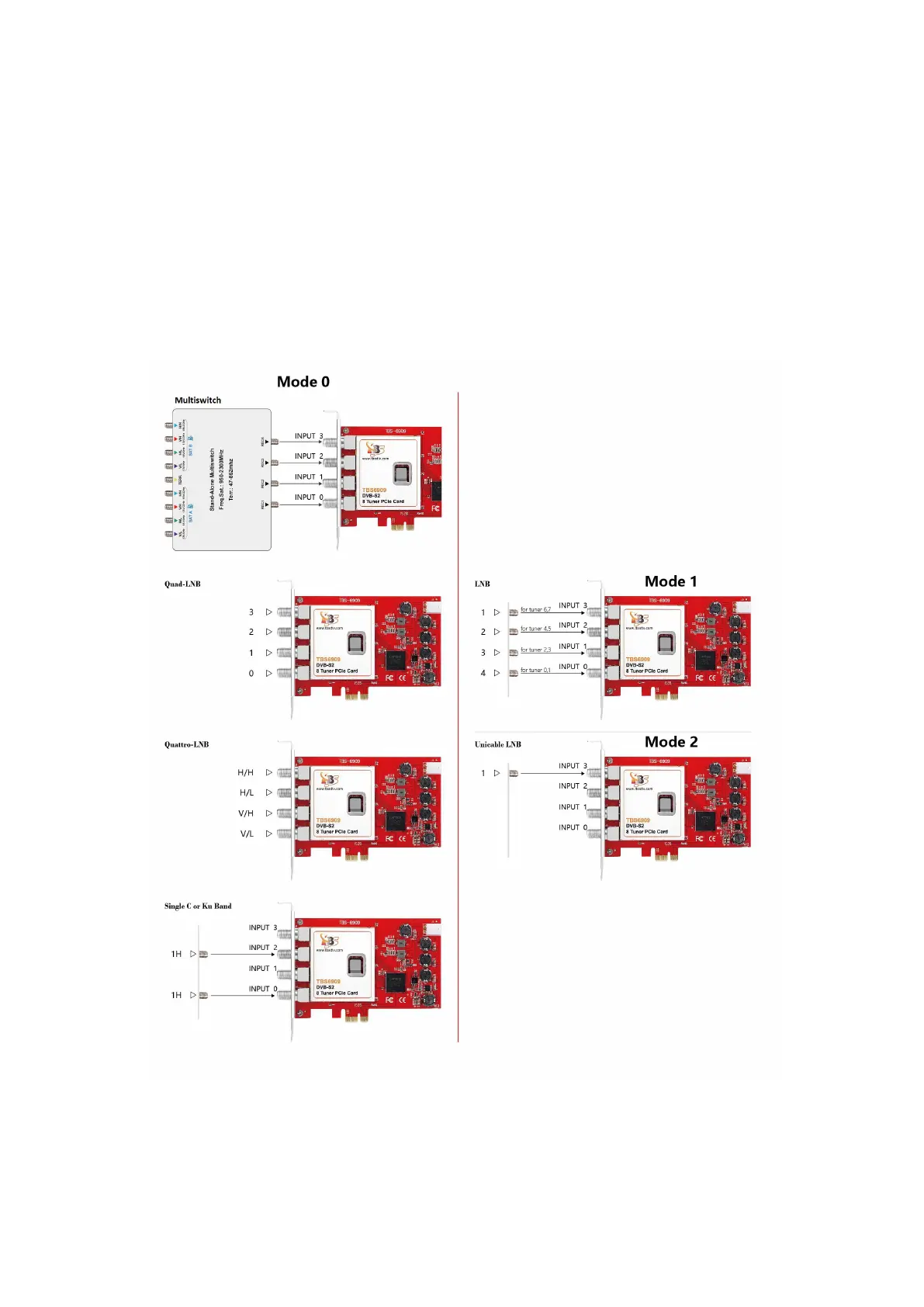

There are three ways of signal input for TBS6909, which are shown as the picture
below:
