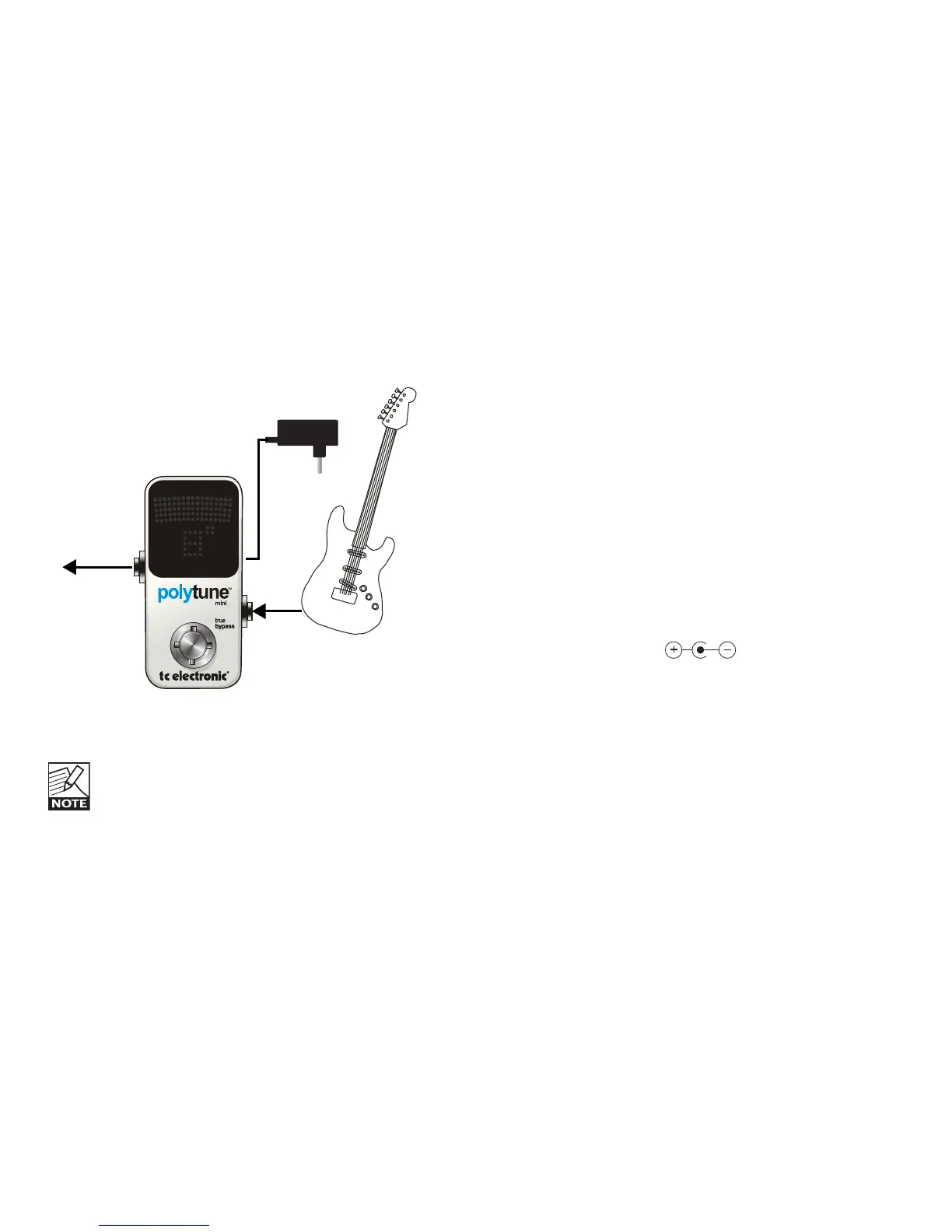

Connecting
Input jack - connect your instrument here using
a 1/4 inch mono jack cable.
Output jack - connect to another pedal or
directly into an amp or mixer. When the tuner is
active the output will be muted for silent tuning.
NoticethatPolyTune
®
Mini is designed with
a true bypass circuit that leaves your beloved
tone unaltered when the tuner is bypassed.
Power in-usea9VDCpowersupplywiththe
following symbol:
PlacePolyTune
®
Mini before drive and distortion pedals for best tuner indication.

TC Electronic PolyTune Mini Specifications

General

Display	LED
Output	1 x 1/4"
Bypass	True Bypass
Type	Polyphonic Tuner
Tuning Modes	Polyphonic, Chromatic
Tuning Range	A0 (27.5 Hz) - C8 (4186 Hz)
Input	1 x 1/4"
Power Supply	9V DC (center negative)
Input Impedance	1 MOhm
Reference Pitch	A4 = 435 to 445 Hz (adjustable)
Output Impedance	100 Ohm
