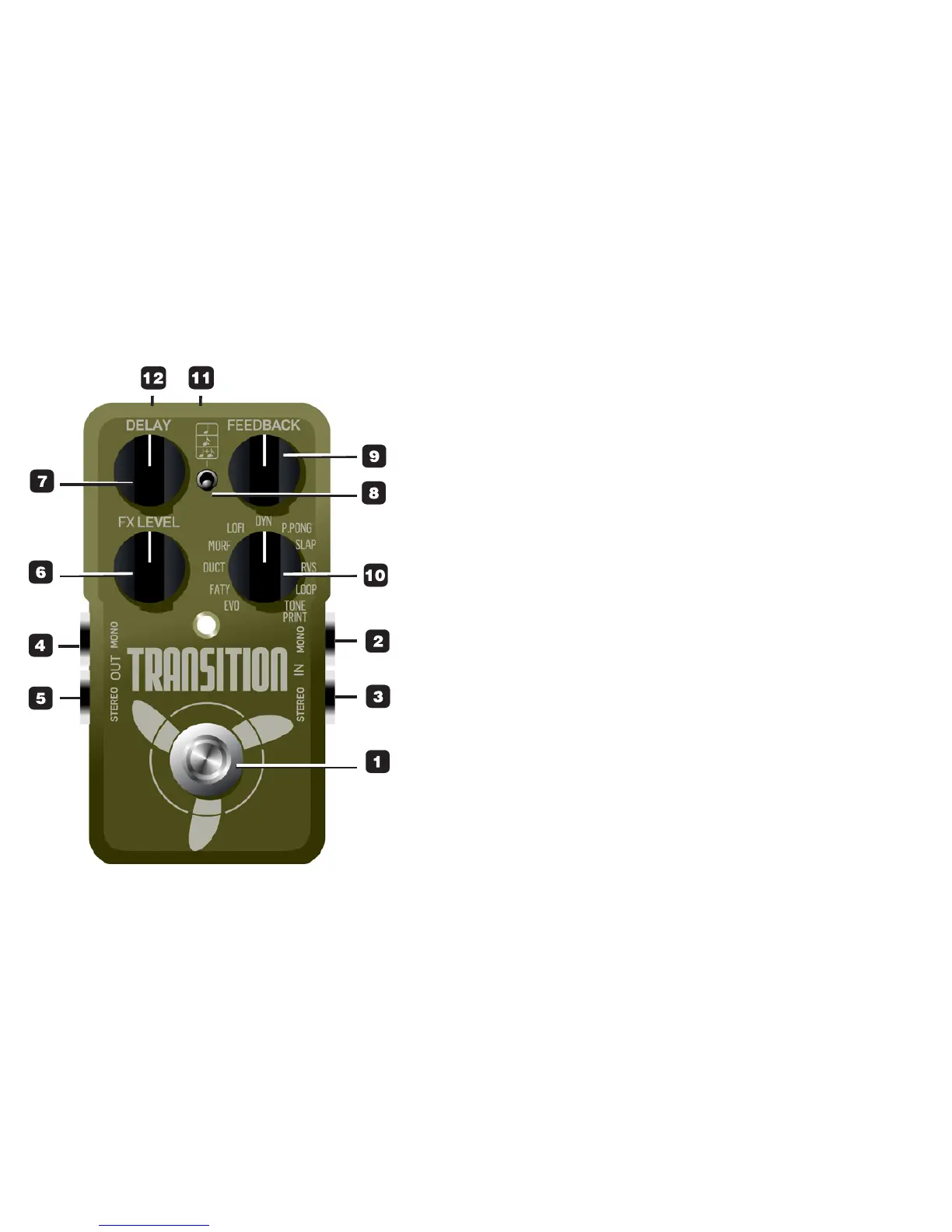

TC Electronic TRaNSITION - Control Panel Layout

5
1 - Effect on/off (true bypass)
2 - 1/4 inch mono jack input
3 - 1/4 inch mono jack input (for stereo in)
4 - 1/4 inch mono jack output
5 - 1/4 inch mono jack output (for stereo out)
6 - FX level control
7 - Delay time control
8 - Subdivision selector
9 - Feedback control
10 - Delay type selector
11 - Power in (9VDC)
12 - USB connection for uploading TonePrint
settings and software updates.
