TC Electronic TRaNSITION User Manual

6

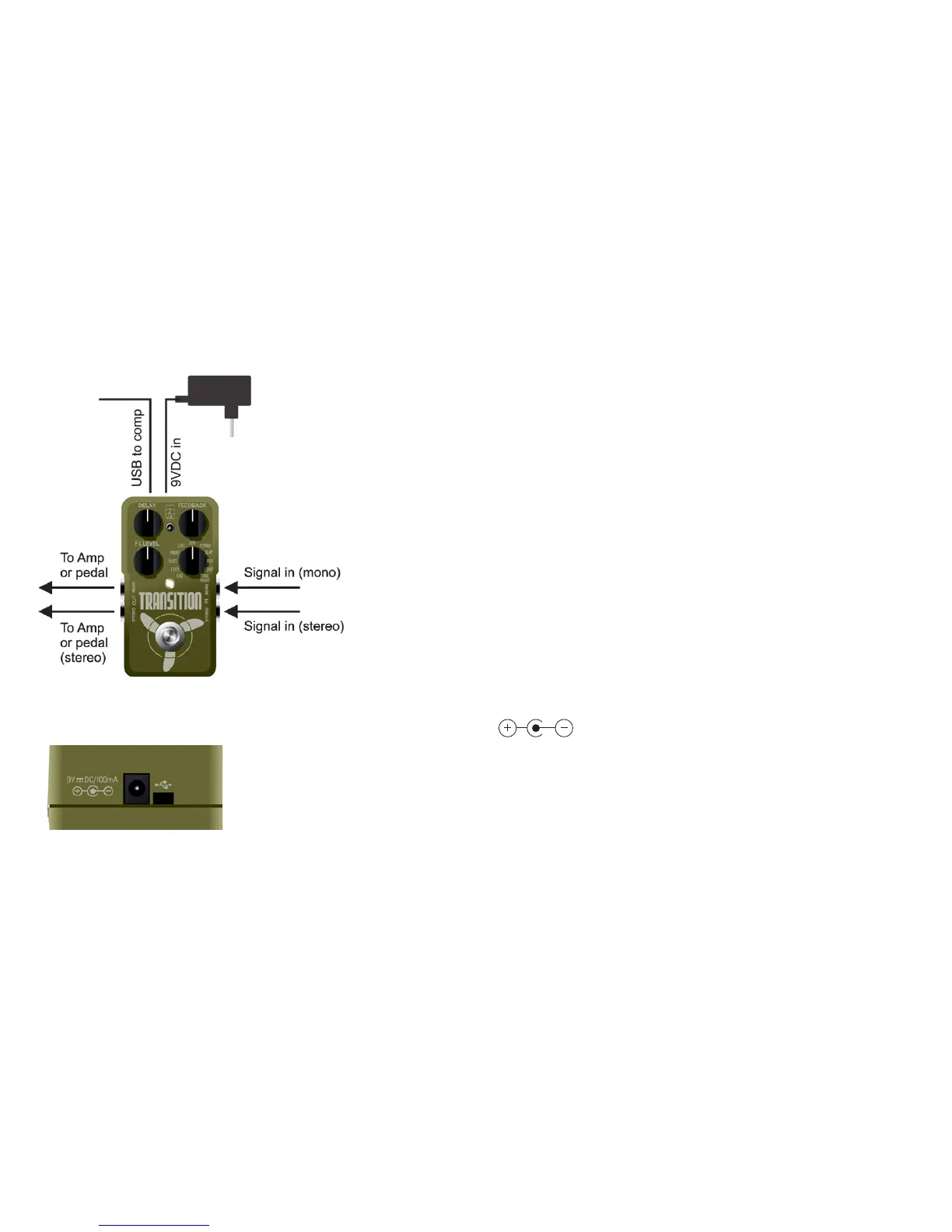

Connecting
Input jacks - Use MONO for mono input and both MONO
andSTEREOinputsifconnectingastereosource.
If the pedal runs on battery, we recommend removing the
mono input jack to preserve battery power when you don’t
play.
Output jacks - Connect to another pedal or directly into
an amp or mixer. Use MONO for mono setups and both
MONOandSTEREOforstereosetups.
Note that it is possible to select between true bypass and
buffered bypass mode via a dip switch located under the
battery cover.
Power in-Usea9VDCpowersupplywiththefollowing
symbol:
USB
Connect to a computer using the supplied USB cable for
upload of TonePrint settings.
Theconnector-typeisMini-B.

TC Electronic TRaNSITION Specifications

General

Brand	TC Electronic
Model	TRaNSITION
Category	Music Pedal
Language	English
