Connections

Notes:

Your TV might not have all connectors visible on diagram above. Number of USB and HDMI ports may vary

according to TV model.

Button and connector locations may vary according to TV model.

USB connectors are for data input from USB drives and for connecting other relevant USB devices where

applicable.

All USB devices have to be directly connected to TV set without cable extenders. In case extender is

required, maximum 50cm length is recommended. Longer extenders should have ferrite beads.

ARC (Audio Return Channel) function is only supported on the HDMI port identied with ARC. To use ARC

function, please turn on T-Link function rst as described in the T-Link section.

It is recommended to use high quality and well shielded HDMI cables to avoid possible interferences.

Please use headphones with 3.5mm TRS connector. Excessive sound pressure from headphones can cause

hearing loss.

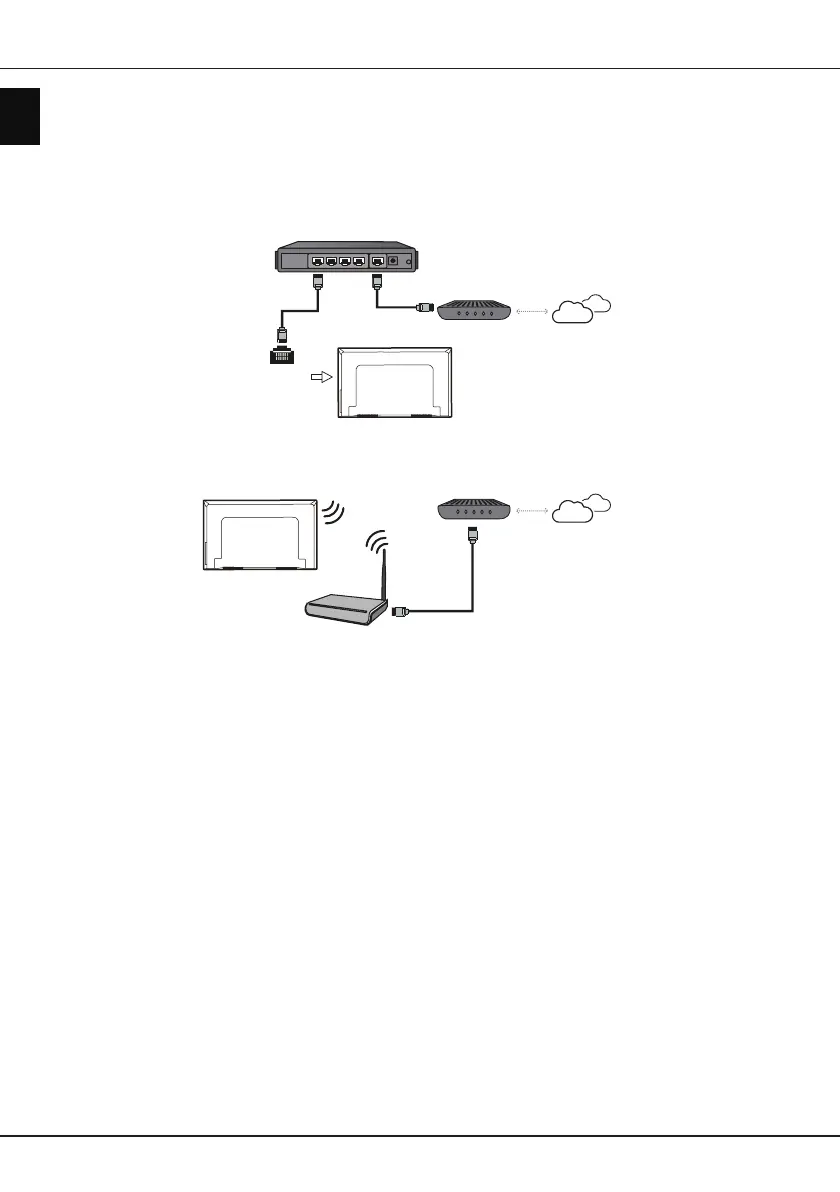

Connect to the Internet

Wired connection

Wireless connection

Router

Modem Internet

LAN port

Modem Internet

Wireless router

Note: The following instructions are just the usual ways to connect your TV to the wired or wireless network.

The connection method may be different depending on your actual network conguration. If you have any

questions about your home network, please refer to your Internet service provider.

Questions and Answers:

Need help?

Do you have a question about the TCL 32ES560 and is the answer not in the manual?

TCL 32ES560 Specifications

General

Screen shape	Flat
Response time	30 ms
Display diagonal	32 \
Display brightness	270 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	60 Hz
Peak luminance ratio	78 %
LED backlighting type	Direct-LED
Supported video modes	768p
Viewable size diagonal	800 mm
Contrast ratio (typical)	-
Display diagonal (metric)	81.3 cm
Motion interpolation technology	PPI (Picture Performance Index) 300
Dynamic contrast ratio marketing name	Mega Contrast
HDMI version	1.4
RF connector type	F, IEC
Common interface (CI)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	T-link
Common interface Plus (CI+) version	1.3
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Video apps	Netflix
Smart modes	Game, Movie, Sports
Lifestyle apps	Google Apps
Operating system version	9.0
Operating system installed	Android
Hybrid Broadcast Broadband TV (HbbTV) version	1.5
Number of OSD languages	29
Firmware upgradeable via	Network, USB
On Screen Display (OSD) languages	ALB, BUL, CRO, CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LAT, LIT, MAC, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, TUR, UKR
Audio decoders	Dolby Digital, Dolby Digital Plus
RMS rated power	10 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (max)	50 W
Power consumption (standby)	0.29 W
Power consumption (typical)	32 W
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth profiles	A2DP, HID
Product color	Black
Mercury content	0 mg
Heavy metals free	Hg (mercury)
Panel mounting interface	100 x 100 mm
Processor cores	4
Audio formats supported	MP3, WMA
Image formats supported	BMP, JPG, PNG
Video formats supported	AVI, H.264, H.265, MKV, MP4, MPEG2, MPG, OGM, TS, VP9, WMV
Picture processing technology	TCL Pure Image Ultra
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Package depth	126 mm
Package height	512 mm
Package weight	5300 g
Remote control type	RC802N1
Certification	CE
Truck type	87 cbm
Pallet width	1200 mm
Pallet height	1164 mm
Pallet weight	107900 g
Pallet net weight	12500 g
Quantity per truck	1188 pc(s)
Quantity per pallet	18 pc(s)
Number of pallets per truck	66 pc(s)
Maximum number of stacking cartons	5 pc(s)

Weight and Dimensions

Depth (with stand)	175 mm
Height (with stand)	480 mm
Weight (with stand)	4000 g
Depth (without stand)	80 mm
Width (without stand)	732 mm
Height (without stand)	435 mm
Weight (without stand)	3900 g
