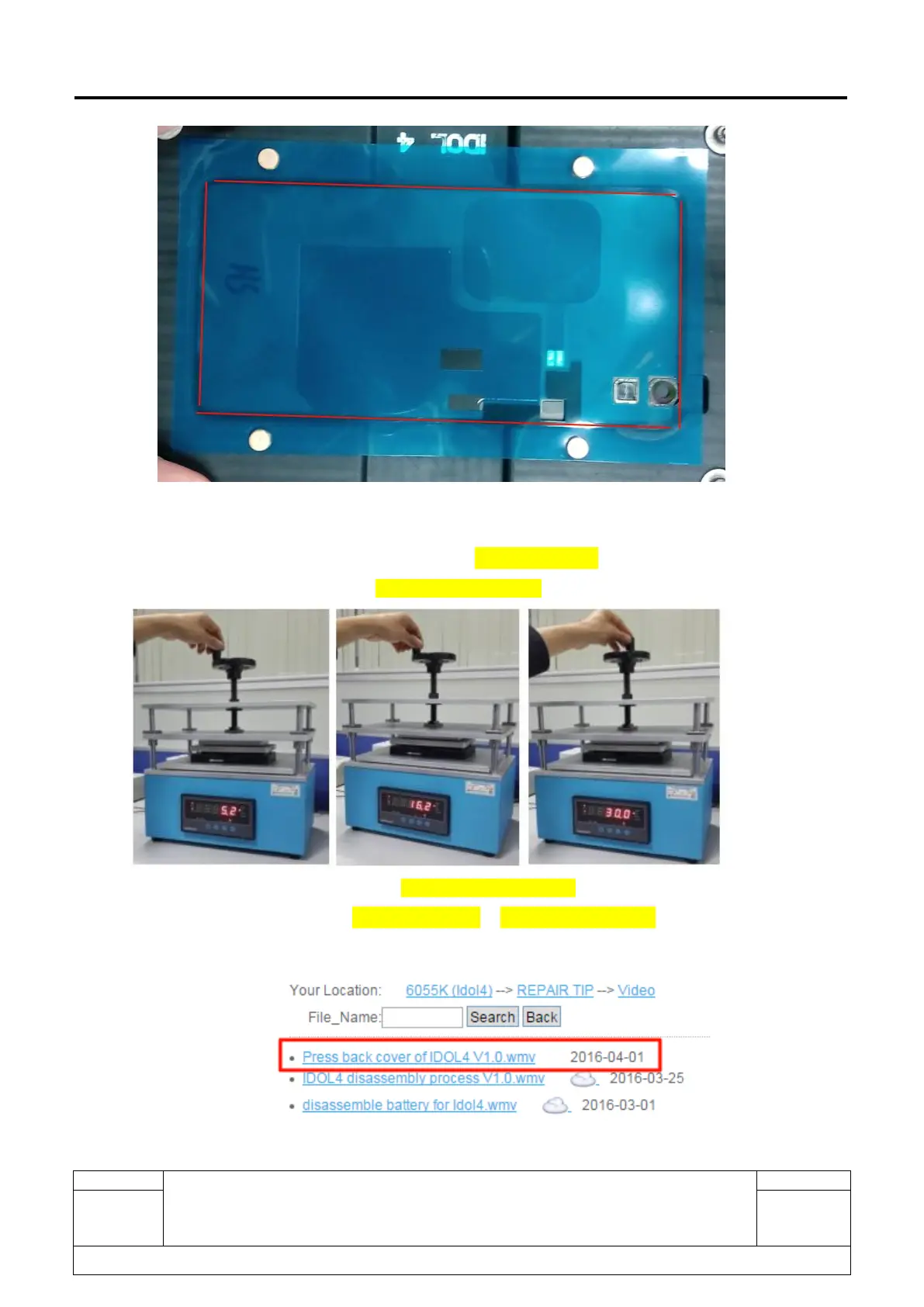

 Assemble the back cover with the JIG (PN: WAA00002U002), it is same with the JIG for Go
Play, but use different module(PN: WAA3630TG001) for Idol4,
(pressure:48KG, time:7S)
For detail usage of the JIG(PN: WAA00002U002 & PN: WAA363063002 ), please refer to the Video
“Press back cover of IDOL4 V1.0.wmv” on CSS
