TCL Alcatel Idol4 Repair Document

L2 Repair Document TCL Communication Ltd.
Rev.
ONE TOUCH 6055K/P/Y/B/H Level 2 Repair Document
Page
1.0
42/61
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
155
,BTB
Connector(Socket)
板对板连接器(插座),BTB
Connector(Socket),Over PCB,10
PINs,0.35 mm,5.25×2.3×0.8 mm,W/O
POST+W/O DIP,N/A,BM24-10DS/2-
0.35V(51),HRS
ARC0100011C1
1
not open in
folog
156
,BTB
Connector(Socket)
板对板连接器(插座),BTB
Connector(Socket),OVER PCB,10.0
PINs,0.40 mm,4.6X2.2XH0.9mm,W/O
POST+W/O
DIP,N/A,245804010000829+,KYOCERA
ARC0100002C1
3
not open in
folog
201
BTB
Connector(Socket),
板对板连接器(插座),BTB
Connector(Socket),OVER PCB,30.0
PINs,0.40 mm,8.6x4.2xH0.9mm,W/O
POST+W/O
DIP,N/A,245804030000829+,KYOCERA
ARC0300004C1
2
open on safe
area
on main
PCBA(2pcs).

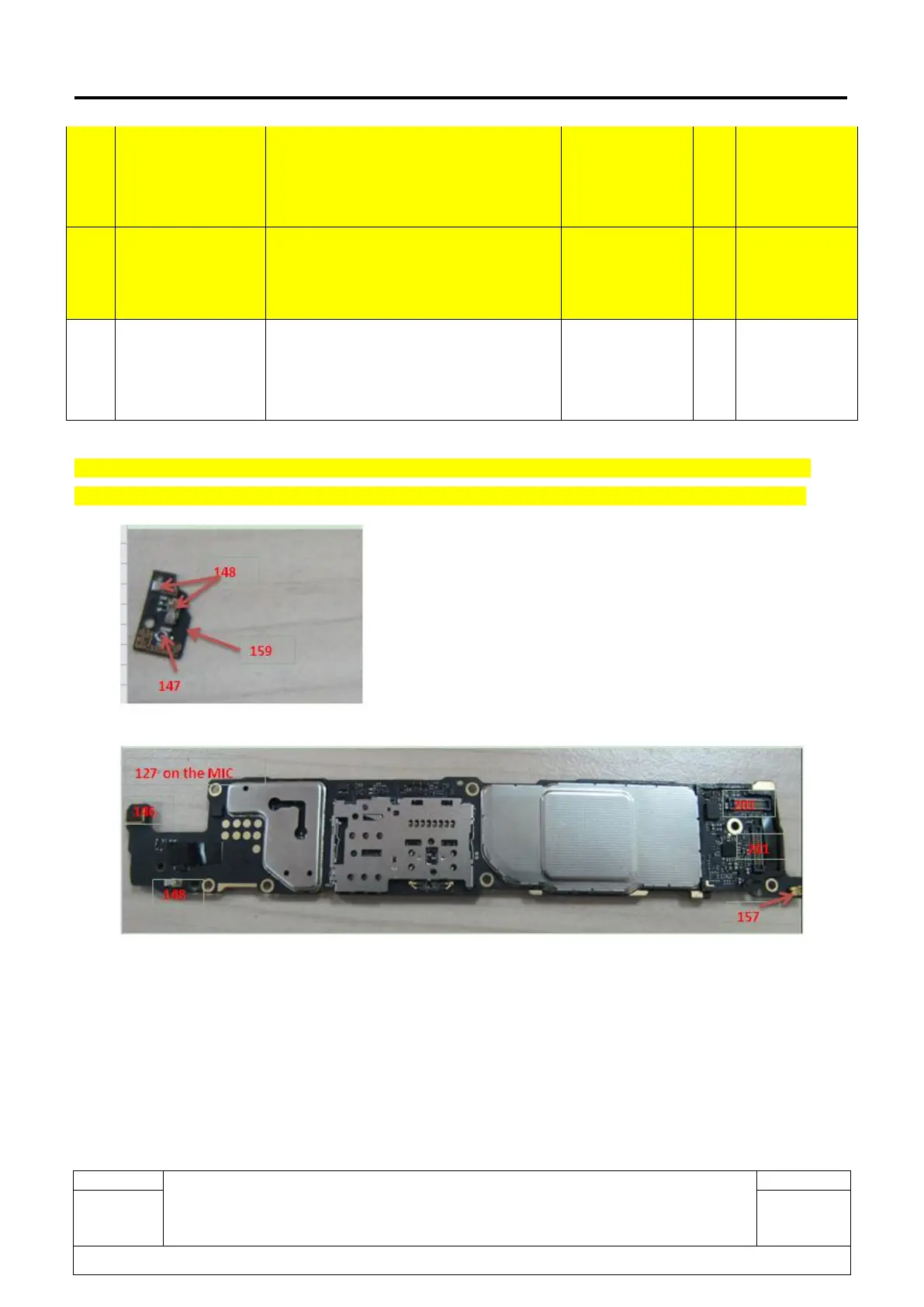

However, there are also same components on the Sub PCBA and the back side of main PCBA can be
repaired, for item 147,148 on the sub PCBA, and item 201 on the main PCBA, which can be repaired:
