L2 Repair Enhance Document TCL Communication Ltd.
ONE TOUCH 6055K/P/Y/B/H Level 2 Enhance Repair Document
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
7 Level 2 Enhance repair
Before performing the following troubleshooting operations, please make sure the software of the
device is in good condition and restored to default settings.
7.1 Position of L2 enhance components on main PCBA and sub PCBA

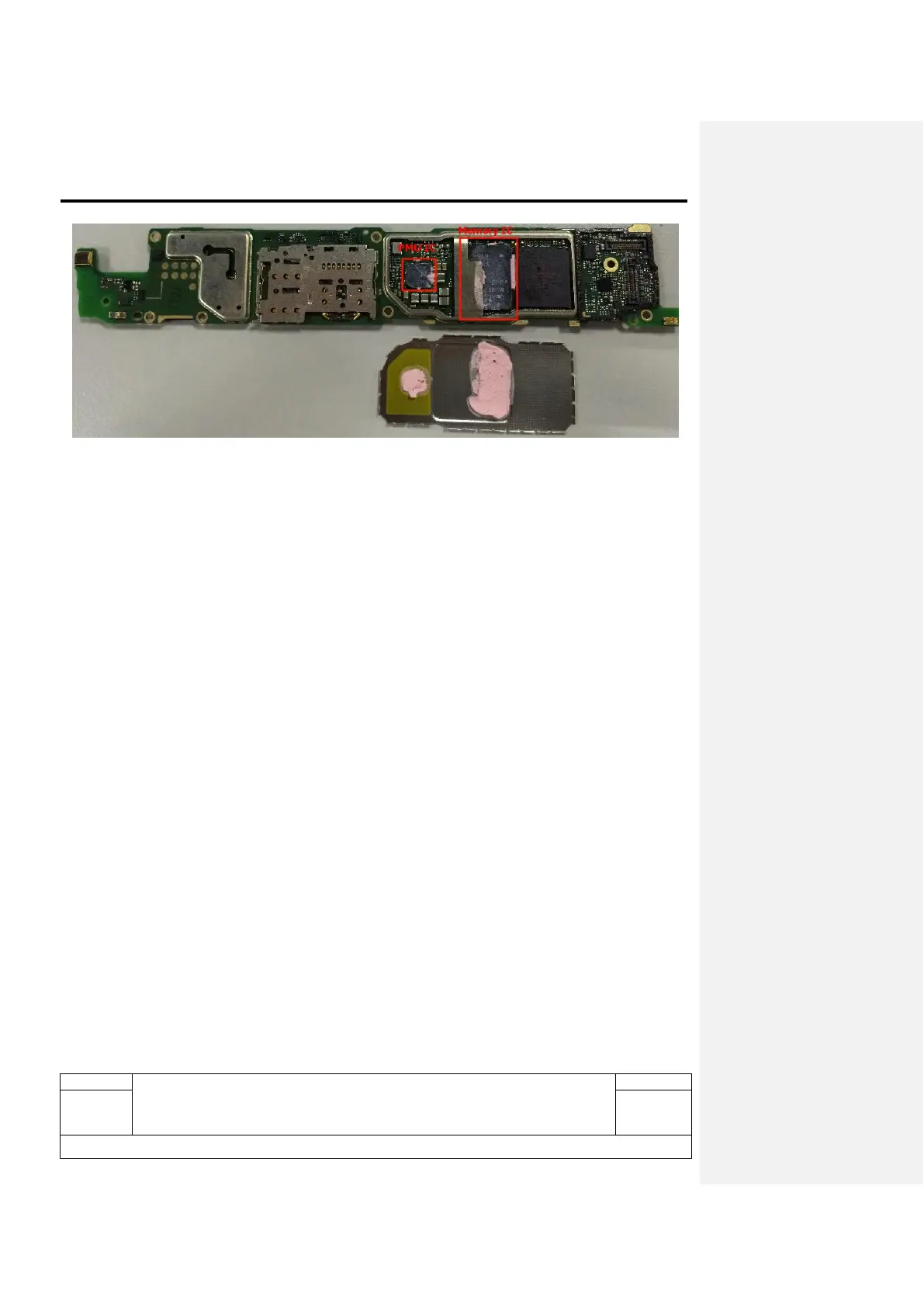

ļTop side of main PCBA
