TCL L49E7800UDS User Manual

Date
2013/12/2
Page 12
- 1 -
- 1 -
Index
Draft
of 12 Pages
Name
MS1369K-LA is designed for LA Google TV, Dual core CPU and Four core GPU, using Android 4.0 OS and
UI 5.0 interface, ore based on intelligent digital cloud TV before increasing the MHL, WIDI and
USB3.0. Support mouse RCU, built-in WIFI and 3D function.
1 Power supply
The Standard Power supply related to All the Models is +24V and +3.3V for the Main BD.
The signal of POWER_ON enables the +24V and the other Voltages as well.
 If POWER_ON signal = 0V, +24V and the others are not available.
 If POWER_ON signal = 3.3V, +24V and the other are available.
2 ELECTRICAL TEST
2.1 Abbreviations
HD
High Definition
SD
Standard Definition
VGA
Video Graphic Array
VESA
Video Electronics Standards Association
RC
Remote Control
TBD
To be determined

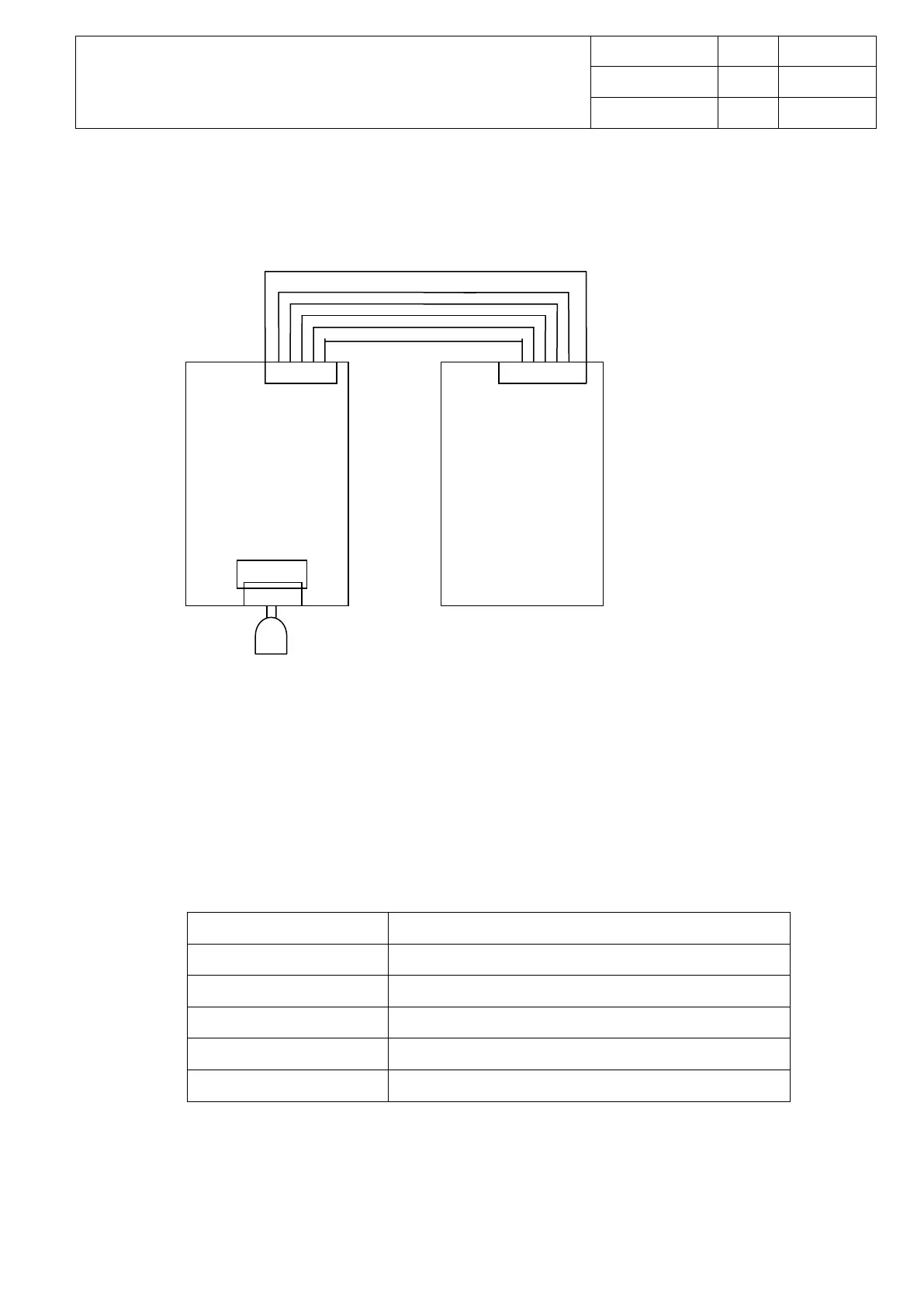

POWER BD.
1.1.1.1.1.1.1 M
A
I
N
B
O
A
R
D
P001
+3.3V_STB
GND for +3V_STB
+12V Or +24V
GND for +12V
POWER_ON
Main BD(MS1369)
BLON/OFF;PW_DIM
AC IN
Mains
120VAC

TCL L49E7800UDS Specifications

General

Brand	TCL
Model	L49E7800UDS
Category	TV
Language	English
