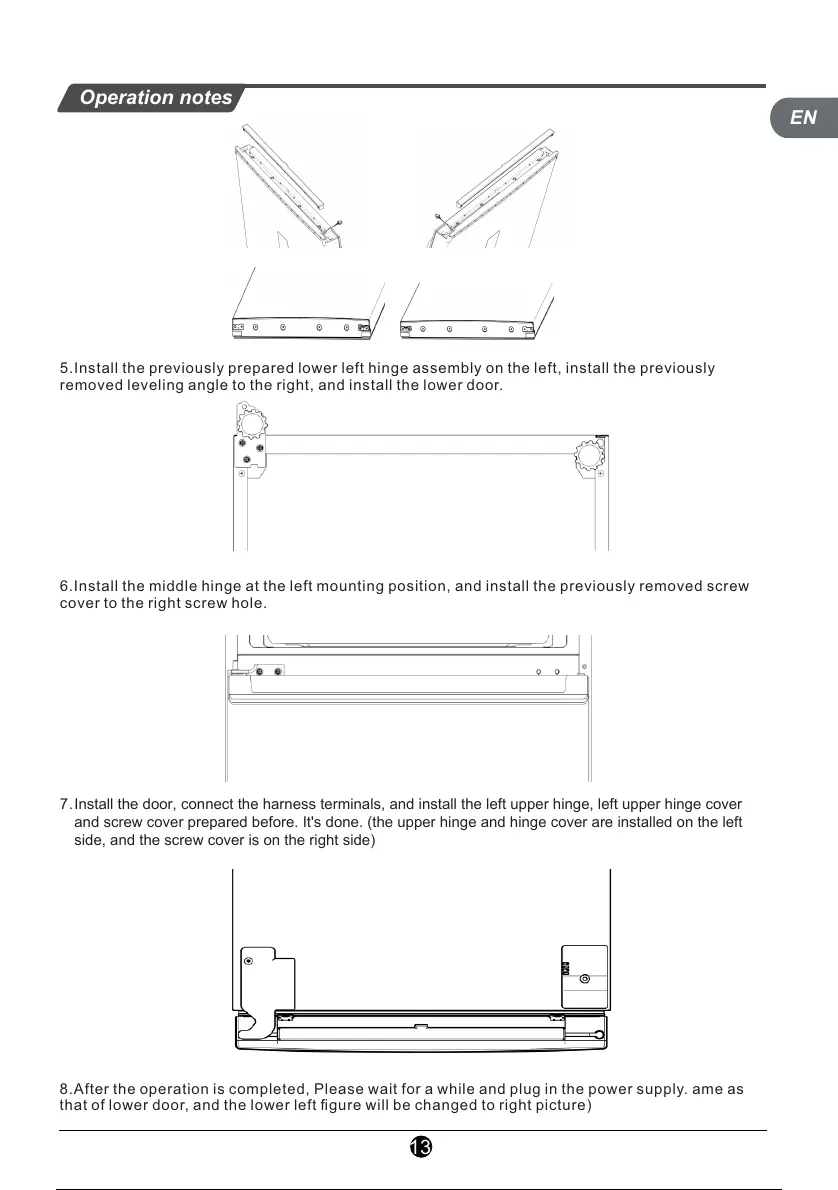

5.Install the previously prepared lower left hinge assembly on the left, install the previously
removed leveling angle to the right, and install the lower door.
6.Install the middle hinge at the left mounting position, and install the previously removed screw
cover to the right screw hole.
7.
Install the door, connect the harness terminals, and install the left upper hinge, left upper hinge cover
and screw cover prepared before. It's done. (the upper hinge and hinge cover are installed on the left
side, and the screw cover is on the right side)
8.After the operation is completed, Please wait for a while and plug in the power supply. ame as
that of lower door, and the lower left figure will be changed to right picture)
Operation notes
