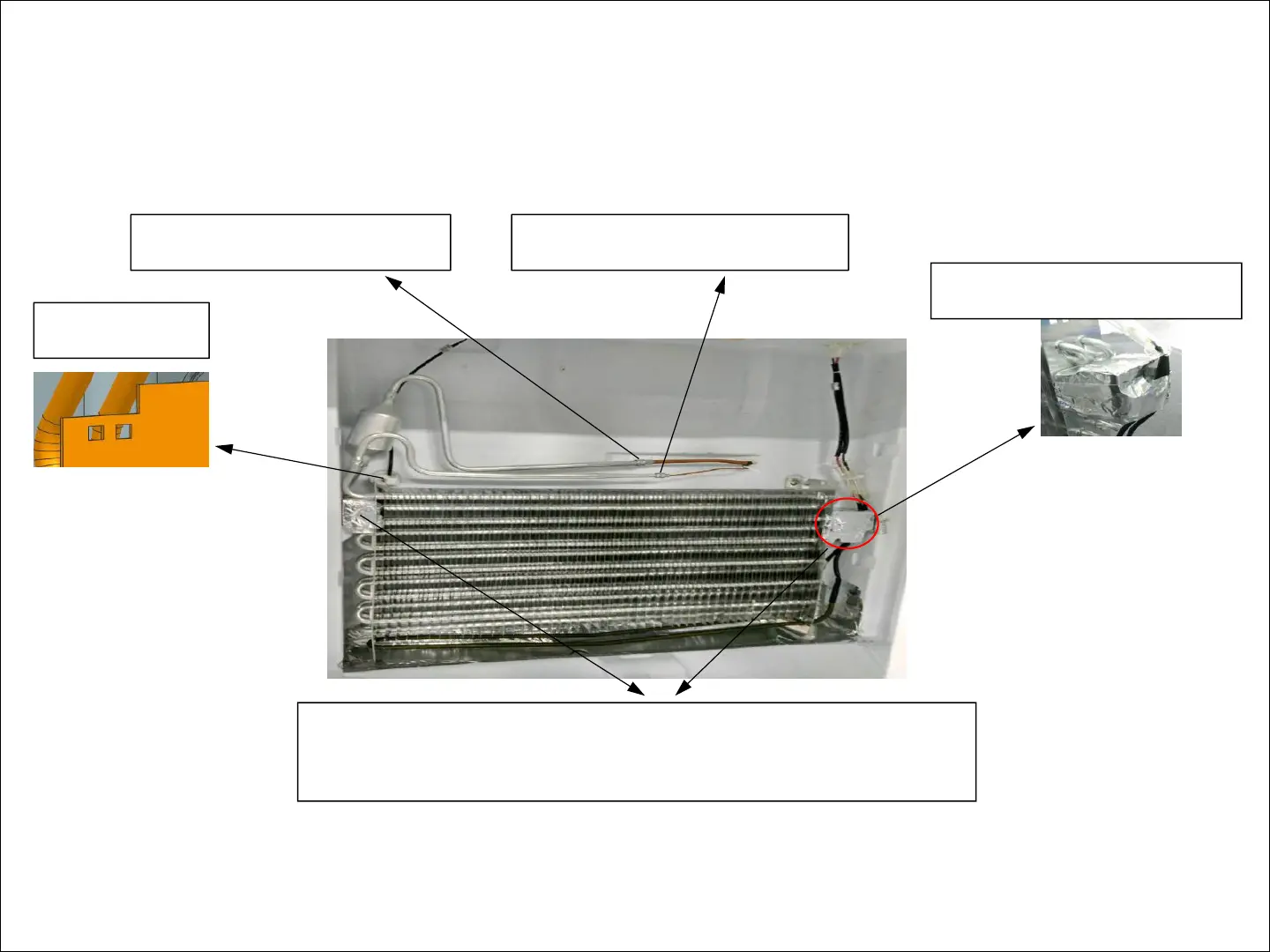

Schematic diagram of freezer compartment
Fixed position of
defrost sensor
Connecting pipe for capillary tube at
evaporator inlet
Connecting pipe for return pipe at
evaporator outlet
The position where evaporator foams are fixed, in the second row from
bottom up on the left and the second row from bottom up on the right
respectively. When fixing the foam, the aluminum foil cannot be attached to
the fins but only to the baffle plate.
Wrap the foam fixing block with
aluminum foil.
