5
Disassembly Guide

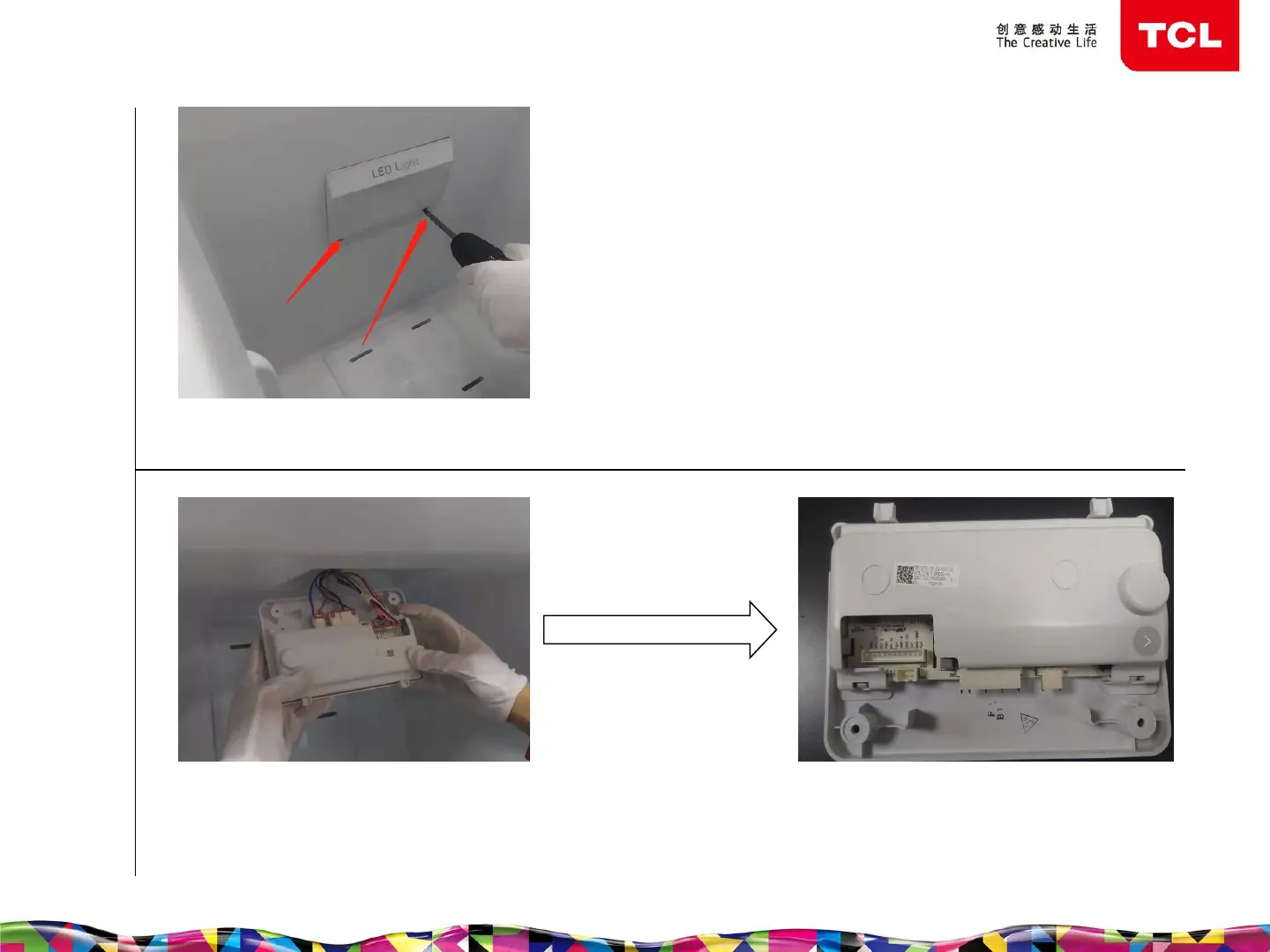

Disassembly of the top light
Step II: Pull down the top light from the rear
as shown in the figure, and unplug the 4
connecting terminals
Step I: Remove the 2 screws at the rear
of the assembly
State after the disassembly
