Disassembly Guide

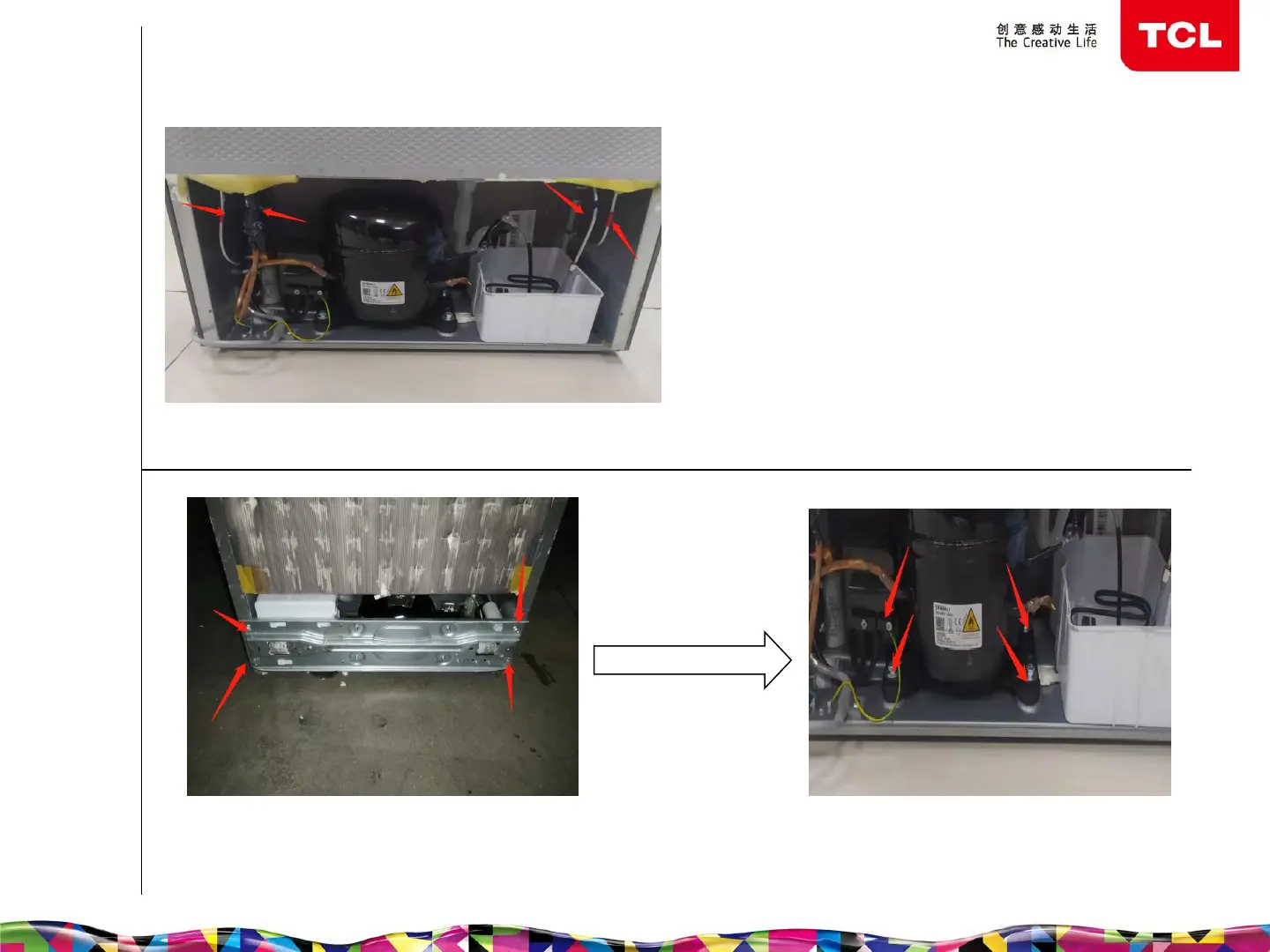

Disassembly of compressor chamber

Step I: Use pincer pliers to cut off all the high and low

pressure pipelines of the compressor chamber;

Step II: Use an 8mm sleeve and a Phillips

screwdriver to loosen four fixing screws on the

bottom of the compressor, and then remove the

compressor floor;

Step III: Use an 8mm sleeve and a Phillips

screwdriver to remove fixing screws on the

bottom of the compressor, and finally

remove the compressor;
