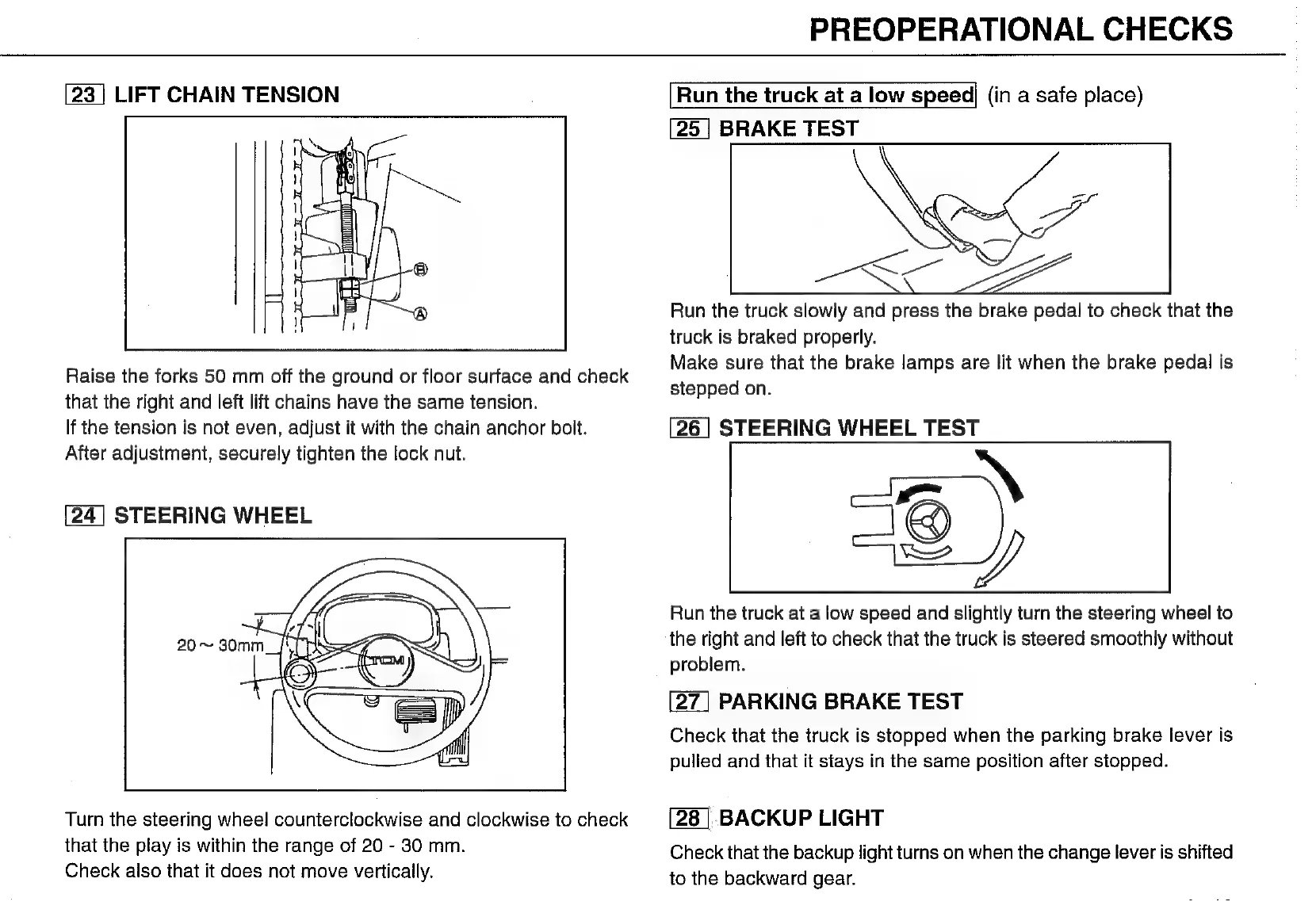

[23] LIFT CHAIN TENSION
Raise the forks 50 mm off the ground or floor surface and check
that the right and left lift chains have the same tension.
If the tension is not even, adjust it with the chain anchor bolt.
After adjustment, securely tighten the lock nut.
STEERING WHEEL
20~ 30mm
Turn the steering wheel counterclockwise and clockwise to check
that the play is within the range of 20 - 30 mm.
Check aiso that it does not move vertically.
PREOPERATIONAL CHECKS
[Run the truck at a low speed] (in a safe place)
[25 | BRAKE TEST
N ^
m ағы
Run the truck slowly and press the brake pedal to check that the
truck is braked properly.
Make sure that the brake lamps are lit when the brake pedal is
Stepped on.
STEERING WHEEL TEST
Run the truck at a low speed and slightly turn the steering wheel to
the right and left to check that the truck is steered smoothly without
problem.
[27] PARKING BRAKE TEST
Check that the truck is stopped when the parking brake lever is
pulled and that it stays in the same position after stopped.
(28 | BACKUP LIGHT
Check that the backup light turns on when the change lever is shifted
to the backward gear.
