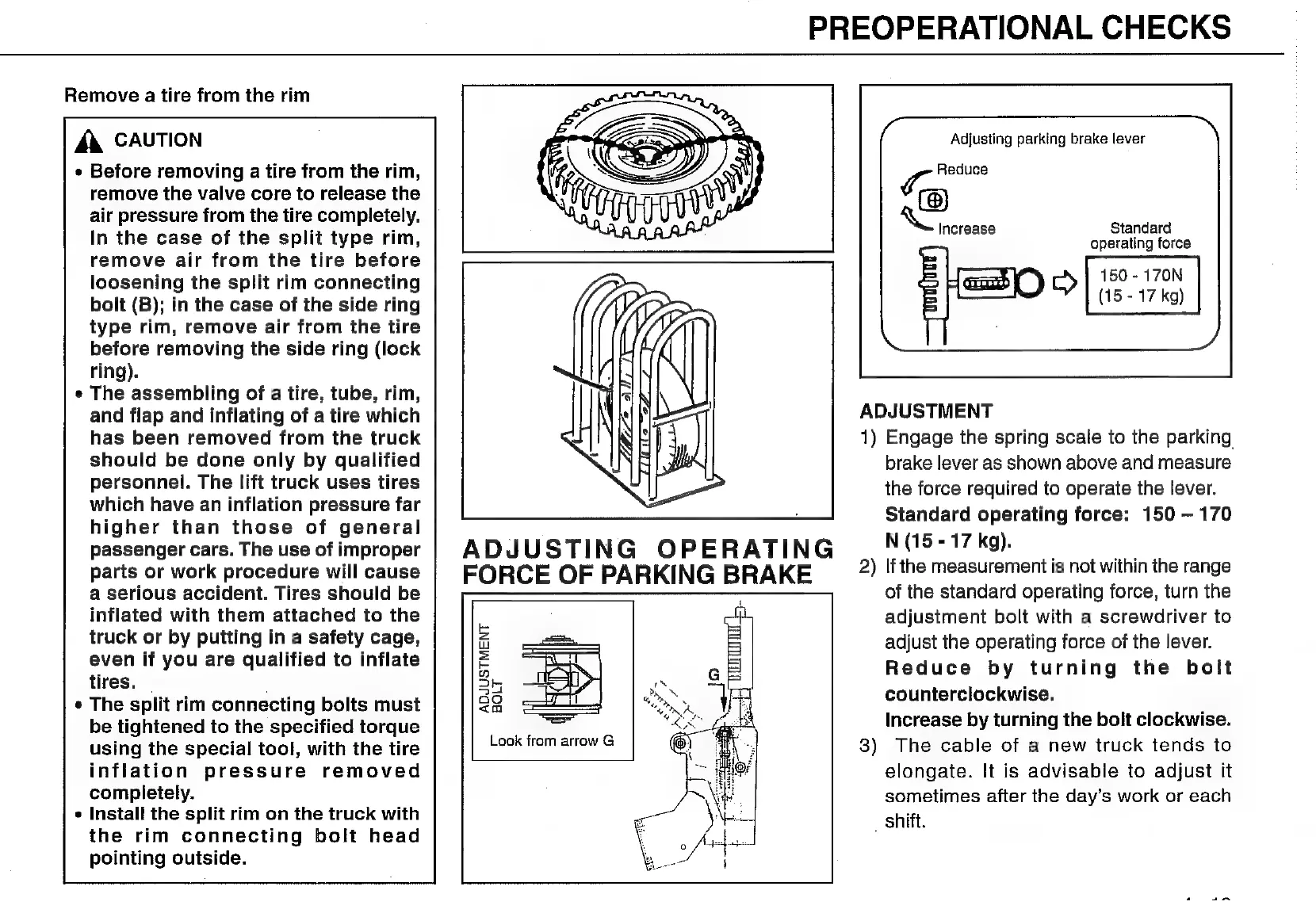

TCM FB10-7 - Page 104

Remove а tire from the rim
A CAUTION
* Before removing a tire from the rim,
remove the valve core to release the
air pressure from the tire completely.
In the case of the split type rim,
remove air from the tire before
loosening the split rim connecting
bolt (B); in the case of the side ring
type rim, remove air from the tire
before removing the side ring (lock
ring).
The assembling of a tire, tube, rim,
and flap and inflating of a tire which
has been removed from the truck
should be done only by qualified
personnel. The lift truck uses tires
which have an inflation pressure far
higher than those of general
passenger cars. The use of improper
parts or work procedure will cause
a serious accident. Tires should be
inflated with them attached to the
truck or by putting in a safety cage,
even if you are qualified to inflate
tires.
The split rim connecting bolts must
be tightened to the specified torque
using the special tool, with the tire
inflation pressure removed
completely.
* Install the split rim on the truck with
the rim connecting bolt head
pointing outside.
PREOPERATIONAL CHECKS
Adjusting parking brake lever
Heduce
Increase Standard
operating force
с» 150 - 170N
(15 - 17 kg)
ADJUSTMENT
1) Engage the spring scale to the parking
brake lever as shown above and measure
the force required to operate the lever.
Standard operating force: 150 — 170
ADJUSTING
OPERATING
N
(15
-
17
kg).
|
(е
FORCE
OF
PARKING
BRAKE
2)
Ifthe
measurement
is
not
within
the
range
ADJUSTMENT
Look from arrow G
of the standard operating force, turn the
adjustment bolt with a screwdriver to
adjust the operating force of the lever.
Reduce by turning the bolt
counterclockwise.
Increase by turning the boit clockwise.
3) The cable of a new truck tends to
elongate. It is advisable to adjust it
sometimes after the day's work or each
. shift.
