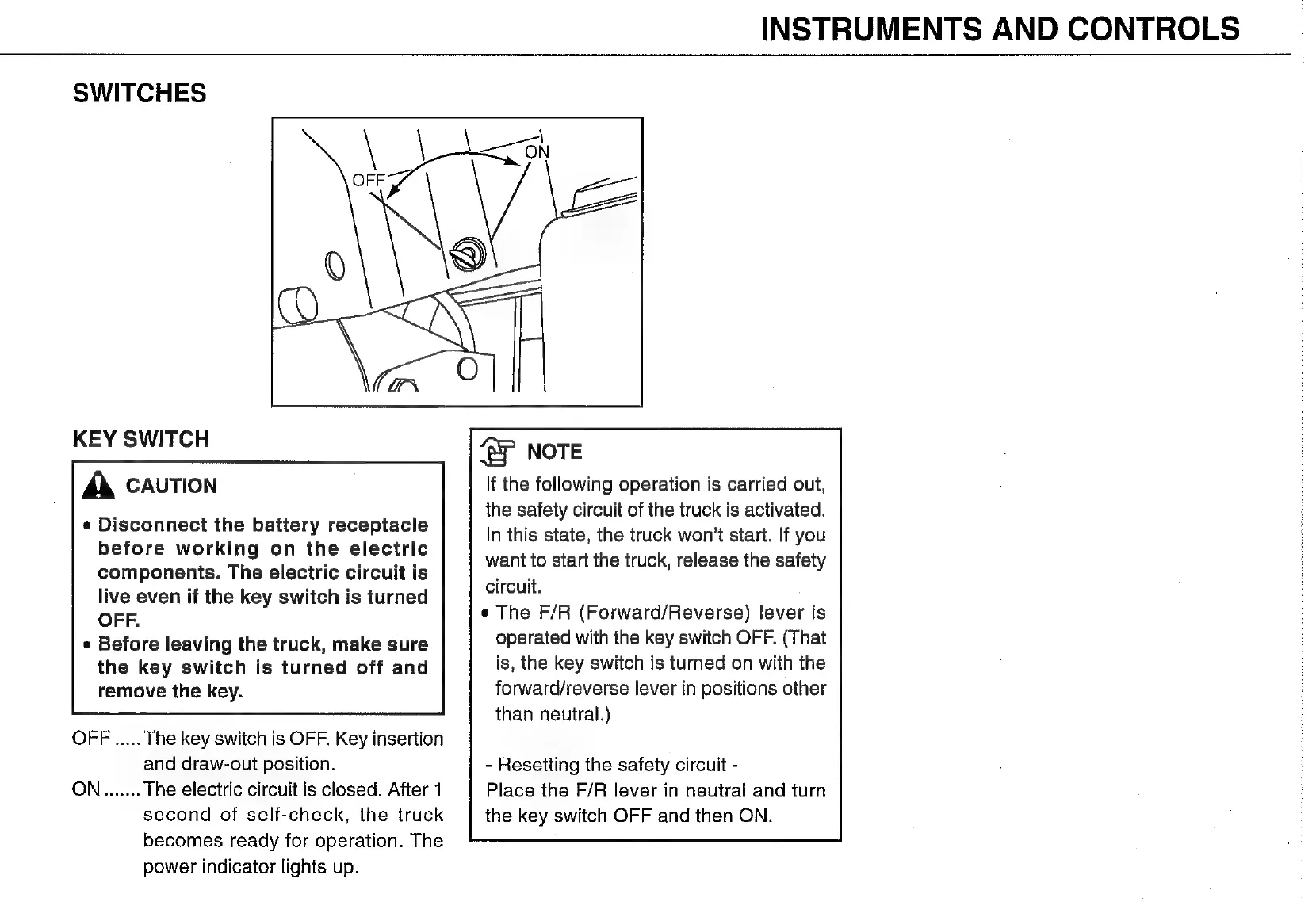

TCM FB10-7 - SWITCHES

INSTRUMENTS AND CONTROLS
SWITCHES
KEY SWITCH
If the following operation is carried out,
the safety circuit of the truck is activated.
In this state, the truck won't start. If you
want to start the truck, release the safety
circuit.
“Тһе F/R (Forward/Reverse) lever is
A CAUTION
ғ Disconnect the battery receptacle
before working on the electric
components. The electric circuit is
live even if the key switch is turned
OFF.
* Before leaving the truck, make sure
the key switch is turned off and
remove the key.
operated with the key switch OFF. (That
is, the key switch is turned on with the
forward/reverse lever in positions other
than neutral.)
OFF ..... The key switch is OFF. Key insertion
and draw-out position. - Resetting the safety circuit -
ON....... The electric circuit is closed. After 1 Place the F/R lever in neutral and turn
second of self-check, the truck the key switch OFF and then ON.
becomes ready for operation. The
power indicator lights up.
