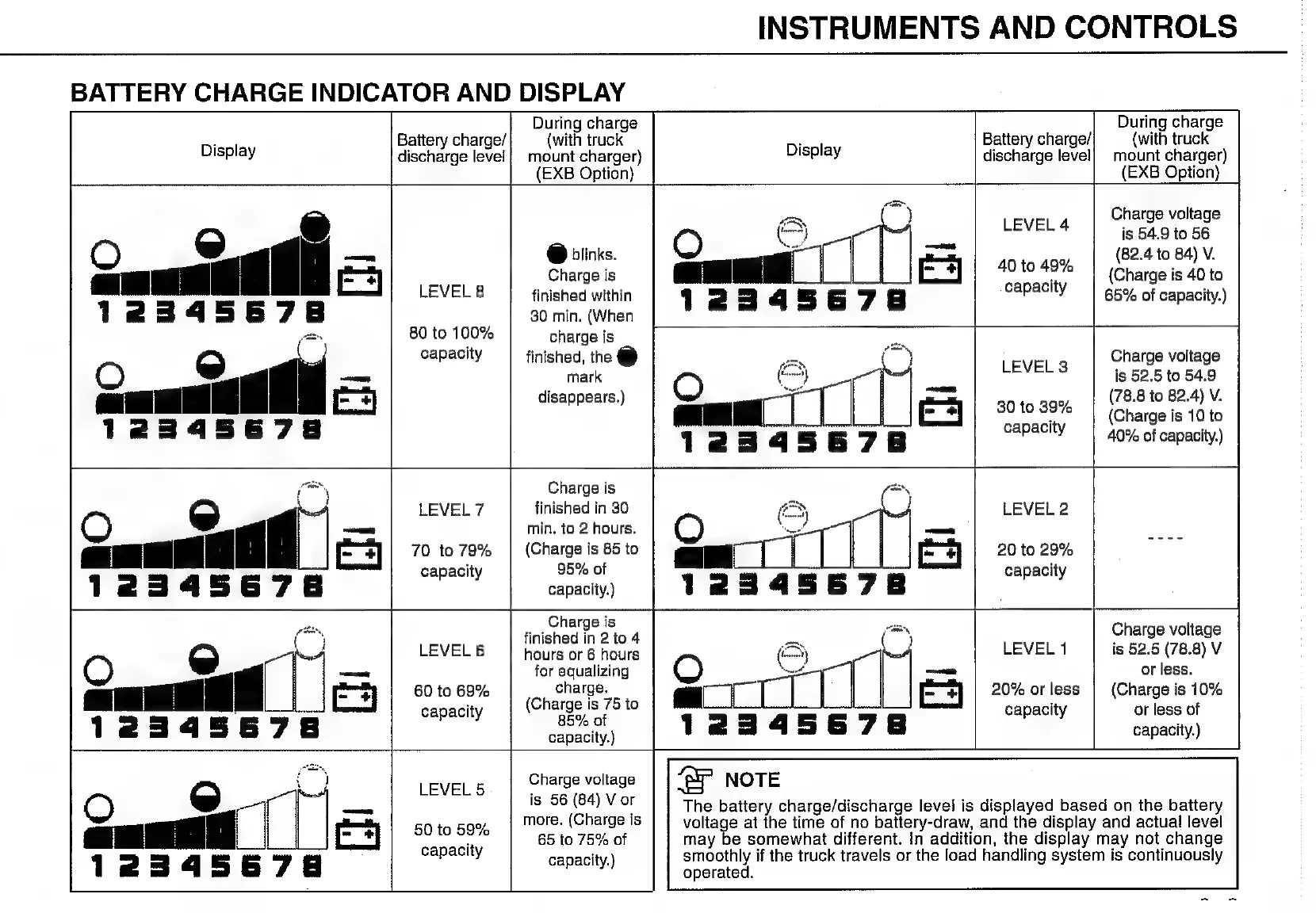

TCM FB10-7 - BATTERY CHARGE INDICATOR AND DISPLAY

BATTERY CHARGE INDICATOR AND DISPLAY
Display
Battery charge/
discharge level
During charge
(with truck
mount charger)
(EXB Option)
INSTRUMENTS AND CONTROLS
Battery charge/
discharge level
During charge
(with truck
mount charger)
(EXB Option)
LEVEL 8
80 to 100%
capacity
LEVEL 7
70 to 79%
capacity
@ blinks.
Charge is
finished within
30 min. (When
charge is
finished, the @
mark
disappears.)
Charge is
finished in 30
тїп. to 2 hours.
(Charge is 85 to
95% of
capacity.)
LEVEL 4
40 to 49%
capacity
Charge voltage
is 54.9 to 56
(82.4 to 84) V.
(Charge is 40 to
65% of capacity.)
LEVEL 3
30 to 39%
capacity
LEVEL 2
20 to 29%
capacity
LEVEL 6
60 to 69%
capacity
Charge is
finished in 2 to 4
hours or 6 hours
for equalizing
charge.
(Charge is 75 to
85% of
capacity.)
LEVEL 5
50 to 59%
capacity
Charge voltage
is 56 (84) V or
more. (Charge is
65 to 75% of
capacity.)
12345678
LEVEL 1
20% or less
capacity
Charge voltage
is 52.5 to 54.9
(78.8 to 82.4) V.
(Charge is 10 to
40% of capacity.)
Charge voltage
is 52.5 (78.8) V
or less.
(Charge is 10%
or less of
capacity.)
The battery charge/discharge levei is displayed based on the battery
voltage at the time of no battery-draw, and the display and actual level
may be somewhat different. In addition, the display may not change
smoothly if the truck travels or the load handling system is continuously
operated.
