TCM FB10-7 - LEVERS AND PEDALS

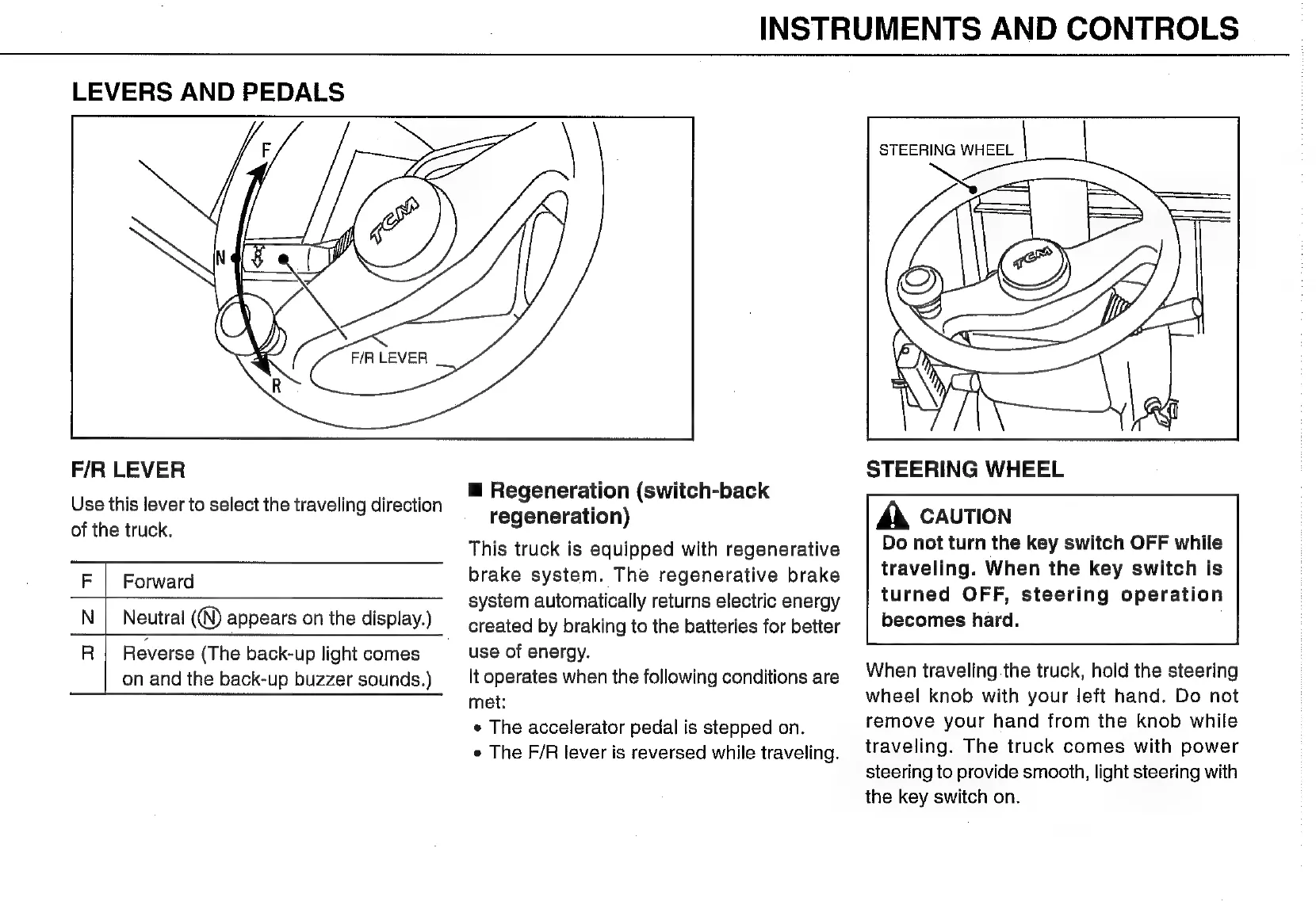

LEVERS AND PEDALS
INSTRUMENTS AND CONTROLS
F/R LEVER
Use this lever to select the traveling direction
of the truck.
Forward
Neutral (O) appears on the display.)
R | Reverse (The back-up light comes
on and the back-up buzzer sounds.)
E Regeneration (switch-back
regeneration)
This truck is equipped with regenerative
brake system. The regenerative brake
system automatically returns electric energy
created by braking to the batteries for better
use of energy.
It operates when the following conditions are
met:
• The accelerator pedal is stepped on.
• The F/R lever is reversed while traveling.
STEERING WHEEL
STEERING WHEEL
A CAUTION
Do not turn the key switch OFF while
traveling. When the key switch is
turned OFF, steering operation
becomes hard.
When traveling.the truck, hold the steering
wheel knob with your left hand. Do not
remove your hand from the knob while
traveling. The truck comes with power
steering to provide smooth, light steering with
the key switch on.
