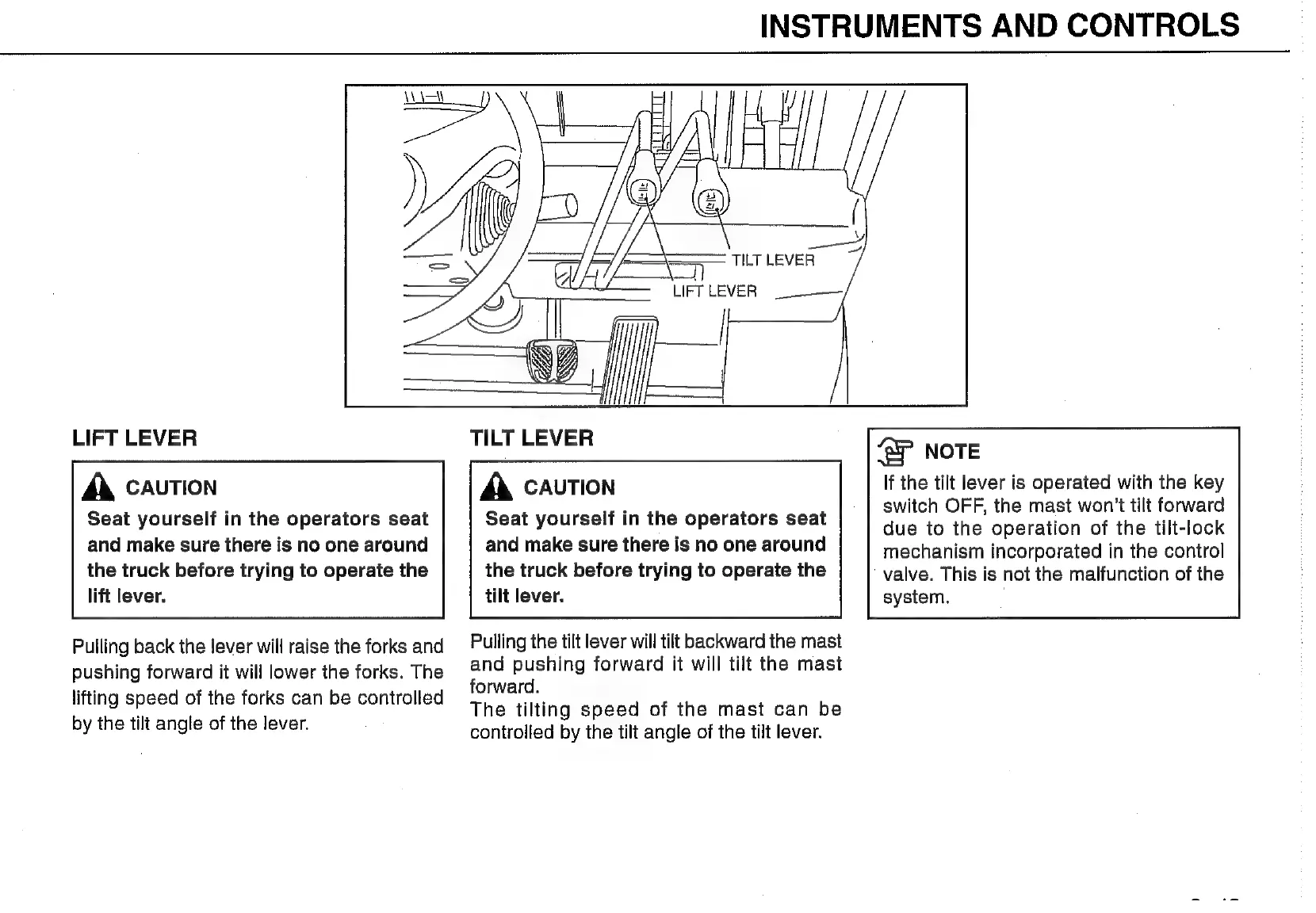

INSTRUMENTS AND CONTROLS
//
TILT LEVER
A]
LIFT LEVER ||| ———
LIFT LEVER
A CAUTION
Seat yourself in the operators seat
and make sure there is no one around
the truck before trying to operate the
lift lever.
Pulling back the lever will raise the forks and
pushing forward it will lower the forks. The
lifting speed of the forks can be controlled
by the tilt angle of the lever.
[
f
TILT LEVER ^ NOTE
If the tilt lever is operated with the key
A CAUTION
switch OFF, the mast won't tilt forward
Seat yourself in the operators seat
due to the operation of the tilt-lock
mechanism incorporated in the control
valve. This is not the malfunction of the
system. |
and make sure there is no one around
the truck before trying to operate the
tilt lever.
Pulling the tilt lever will tilt backward the mast
and pushing forward it will tilt the mast
forward.
The tilting speed of the mast can be
controlled by the tilt angle of the tilt lever.
