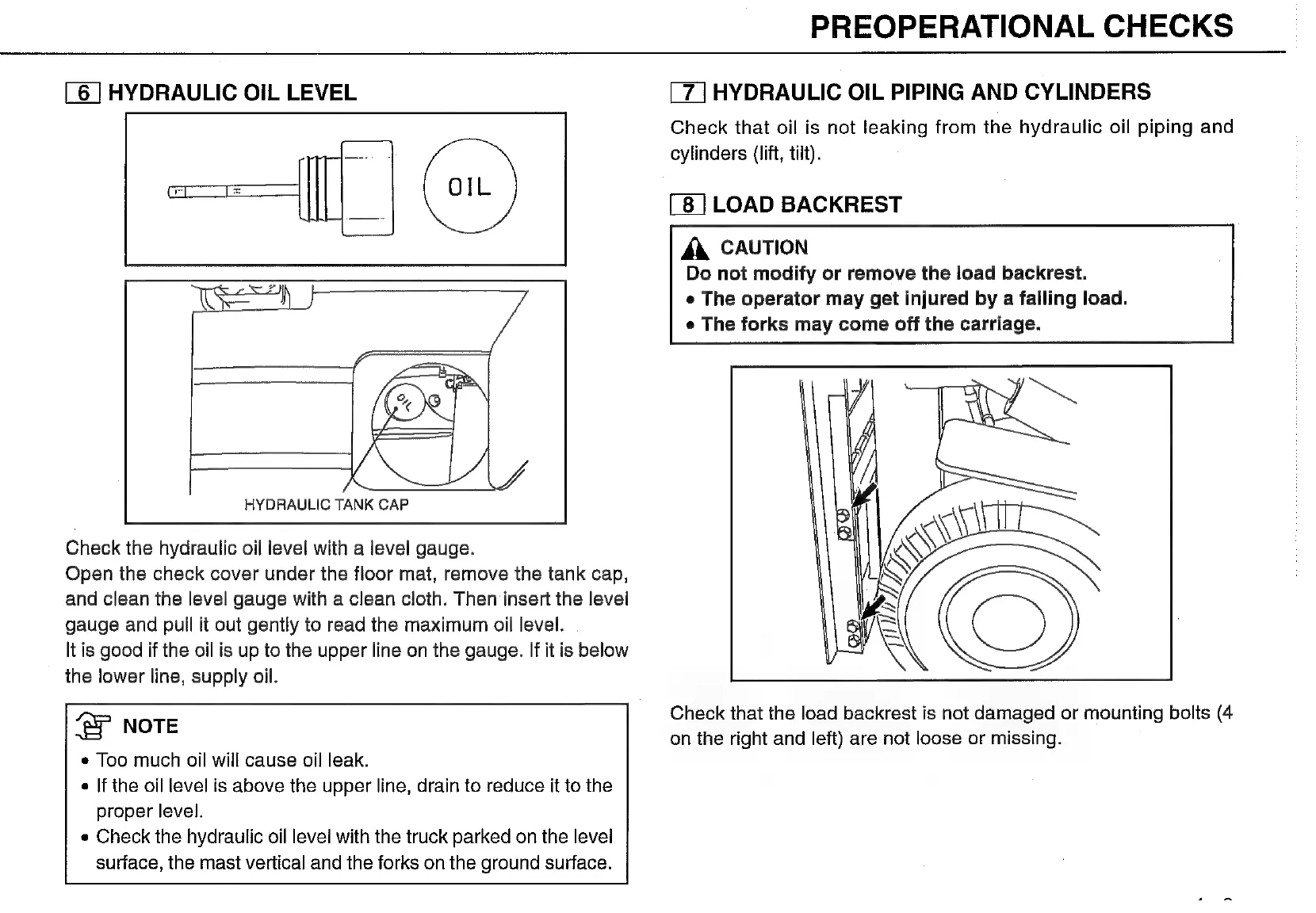

[6] HYDRAULIC OIL LEVEL
HYDRAULIC TANK CAP
Check the hydraulic oil level with a level gauge.
Open the check cover under the floor mat, remove the tank cap,
and clean the level gauge with a clean cloth. Then insert the level
gauge and pull it out gently to read the maximum oil level.
It is good if the oil is up to the upper line on the gauge. If it is below
the lower line, supply oil.
^P NOTE
* Too much oil will cause oil leak.
e |f the oil level is above the upper line, drain to reduce it to the
proper level.
• Check the hydraulic oil level with the truck parked on the level
suríace, the mast vertical and the forks on the ground surface.
PREOPERATIONAL CHECKS
7 | HYDRAULIC OIL PIPING AND CYLINDERS
Check that oil is not leaking from the hydraulic oil piping and
cylinders (lift, tiit).
LOAD BACKREST
A CAUTION
Do not modify or remove the load backrest.
e The operator may get injured by a falling load.
e The forks may come off the carriage.
Check that the load backrest is not damaged or mounting bolts (4
on the right and left) are not loose or missing.
