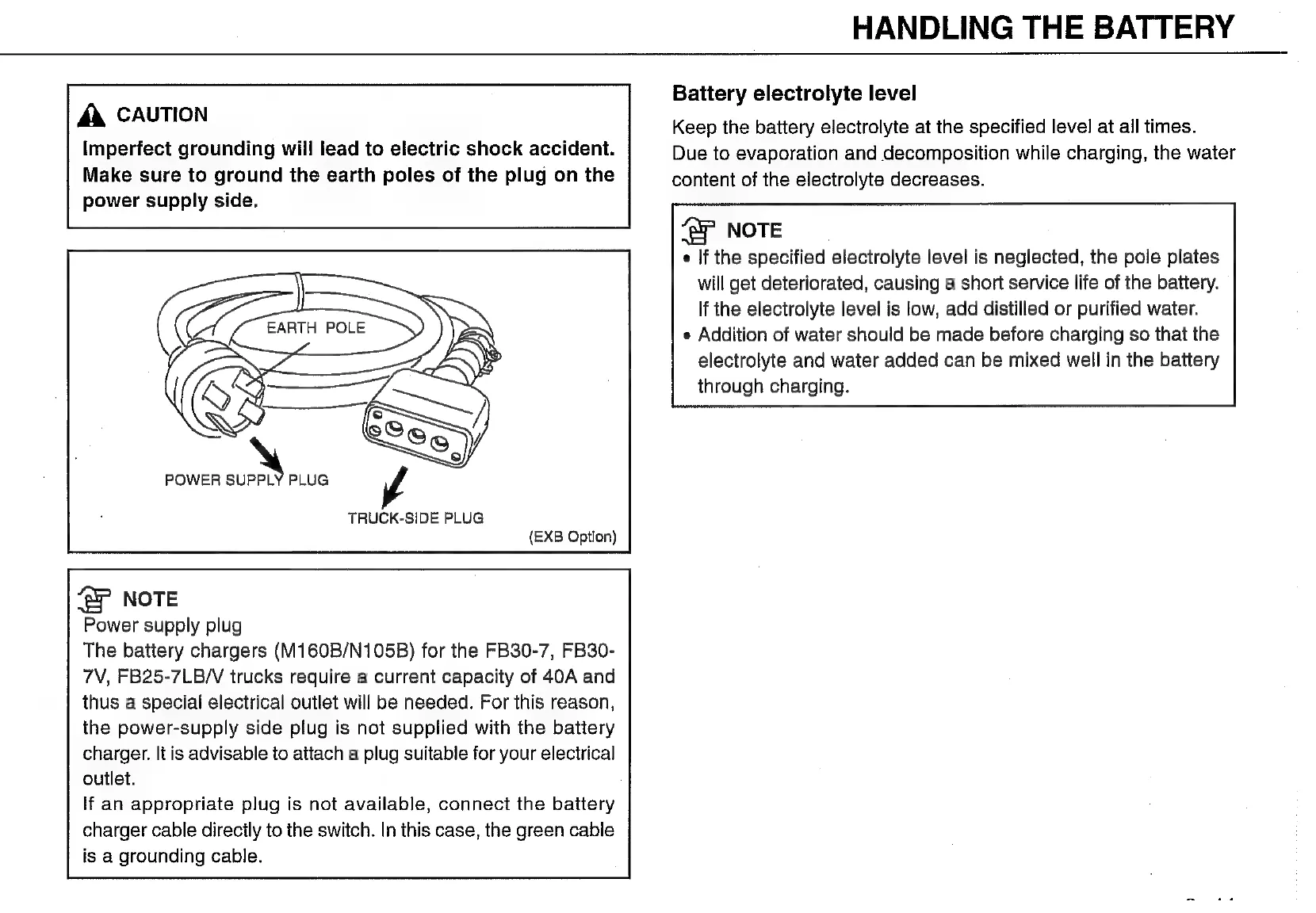

HANDLING THE BATTERY
Battery electrolyte level
А CAUTION Keep the battery electrolyte at the specified level at all times.
Imperfect grounding will lead to electric shock accident. Due to evaporation and decomposition while charging, the water
Make sure to ground the earth poles of the plug on the content of the electrolyte decreases.
power supply side.
Г NOTE
e |f the specified electrolyte level is neglected, the pole plates
will get deteriorated, causing a short service life of the battery.
If the electrolyte level is low, add distilled or purified water.
е Addition of water should be made before charging so that the
electrolyte and water added can be mixed well in the battery
through charging.
TRUCK-SIDE PLUG
(EXB Option)
Power supply plug
The battery chargers (M160B/N105B) for the FB30-7, FB30-
7V, FB25-7LB/V trucks require a current capacity of 40A and
thus a special electrical outlet will be needed. For this reason,
the power-supply side plug is not supplied with the battery
charger. It is advisable to attach a plug suitable for your electrical
outlet.
If an appropriate plug is not available, connect the battery
charger cable directly to the switch. In this case, the green cable
is a grounding cable.
