3-8
Fig. 3.23
Fig. 3.25
Fig. 3.24

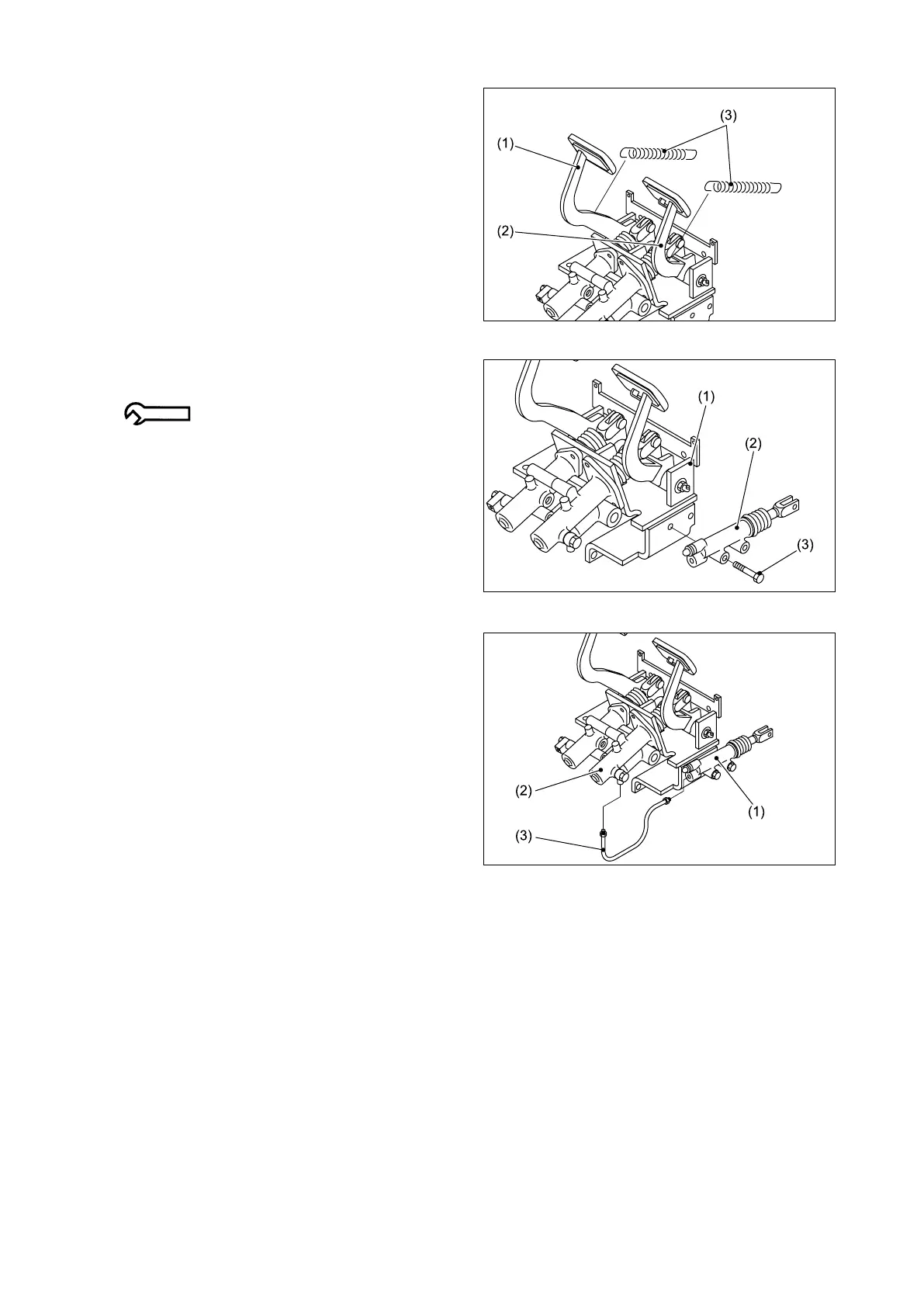

④ Install the springs (3) on the brake pedal (1)
and clutch pedal (2).
⑤ Install the clutch release cylinder (2) on the
pedal bracket (1) using the bolts (3).
21.2 N-m {2.2 kgf-m} [15.6 lbf-ft]
⑥ Install the pipe (3) connecting the clutch
release cylinder (1) and clutch booster (2).
To Next Page
