Teac 3 - 2. Specifications

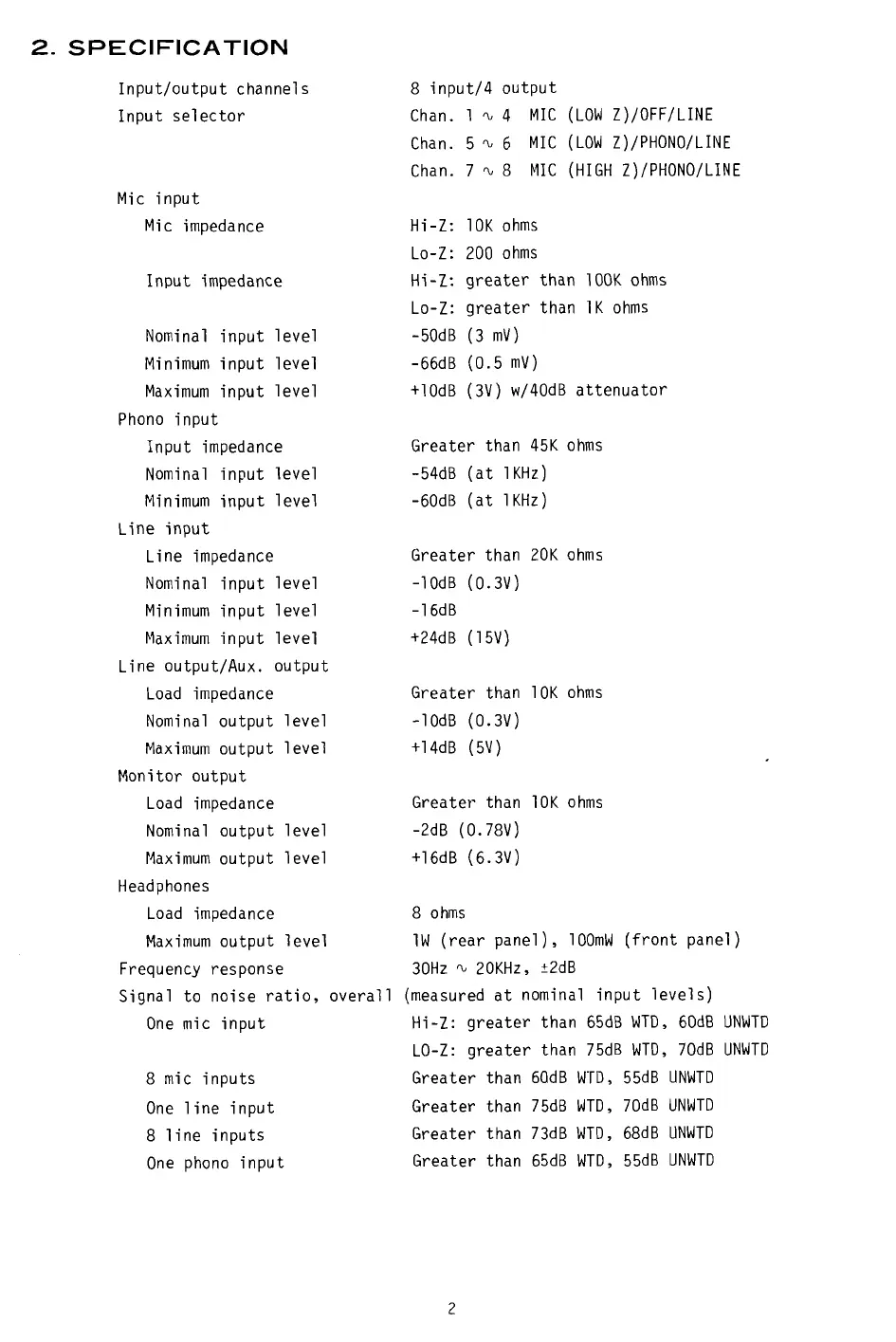

2. SPECIFICATION
Input/output channel s
Input se1 ector
Mic input
Mic impedance
Input impedance
Nominal input level
Minimum input level
Maximum input level
Phono input
Input impedance
Nominal input level
Minimum input level
Line input
Line impedance
Nominal input level
Minimum input level
Maximum input level
Line output/Aux. output
Load impedance
Nominal output level
Maximum output level
Monitor output
Load impedance
Nominal output level
Maximum output level
Headphones
Load impedance
Maximum output level
Frequency response
Signal to
noise ratio, overall
One
mic input
8
mic inputs
One
line input
8
line inputs
One phono input
8
input/4 output
Chan. 1
% 4 MIC (LOW Z)/OFF/LINE
Chan. 5 6 MIC (LOW Z)/PHONO/LIIVE
Chan. 7 % 8 MIC (HIGH Z)/PHONO/LINE
Hi-Z: 10K ohms
Lo-Z: 200 ohms
Hi-Z: greater than
100K ohms
Lo-Z: greater than
1K ohms
-50dB (3 mV)
-66dB
(0.5 mV)
t10dB
(3V) w140dB attenuator
Greater than 45K ohms
-54dB (at 1KHz)
-60dB
(at 1KHz)
Greater than 20K ohms
-10dB (0.3V)
-1 6dB
+24dB (15V)
Greater than 10K ohms
-10dB (0.3V)
+14dB
(5V)
Greatei- than 10K ohms
-2dB
(0.78V)
+16dB (6.3V)
8 ohms
1W (rear panel ) , 100mW (front panel )
30Hz 20KHz, 12dB
(measured at nomina1 input levels)
Hi-Z: greater than 65dB WTD, 60dB UNWTD
LO-Z: greater than 75dB WTD, 70dB UNWTD
Greater than
6OdB WTD, 55dB UNWTD
Greater than 75dB WTD, 70dB UNWTD
Greater than 73dB WTD, 68dB UNWTD
Greater than 65dB WTD, 55dB UNWTD
