Connections (1)
4
A

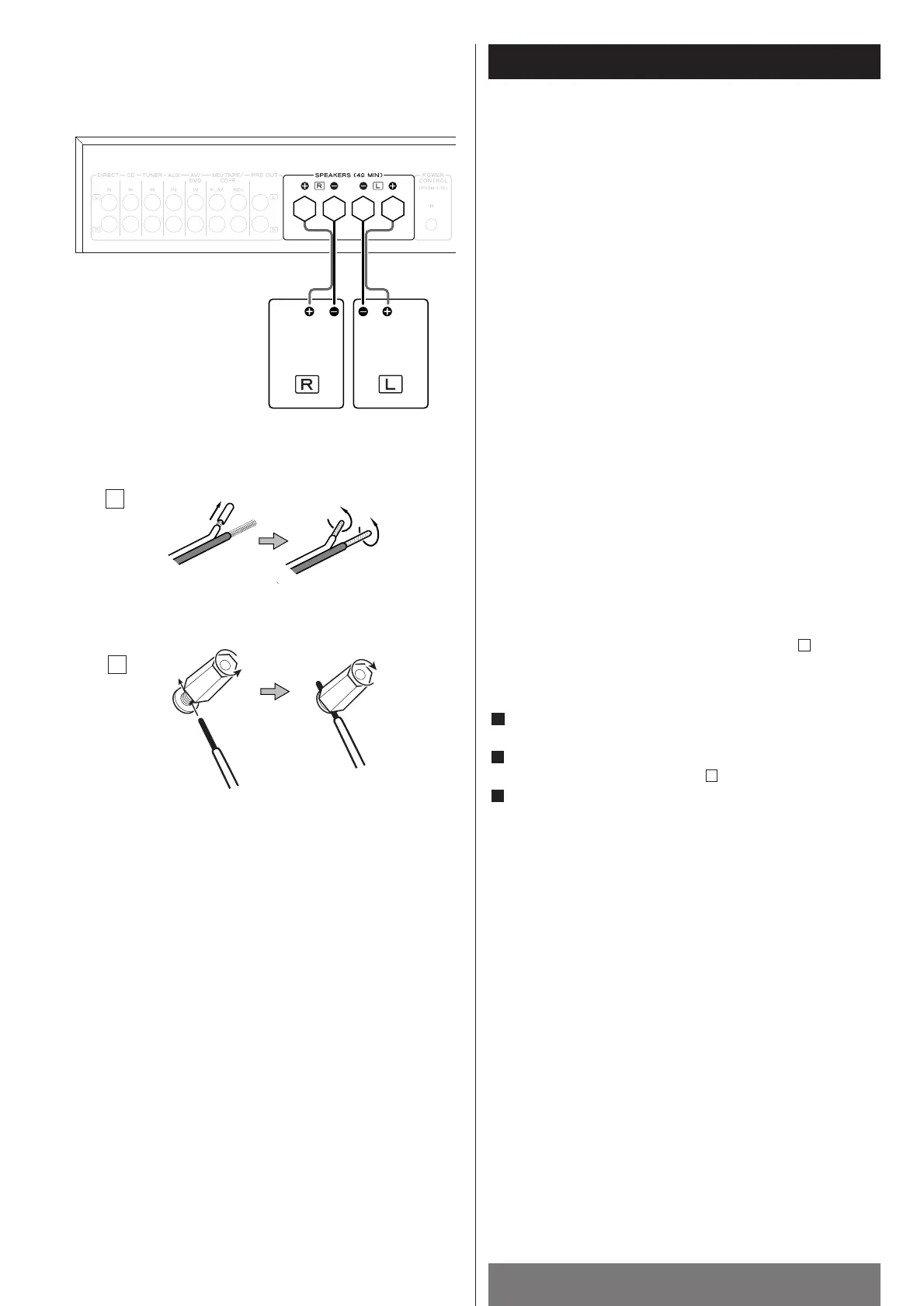

How to connect
Turn the terminal cap counterclockwise to loosen it. The
speaker terminal caps cannot be fully removed from the base.
Insert the wire into the terminal fully and turn the terminal cap
clockwise to securely connect it :
Make sure it is fastened firm by pulling the cable lightly.
3
B
2
1
Speaker Connections
Caution:
To avoid damaging the speakers by inputting a sudden high-level
signal, be sure to switch the power off before connecting the
speakers.
<
The amplifier's red speaker terminals are the + (positive)
terminals and the black terminals are the _
(negative)
terminals.
The +
side of the speaker cable is marked to make it
distinguishable from the negative side of the cable. Connect
this marked side to the red +
terminal and the unmarked side
to the black _
terminal.
<
Prepare the speaker cords for connection by stripping off
approximately 10 mm or less (no more as this could cause a
short-circuit) of the outer insulation.
Twist the wires tightly together to avoid tangles :
A
CAUTION
Turn off the power of all the equipment before making
connections.
Read instructions of each component you intend to use with this
unit.
<
Be sure to insert each plug securely. To prevent hum and
noise, do not bundle the connection cords with the power cord
or speaker cord.
FRONT FRONT
B
