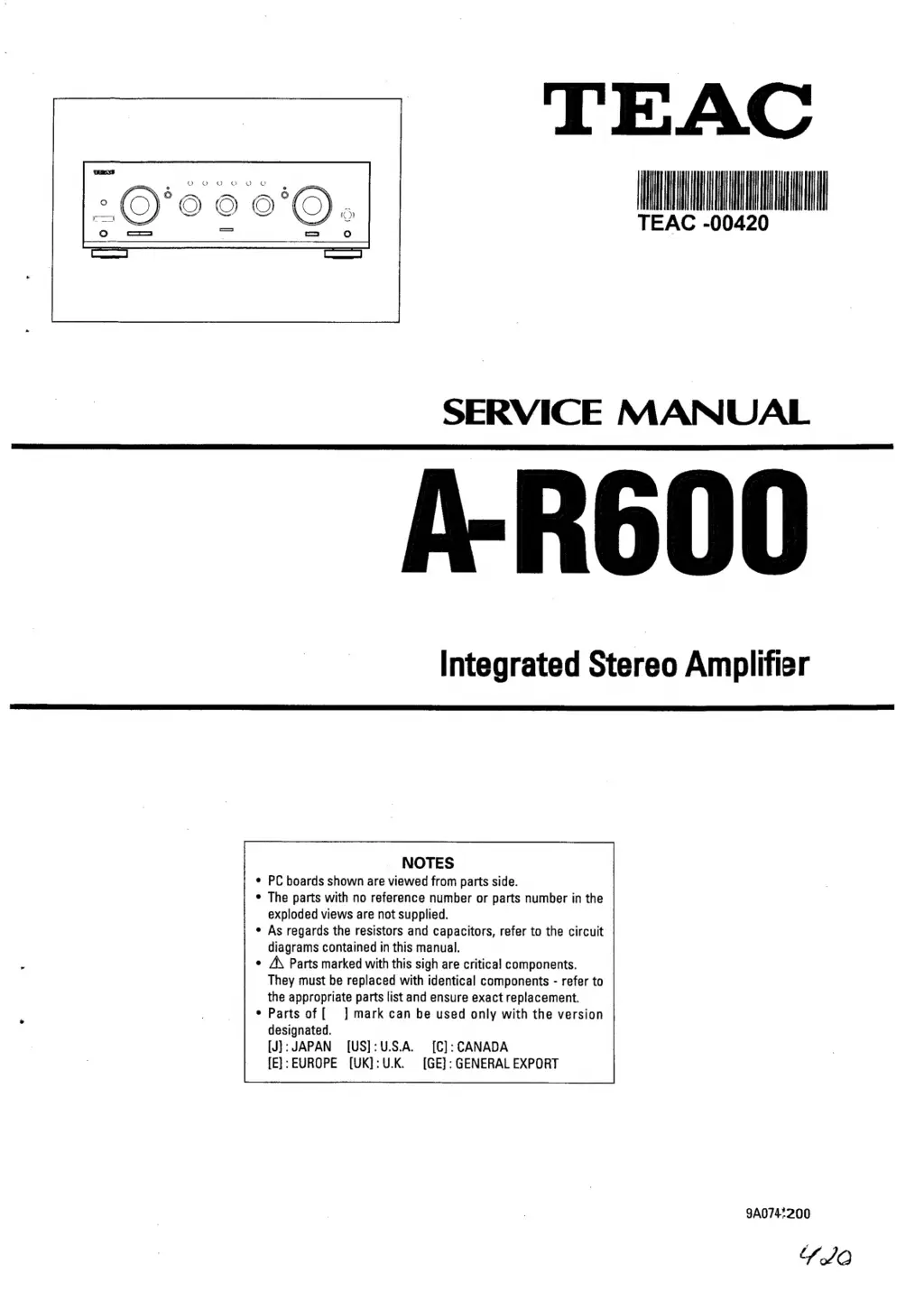

TEAC
HN
AC
-00
SERVICE
MANUAL
Integrated
Stereo
Amplifier
NOTES
¢
PC
boards
shown
are
viewed
from
parts
side.
¢
The
parts
with
no
reference
number
or
parts
number
in
the
exploded
views
are
not
supplied.
¢
As
regards
the
resistors
and
capacitors,
refer
to
the
circuit
diagrams
contained
in
this
manual.
:
e
A\
Parts
marked
with
this
sigh
are
critical
components.
They
must
be
replaced
with
identical
components
-
refer
to
the
appropriate
parts
list
and
ensure
exact
replacement.
*
Parts
of
[
|]
mark
can
be
used
only
with
the
version
designated.
[J}:
JAPAN
[US]:U.S.A.
[C]:
CANADA
[E}:
EUROPE
[UK]:U.K.
[GE]:
GENERAL
EXPORT
94074200
YLO
