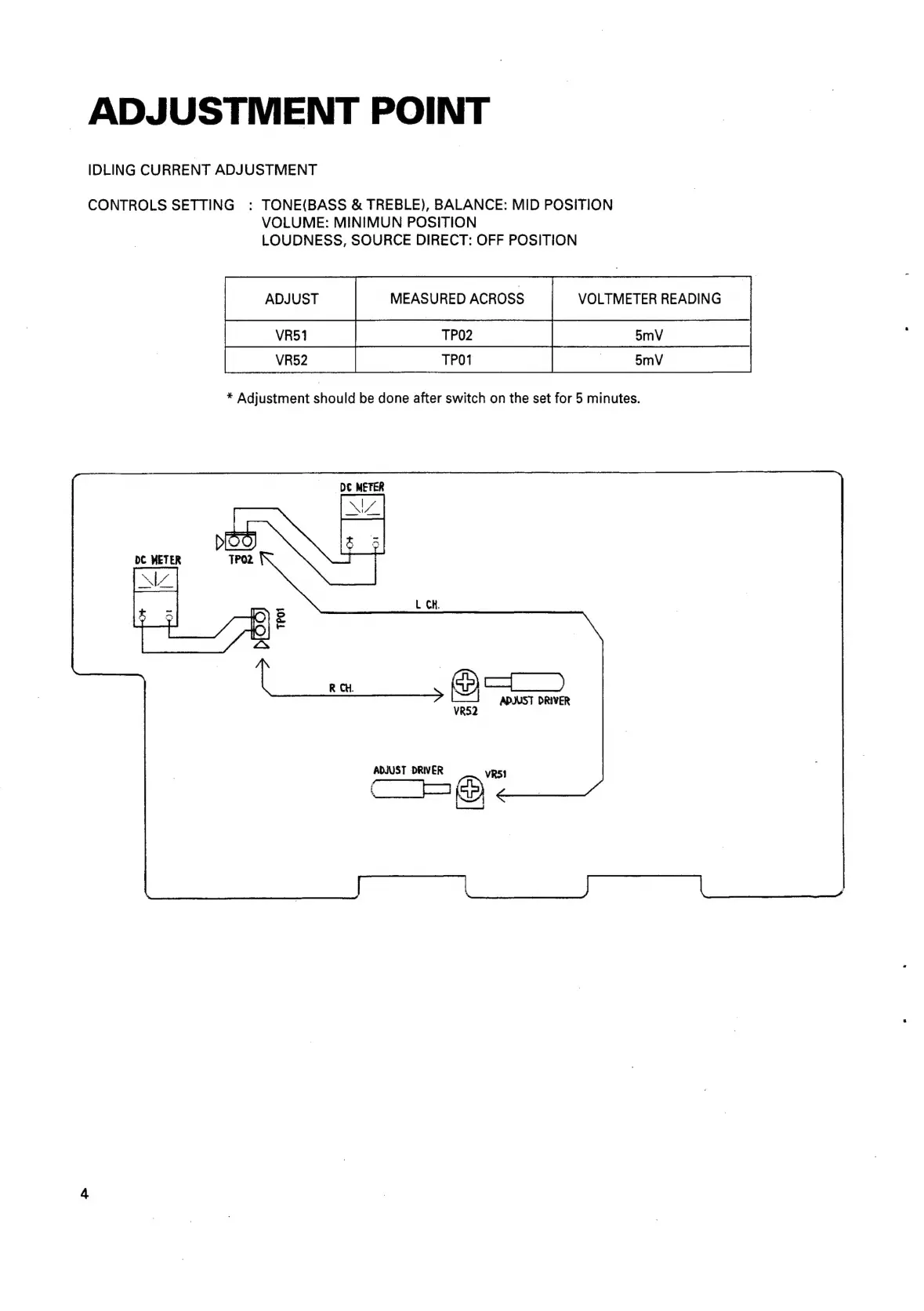

ADJUSTMENT
POINT
IDLING
CURRENT
ADJUSTMENT
CONTROLS
SETTING
:
TONE(BASS
&
TREBLE),
BALANCE:
MID
POSITION
VOLUME:
MINIMUN
POSITION
LOUDNESS,
SOURCE
DIRECT:
OFF
POSITION
ADJUST
MEASURED
ACROSS
VR51
TPO2
VR52
TPO1
*
Adjustment
should
be
done
after
switch
on
the
set
for
5
minutes.
VOLTMETER
READING
VR52
ADJUST
DRIVER
VRS!
