Teac A-R600 - Specifications; General Specifications; Standard Accessories

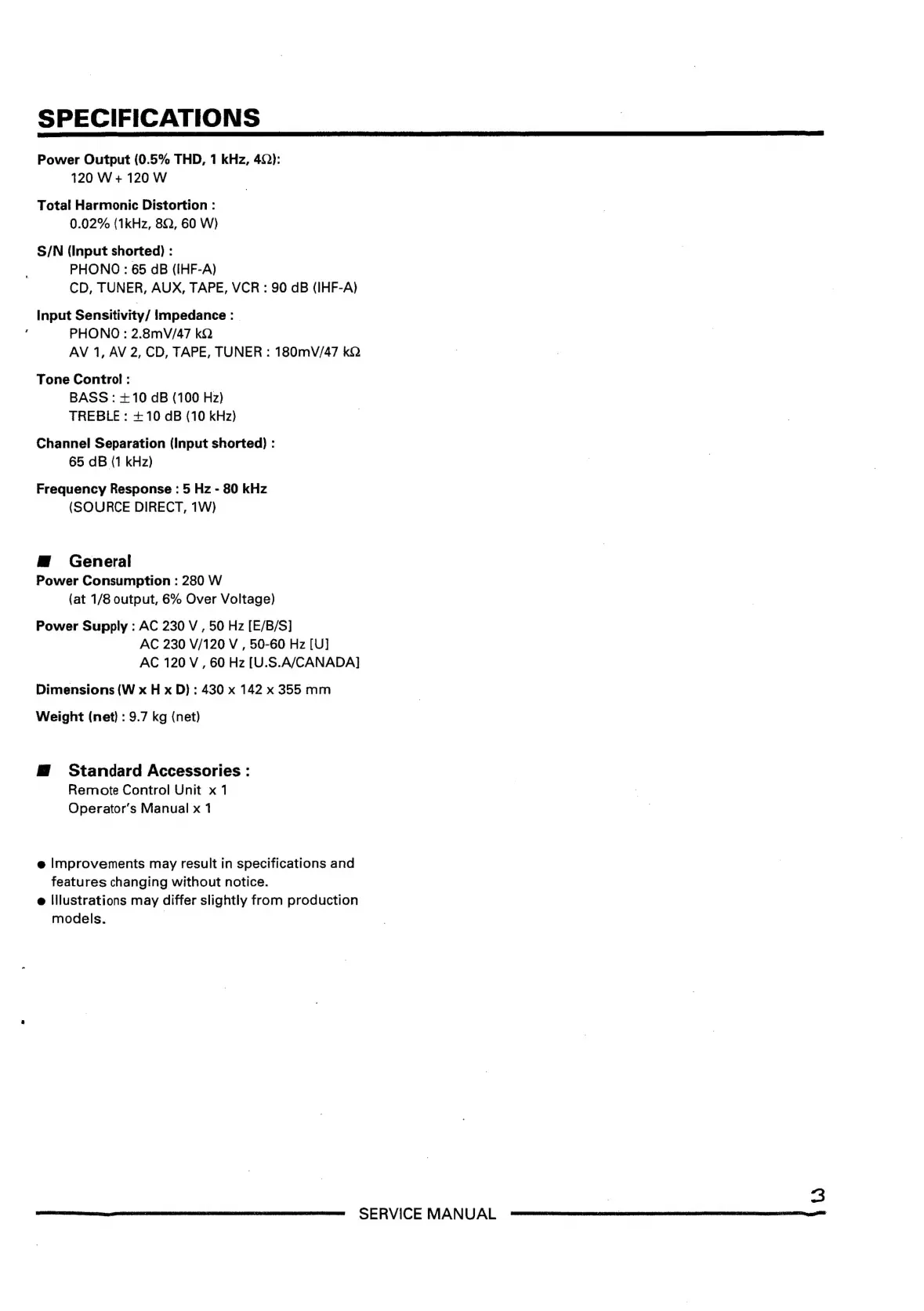

SPECIFICATIONS
Power Output (0.5% THD, 1 kHz, 4Q):
120 W+ 120 W
Total Harmonic Distortion :
0.02% (1kHz, 8, 60 W)
S/N (Input shorted) :
PHONO : 65 dB (IHF-A)
CD, TUNER, AUX, TAPE, VCR : 90 dB (IHF-A)
Input Sensitivity / impedance : |
PHONO: 2.8mV/47 kQ
AV 1, AV 2, CD, TAPE, TUNER : 180mV/47 kQ
Tone Control :
BASS : +10 dB (100 Hz)
TREBLE : +10 dB (10 kHz)
Channel Separation (Input shorted) :
65 dB (1 kHz)
Frequency Response : 5 Hz - 80 kHz
(SOURCE DIRECT, 1W)
@ General
Power Consumption : 280 W
(at 1/8 output, 6% Over Voltage)
Power Supply : AC 230 V , 50 Hz [E/B/S]
AC 230 V/120 V , 50-60 Hz [U]
AC 120 V , 60 Hz [U.S.A/CANADA]
Dimensions (W x H x D) : 430 x 142 x 355 mm
Weight (net) : 9.7 kg (net)
M@ Standard Accessories:
Remote Control Unit x 1
Operator's Manual x 1
e Improvements may result in specifications and
features changing without notice.
@ Illustrations may differ slightly from production
models. |
SERVICE MANUAL
