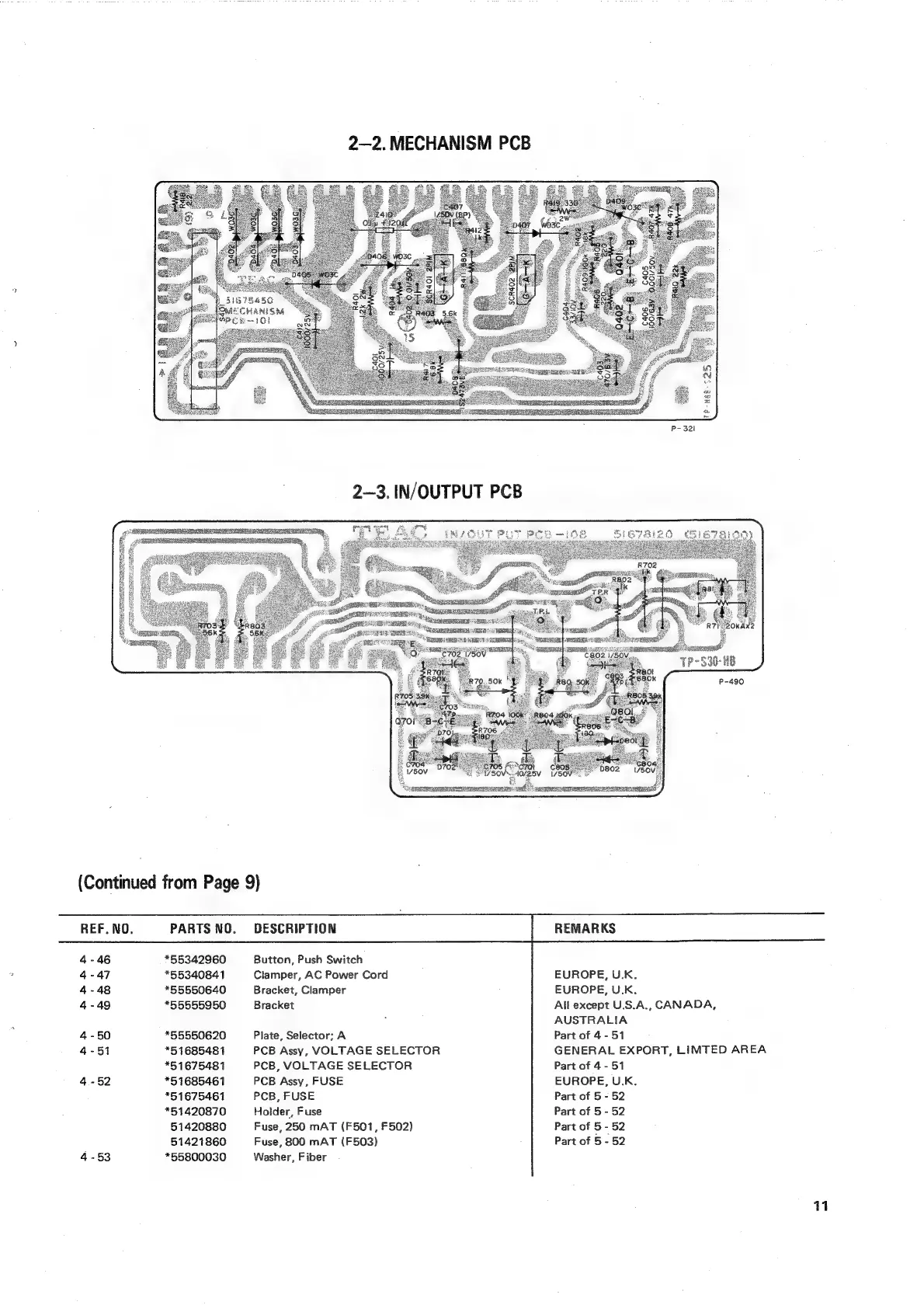

Teac A-300 - PC Board Section Diagrams (Continued); MECHANISM PCB Diagram; IN;OUTPUT PCB Diagram

2—2. MECHANISM PCB
P-32i
(Continued from Page 9)
REF. NO.
PARTS NO. DESCRIPTION REMARKS
*55342960 Button, Push Switch
4-47 *55340841 Clamper, AC Power Cord EUROPE, U.K.
4-48 *55550640 Bracket, Clamper EUROPE, U.K.
4-49 *55555950 Bracket All except U.S.A., CANADA,
AUSTRALIA
4-50 *55550620 Plate, Selector; A Part of 4-51
4-51 *51685481 PCB Assy, VOLTAGE SELECTOR GENERAL EXPORT, LIMTED AREA
*51675481 PCB, VOLTAGE SELECTOR Part of 4-51
4-52 *51685461 PCB Assy, FUSE EUROPE, U.K.
*51675461 PCB, FUSE Part of 5 - 52
*51420870 Holder, Fuse Part of 5 - 52
51420880 Fuse, 250 mAT (F501, F502) Part of 5 - 52
51421860 Fuse, 800 mAT (F503) Part of 5-52
4-53 *55800030 Washer, Fiber
