Teac A-300 - PC Board Section Parts Lists; REC;PLAY AMPL. PCB Parts List

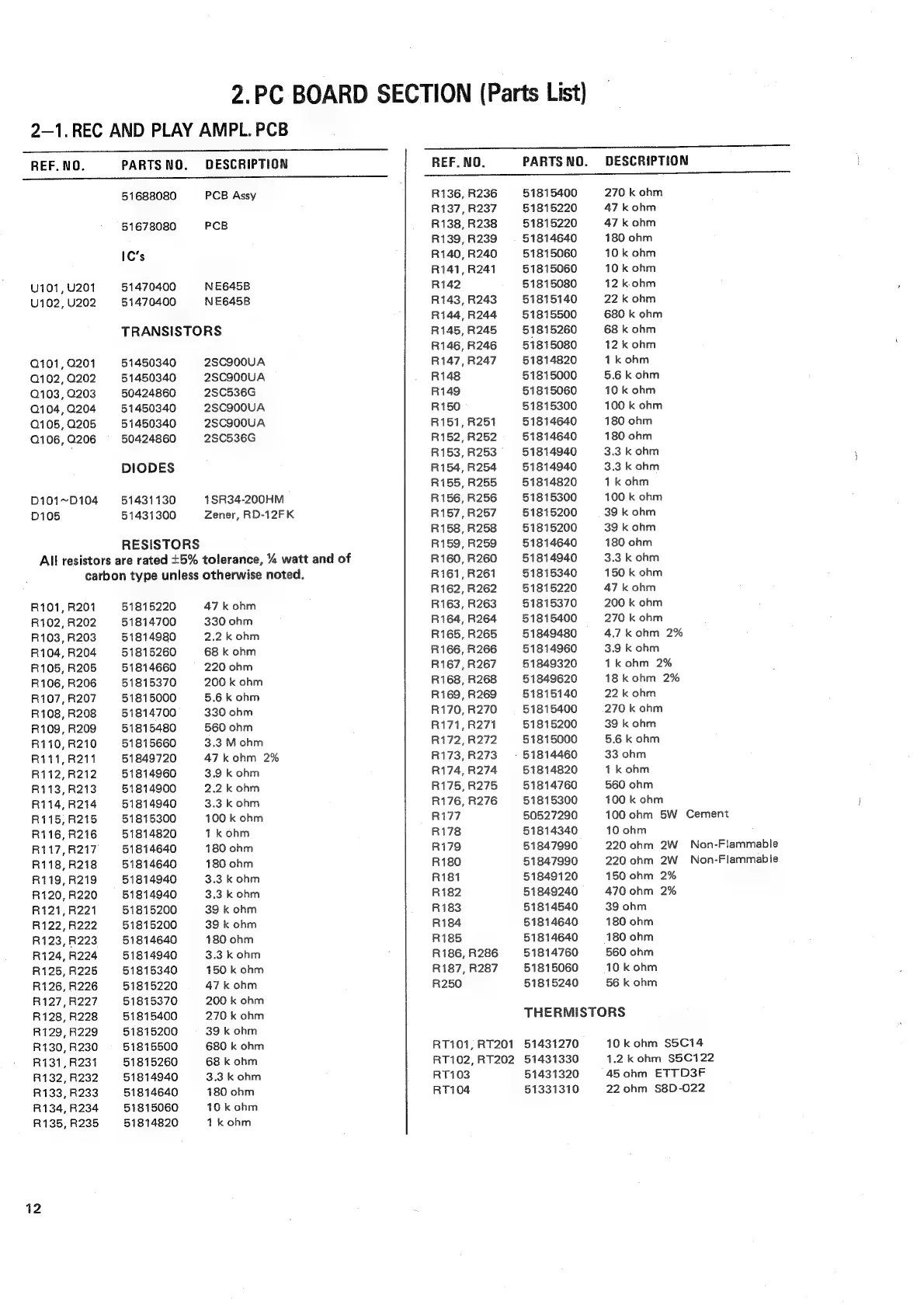

2.PC BOARD SECTION (Parts List) —
2—1.REC AND PLAY AMPL. PCB
REF. NO. PARTS NO. DESCRIPTION
51688080 PCB Assy
51678080 PCB
IC’s
U101, U201 51470400 NE645B
U102, U202 51470400 NE645B
TRANSISTORS
Q101, 0201 51450340 2SC900UA
Q102, Q202 51450340 2SCS00UA
Q103, A203 50424860 2SC536G
Q104, Q204 51450340 2SC90D0UA
Q105, A205 51450340 2SC900UA
Q106, Q206 50424860 2SC536G
DIODES
D101~D104 51431130 1SR34-200HM
D105 51431300 Zener, RD-12FK
All resistors are rated +5% tolerance, % watt and of
carbon type unless otherwise noted.
R101, R201
R102, R202
R103, R203
R104, R204
R105, R205
R106, R206
R107, R207
R108, R208
R109, R209
R110, R210
R111, R211
R112,R212
R113, R213
R114, R214
R115, R215
R116, R216
R117, R217
R118, R218
R119, R219
R120, R220
R121, R221
R122, R222
R123, R223
R124, R224
R125, R225
R126, R226
R127, R227
R128, R228
R129, R229
R130, R230
R131, R231
R132, R232
R133, R233
R134, R234
R135, R235
12
RESISTORS
51815220 47 k ohm
51814700 330 ohm
51814980 2.2 k ohm
51815260 68 k ohm
51814660 220 ohm
51815370 200 k ohm
51815000 5.6 k ohm
51814700 330 ohm
51815480 560 ohm
51815660 3.3 M ohm
51849720 47 kohm 2%
51814960 3.9 k ohm
51814900 2.2 k ohm
51814940 3.3 k ohm
51815300 100 k ohm
51814820 1k ohm
51814640 180 ohm
51814640 180 ohm
51814940 3.3 k ohm
51814940 3.3 k ohm
51815200 39 k ohm
51815200 39 k ohm
51814640 180 ohm
51814940 3.3 k ohm
51815340 150 k ohm
51815220 47 k ohm
51815370 200 k ohm
51815400 270 k ohm
51815200 39 k ohm
51815500 680 k ohm
51815260 68 k ohm
51814940 3.3 k ohm
51814640 180 ohm
51815060 10 k ohm
51814820 1k ohm
REF.NOQ. PARTS NO. DESCRIPTION
R136, R236 51815400 270 k ohm
R137, R237 51815220 47 k ohm
R138, R238 51815220 47 k ohm
R139, R239 51814640 180 ohm
R140, R240 51815060 10k ohm
R141, R241 51815060 10 k ohm
R142 51815080 12 k.ohm
R143, R243 51815140 22 k ohm
R144, R244 51815500 680 k ohm
R145,R245 51815260 68 k ohm
R146, R246 51815080 12 k ohm
R147, R247 51814820 1k ohm
R148 51815000 5.6 k ohm
R149 51815060 10 k ohm
R150 51815300 100 k ohm
R151, R251 51814640 180 ohm
R152, R252 51814640 180 ohm
R153, R253 51814940 3.3 k ohm
R154, R254 51814940 3.3 k ohm
R155, R255 51814820 1k ohm
R156, R256 51815300 100 k ohm
R157, R257 51815200 39 k ohm
R158, R258 51815200 39 k ohm
R159, R259 51814640 180 ohm
R160, R260 51814940 3.3 k ohm
R161,R261 51815340 150 k ohm
R162, R262 51815220 47 k ohm
R163, R263 51815370 200 k ohm
R164, R264 51815400 270 k ohm
R165, R265 51849480 4.7 kohm 2%
R166, R266 51814960 3.9 k ohm
R167, R267 51849320 1kohm 2%
R168, R268 51849620 18 kohm 2%
R169, R269 51815140 22 k ohm
R170, R270 51815400 270 k ohm
R171,R271 51815200 39 k ohm
R172, R272 51815000 5.6 k ohm
R173,R273 - 51814460 33 ohm
R174, R274 51814820 1kohm
R175, R275 51814760 560 ohm
R176, R276 51815300 100 k ohm
R177 50527290 100 ohm 5W Cement
R178 51814340 10 ohm
R179
51847990
220
ohm
2W_
Non-Flammable
R180
51847990
220
ohm
2W_
Non-Flammabie
R181 51849120 150 chm 2%
R182 51849240 470 ohm 2%
R183 51814540 39 ohm
R184 51814640 180 ohm
R185 51814640 180 ohm
R186, R286 51814760 560 ohm
R187, R287 51815060 10k ohm
R250 51815240 56 k ohm
RT101, RT201
RT102, RT202
RT103
RT104
THERMISTORS
51431270 10 kohm $5C14
51431330 1.2kohm S5C122
51431320 45 0hm ETTD3F
51331310 22 ohm S8D-022
