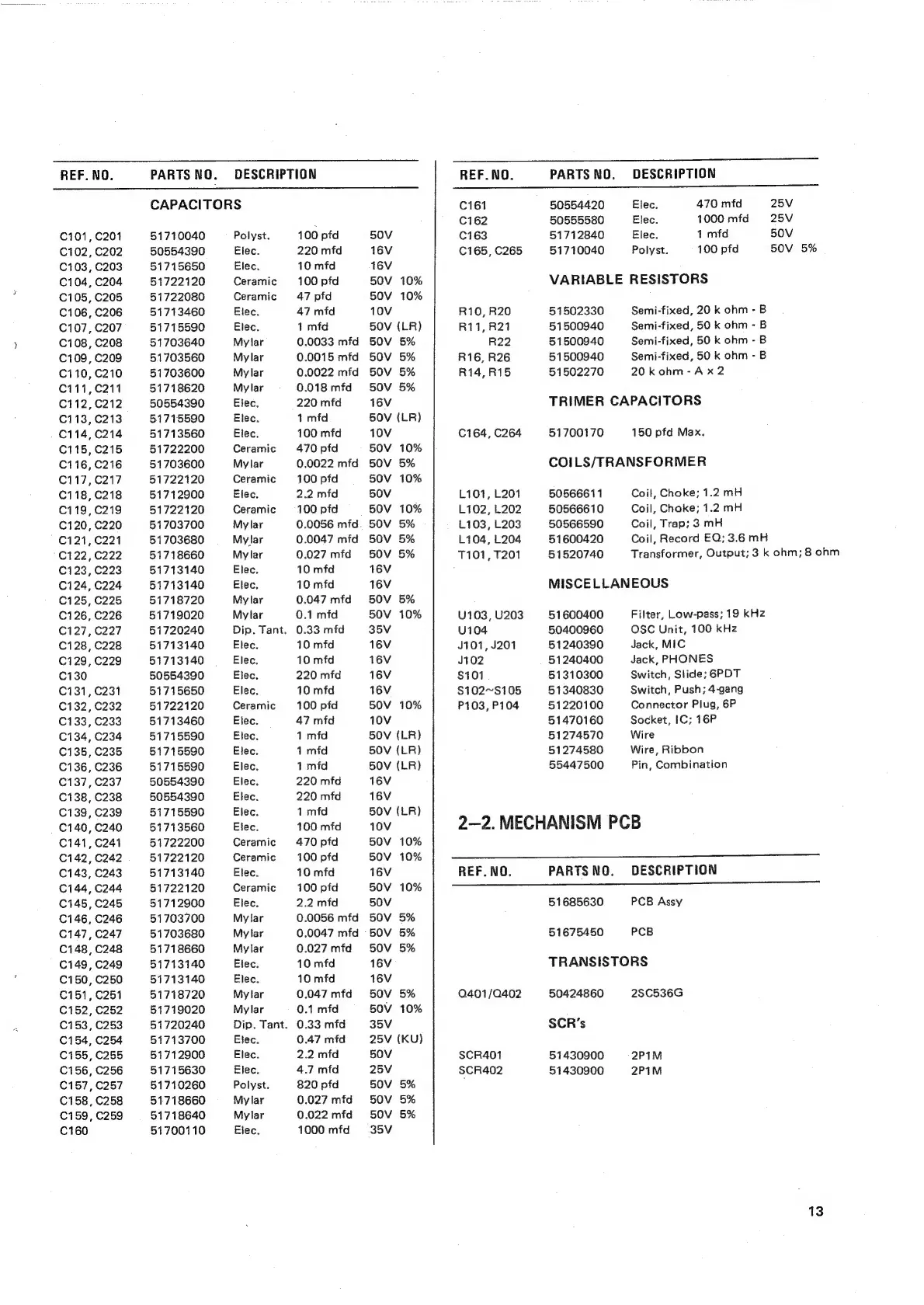

Teac A-300 - PC Board Section Parts Lists (Continued); Capacitors, Variable Resistors, Trimmers; Coils, Transformers, and Miscellaneous

REF. NO. PARTS NO. DESCRIPTION
CAPACITORS
C101, C201 51710040 Polyst. 100 pfd 50V
C102, C202 50554390 Elec. 220 mfd 16V
C103, C203 51715650 Elec, 10 mfd 16V
C104, C204 51722120 Ceramic 100 pfd 50V 10%
C105, C205 51722080 Ceramic 47 pfd 50V 10%
C106, C206 51713460 Elec, 47 mfd 10V
C107, C207 51715590 Elec. 1 mfd 50V (LR)
C108, C208 51703640 Mylar 0.0033 mfd 50V 5%
C109, C209 51703560 Mylar 0.0015 mfd 50V 5%
C110, C210 51703600 Mylar 0.0022 mid SOV 5%
C111,C211 51718620 Mylar 0.018 mfd 50V 5%
C112, C212 50554390 Elec, 220 mfd 16V
C113, C213 51715590 Elec. 1 mfd 50V (LR)
C114, C214 51713560 Elec, 100 mfd 10V
C115, C215 51722200 Ceramic 470 pfd 50V 10%
C116, C216 51703600 Mylar 0.0022 mfd 50V 5%
C117, C217 51722120 Ceramic 100 pfd 50V 10%
C118, C218 51712900 Elec, 2.2 mfd 50V
C119, C219 51722120 Ceramic 100 pfd 50V 10%
C120, C220 51703700 Mylar 0.0056 mfd. 50V 5%
C121, C221 51703680 Mylar 0.0047 mfd S50V 5%
C122, C222 51718660 Mylar 0.027 mfd 50V 5%
C123, C223 51713140 Elec. 10 mfd 16V
C124, C224 51713140 Elec, 10 mfd 16V
C125, C225 51718720 Mylar 0.047 mfd 50V 5%
C126, C226 51719020 Mytar 0.1 mfd 50V 10%
C127, C227 51720240 Dip. Tant. 0.33 mfd 35V
C128, C228 51713140 Elec. 10 mfd 16V
C129, C229 51713140 Elec. 10 mfd 16V
C130 50554390 Elec, 220 mfd 16V
C131, C231 51715650 Elec, 10 mfd 16V
C132, C232 51722120 Ceramic 100 pfd 50V 10%
C133, C233 51713460 Elec. 47 mfd 10V
C134, C234 51715590 Elec. 1 mfd 50V (LR)
C135, C235 51715590 Elec. 1 mfd 50V (LR)
C136, C236 51715590 Elec. 1 mfd 50V (LR)
C137, C237 50554390 Elec. 220 mfd 16V
C138, C238 50554390 Elec. 220 mfd 16V
C139, C239 51715590 Elec. 1 mfd 5OV (LR)
C140, C240 51713560 Elec. 100 mfd 10V
C141, C241 51722200 Ceramic 470 pfd 50V 10%
C142, C242 51722120 Ceramic 100 pfd 5OV 10%
C143, C243 51713140 Elec. 10 mfd 16V
C144, C244 51722120 Ceramic 100 pfd 50V 10%
C145, C245 51712900 Elec, 2.2 mfd 50V
C146, C246 51703700 Mylar 0.0056 mfd 50V 5%
C147, C247 51703680 Mylar 0.0047 mfd 50V 5%
C148, C248 51718660 Mylar 0.027 mfd SOV 5%
C149, C249 51713140 Elec, 10 mfd 16V
C150, C250 51713140 Elec. 10 mfd 16V
C151, C251 51718720 My lar 0.047 mfd 50V 5%
C152, C252 51719020 Mylar 0.1 mfd 50V 10%
C153, C253 51720240 Dip. Tant. 0.33 mfd 35V
C154, C254 51713700 Elec. 0.47 mid 25V (KU)
C155, C255 51712900 Elec. 2.2 mid 50V
C156, C256 51715630 Elec. 4.7 mfd 25V
C157, C257 51710260 Polyst. 820 pfd 50V 5%
C158, C258 51718660 Mylar 0.027 mfd 50V 5%
C159, C259 51718640 Mylar 0.022 mfd 50V 5%
C160 51700110 Elec, 1000 mfd =. 335V
aa
REF.NO. PARTS NO. DESCRIPTION
C161 50554420 Elec, 470 mfd 25V
C162 50555580 Elec. 1000 mfd 25V
C163 51712840 Elec. 1 mfd 50V
C165,
C265
51710040
Polyst.
100
pfd
50V
5%
VARIABLE RESISTORS
R10, R20 51502330 Semi-fixed, 20 k ohm - B
R11,R21 51500940 Semi-fixed, 50 k ohm - B
R22 51500940 Semi-fixed, 50 k ohm - B
R16, R26 51500940 Semi-fixed, 50 k ohm - B
R14,R15 51502270 20kohm-Ax2
TRIMER CAPACITORS
C164, C264 51700170 150 pfd Max.
COILS/TRANSFORMER
L101, L201 50566611 Coil, Choke; 1.2 mH
L102, L202 50566610 Coil, Choke; 1.2 mH
L103, L203 50566590 Coil, Trap; 3 mH
L104, L204 51600420 Coil, Record EQ; 3.6 mH
7101, T201 51520740 Transformer, Output; 3 k ohm; 8 ohm
MISCELLANEOUS
U103, U203 51600400 Filter, Low-pass; 19 kHz
U104 50400960 OSC Unit, 100 kHz
J101, J201 51240390 Jack, MIC
J102 51240400 Jack, PHONES
$101 51310300 Switch, Slide; 6PDT
$102~S105 51340830 Switch, Push; 4-gang
P103, P104 51220100 Connector Plug, 6P
51470160 Socket, |1C; 16P
51274570 Wire
51274580 Wire, Ribbon
55447500 Pin, Combination
2—2. MECHANISM PCB
REF.NO. PARTSNO. DESCRIPTION
51685630 PCB Assy
51675450 PCB
TRANSISTORS
0401/0402 50424860 2SC536G
SCR’s
SCR401 51430900 2P1M
SCR402 51430900 2PiM
13
