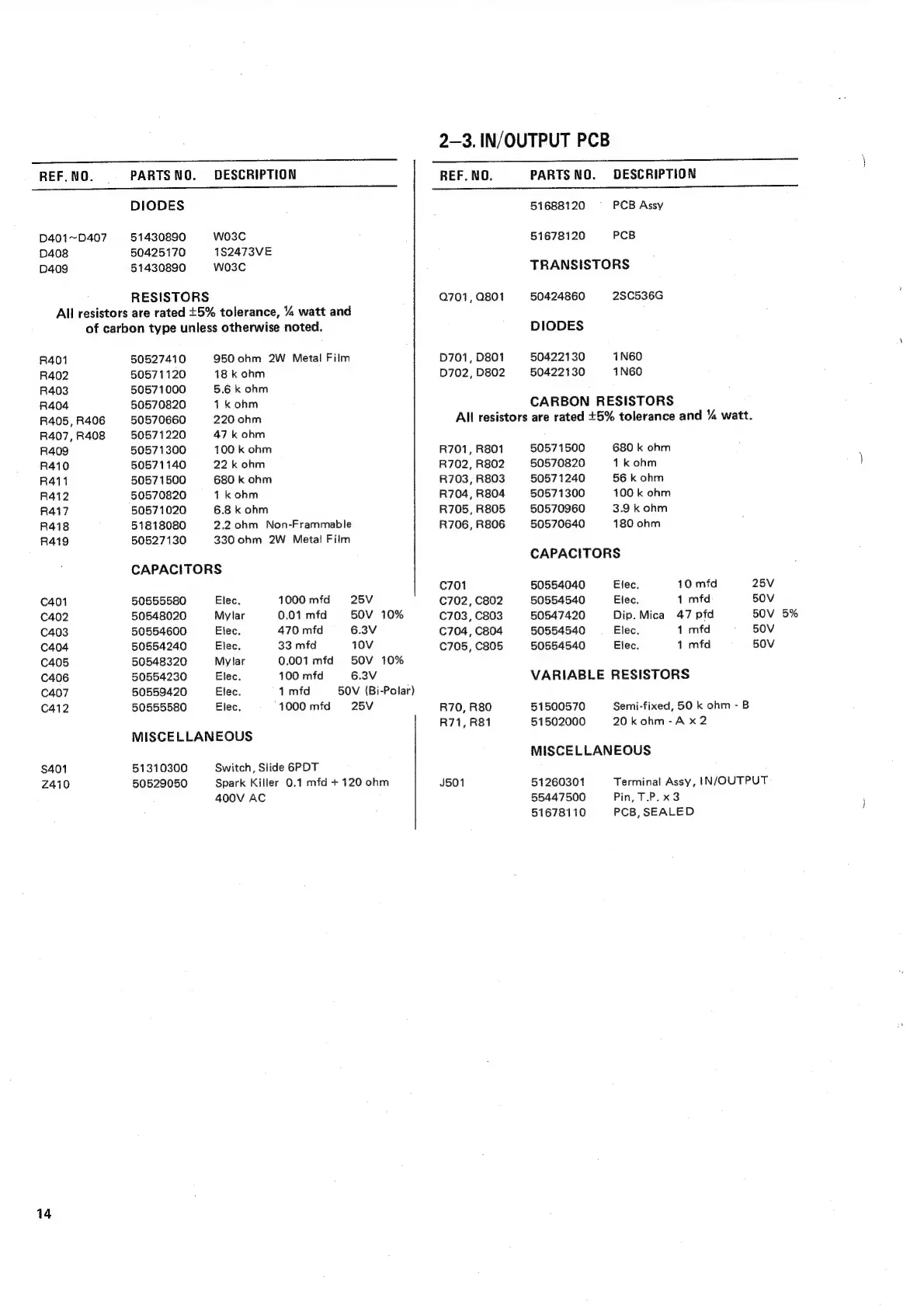

Teac A-300 - PC Board Section Parts Lists (Continued); MECHANISM PCB Parts List; IN;OUTPUT PCB Parts List; I;O PCB Diodes and Resistors

i ———
REF.NO.
PARTSNO. DESCRIPTION
i
D401~D407
D408
D409
DIODES
51430890 W03C
50425170 1S2473VE
51430890 WO03C
RESISTORS
All resistors are rated +5% tolerance, % watt and
of carbon type unless otherwise noted.
R401
R402
R403
R404
R405, R406
R407, R408
R409
R410
R411
R412
R417
R418
R419
C401
C402
C403
C404
C405
C406
C407
C412
$401
Z410
14
50527410 950 ohm 2W Metal Film
50571120 18 k ohm
50571000 5.6 k ohm
50570820 1 kohm
50570660 220 ohm
50571220 47 k ohm
50571300 100 k ohm
50571140 22 k ohm
50571500 680 k ohm
50570820 1kohm
50571020 6.8 k ohm
51818080 2.2 ohm Non-Frammable
50527130 330 ohm 2W Metal Film
CAPACITORS
50555580 Elec. 1000 mfd 25V
50548020 Mylar 0.01 mfd 50V 10%
50554600 Elec. 470 mfd 6.3V
50554240 Elec. 33 mfd 10V
50548320 Mylar 0.001 mfd 50V 10%
50554230 Elec, 100 mfd 6.3V
50559420 Elec. 1 mfd 50V (Bi-Polar)
50555580 Elec, 1000 mfd 25V
MISCELLANEOUS
51310300 Switch, Slide 6PDT
50529050 Spark Killer 0.1 mfd + 120 ohm
400V AC
2—3. IN/OUTPUT PCB
REF. NO. PARTS NO. DESCRIPTION
51688120 PCB Assy
51678120 PCB
TRANSISTORS
Q701, Q801 50424860 2SC536G
DIODES
D701, D801 50422130 1N60
D702, D802 50422130 1N60
R701, R801
R702, R802
R703, R803
R704, R804
R705, R805
R706, R806
C701
C702, C802
C703, C803
C704, C804
C705, C805
R70, R80
R71, R81
J501
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt.
50571500 680 k ohm
50570820 1k ohm
50571240 56 k ohm
50571300 100 k ohm
50570960 3.9 k ohm
50570640 180 ohm
CAPACITORS
50554040 Elec. 10 mfd
50554540 Elec. 1 mfd
50547420 Dip.Mica 47 pfd
50554540 Elec. 1 mfd
50554540 Elec, 1 mfd
VARIABLE RESISTORS
51500570
51502000
Semi-fixed, 50 k ohm - B
20 kohm-A x2
MISCELLANEOUS
51260301
55447500
51678110
25V
50V
50V 5%
50V
50V
Terminal Assy, IN/OUTPUT
Pin, T.P.x3
PCB, SEALED
