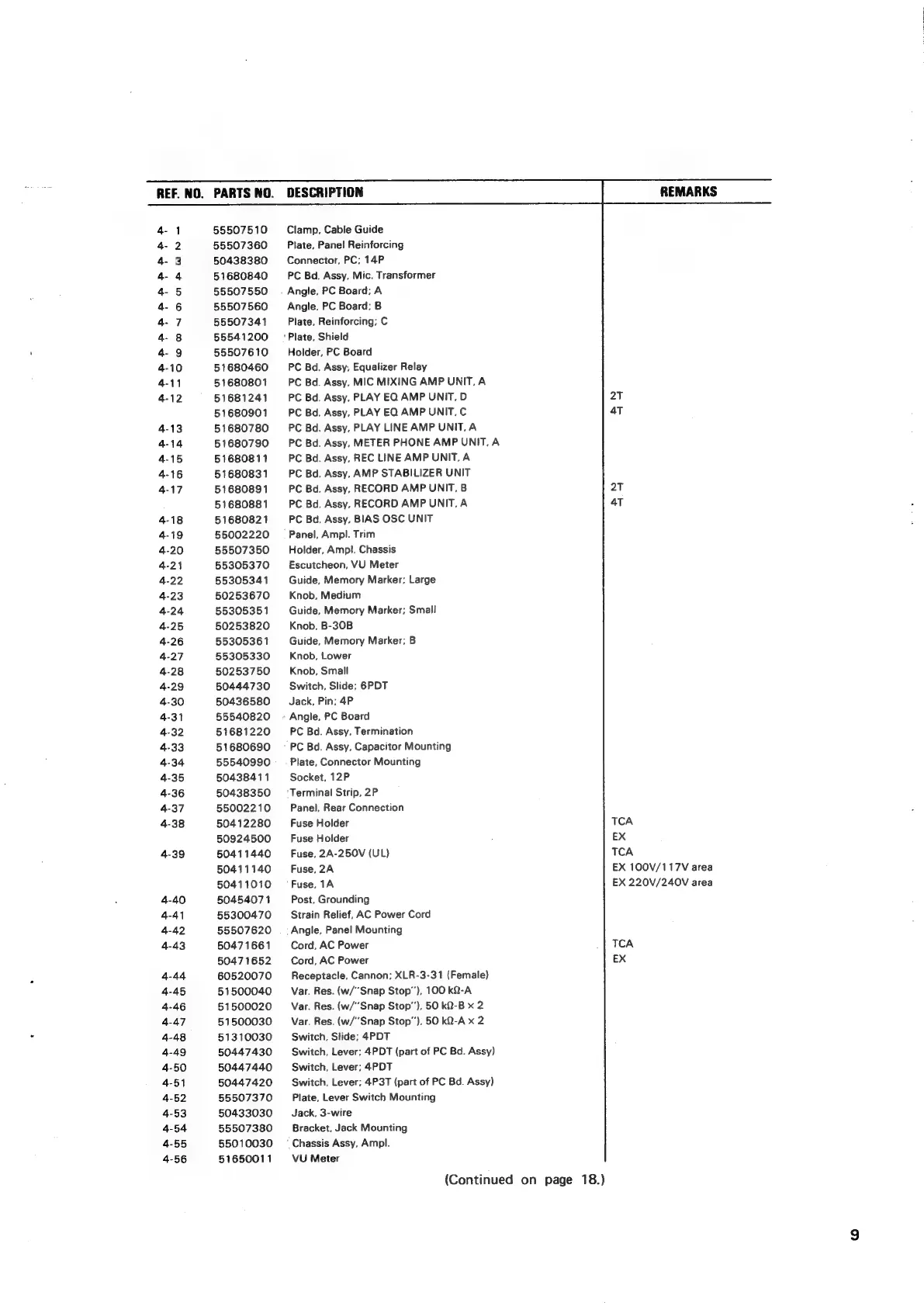

REF. NO. PARTS NO.
DESCRIPTION REMARKS
4-1 55507510 Clamp, Cable Guide
4-2 55507360 _—s=wPrlate, Panel Reinforcing
4- 3 50438380 Connector, PC; 14P
4- 4 51680840 PC Bd. Assy. Mic. Transformer
45 55507550 _ = Angle, PC Board; A
4-6 55507560 = Angle, PC Board: B
4-7 55507341 Plate, Reinforcing; C
4- 8 55541200 _—s— Plate, Shield
4-9 55507610 Holder, PC Board
4-10 51680460 PC Bd. Assy, Equalizer Relay
4-11 51680801 PC Bd. Assy, MIC MIXING AMP UNIT, A
4-12 51681241 PC Bd. Assy, PLAY EQ AMP UNIT, D 2T
51680901 PC Bd. Assy, PLAY EQ AMP UNIT, C 4T
4-13 51680780 PC Bd. Assy, PLAY LINE AMP UNIT, A
4-14 51680790 PC Bd. Assy, METER PHONE AMP UNIT, A
4-15 51680811 PC Bd. Assy, REC LINE AMP UNIT, A
4-16 51680831 PC Bd. Assy, AMP STABILIZER UNIT
4-17 51680891 PC Bd. Assy, RECORD AMP UNIT, B 2T
51680881 PC Bd. Assy, RECORD AMP UNIT, A 4T
4-18 51680821 PC Bd. Assy, BIAS OSC UNIT
4-19 55002220 —s— Panel, Ampl. Trim
4-20 55507350 Holder, Amp!. Chassis
4-21 55305370 Escutcheon, VU Meter
4-22 55305341 Guide, Memory Marker; Large
4-23 50253670 Knob, Medium
4-24 55305351 Guide, Memory Marker; Small
4-25 50253820 Knob, B-30B
4-26 55305361 Guide, Memory Marker; B
4-27 55305330 Knob, Lower
4-28 50253750 Knob, Small
4-29 50444730 Switch, Slide; 6PDT
4-30 50436580 Jack, Pin: 4P
4-31 55540820 ~—s Angle, PC Board
4-32 51681220 PC Bd. Assy. Termination
4-33 51680690 _— PC Bd. Assy. Capacitor Mounting
4-34 55540990 __— Plate, Connector Mounting
4-35 50438411 Socket, 12P
4-36 50438350 ~=—- Terminal Strip, 2P
4-37 55002210 Panel, Rear Connection
4-38
50412280
Fuse
Holder
TCA
50924500
Fuse
Holder
EX
4-39 50411440 = Fuse, 2A-250V (UL) TCA
50411140 ‘Fuse, 2A EX 100V/117V area
50411010 = Fuse. 1A EX 220V/240V area
4-40 50454071 Post, Grounding
4-41 55300470 Strain Relief, AC Power Cord
4-42 55507620 ~— Angle, Panel Mounting
4-43 50471661 Cord, AC Power TCA
50471652 Cord, AC Power EX
4-44 60520070 Receptacle, Cannon; XLR-3-31 (Female)
4-45 51500040 ‘Var. Res. {w/"Snap Stop”), 100 kQ-A
4-46 51500020 Var. Res. (w/“Snap Stop”), 50 kQ-B x 2
4-47 51500030 Var. Res. (w/’Snap Stop”), 50 kQ-A x 2
4-48 51310030 Switch, Slide; 4PDT
4-49 50447430 Switch, Lever; 4PDT (part of PC Bd. Assy)
4-50 50447440 Switch, Lever; 4PDT
4-51 50447420 Switch, Lever; 4P3T (part of PC Bd. Assy)
4-52 55507370 Plate, Lever Switch Mounting
4-53 50433030 Jack, 3-wire
4-54 55507380 Bracket, Jack Mounting
4-55 55010030 _—— Chassis Assy, Amp.
4-56 51650011 ‘VU Meter
(Continued on page 18.)
