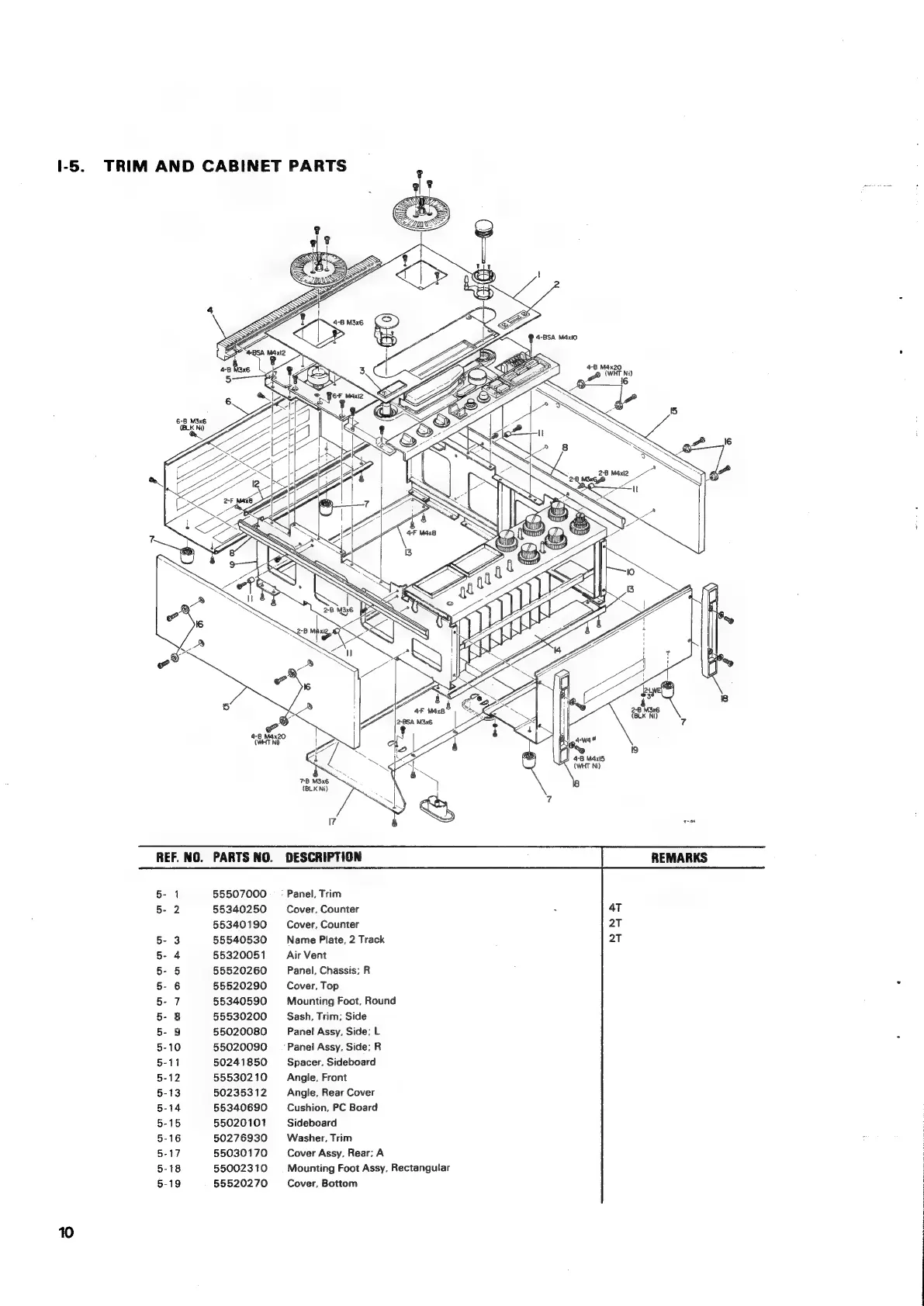

Teac A-7300 - TRIM AND CABINET PARTS EXPLODED VIEW

1-5. TRIM AND CABINET PARTS
4-8 Maxi5
(WHT Ni)
REF. NO. PARTS NO. DESCRIPTION REMARKS
5- 1 55507000 _—s— Panel, Trim
5- 2 55340250 Cover, Counter . 4T
55340190 Cover, Counter 2T
5- 3 55540530 Name Plate, 2 Track 2T
5- 4 55320051 Air Vent
5- 5 55520260 Panel, Chassis: R
5-
6
55520290
Cover,
Top
.
5- 7 55340590 Mounting Foot, Round
5- 8 55530200 Sash, Trim; Side
5- 9 55020080 Panel Assy, Side; L
5-10
55020090
_—
Panel
Assy.
Side:
R
:
5-11 50241850 Spacer, Sideboard
5-12 55530210 Angle, Front
5-13 50235312 Angle, Rear Cover
5-14 55340690 Cushion, PC Board
5-15 55020101 Sideboard
5-16 50276930 Washer, Trim
5-17 55030170 Cover Assy, Rear; A
5-18 55002310 # Mounting Foot Assy, Rectangular
5-19 55520270 Cover, Bottom
