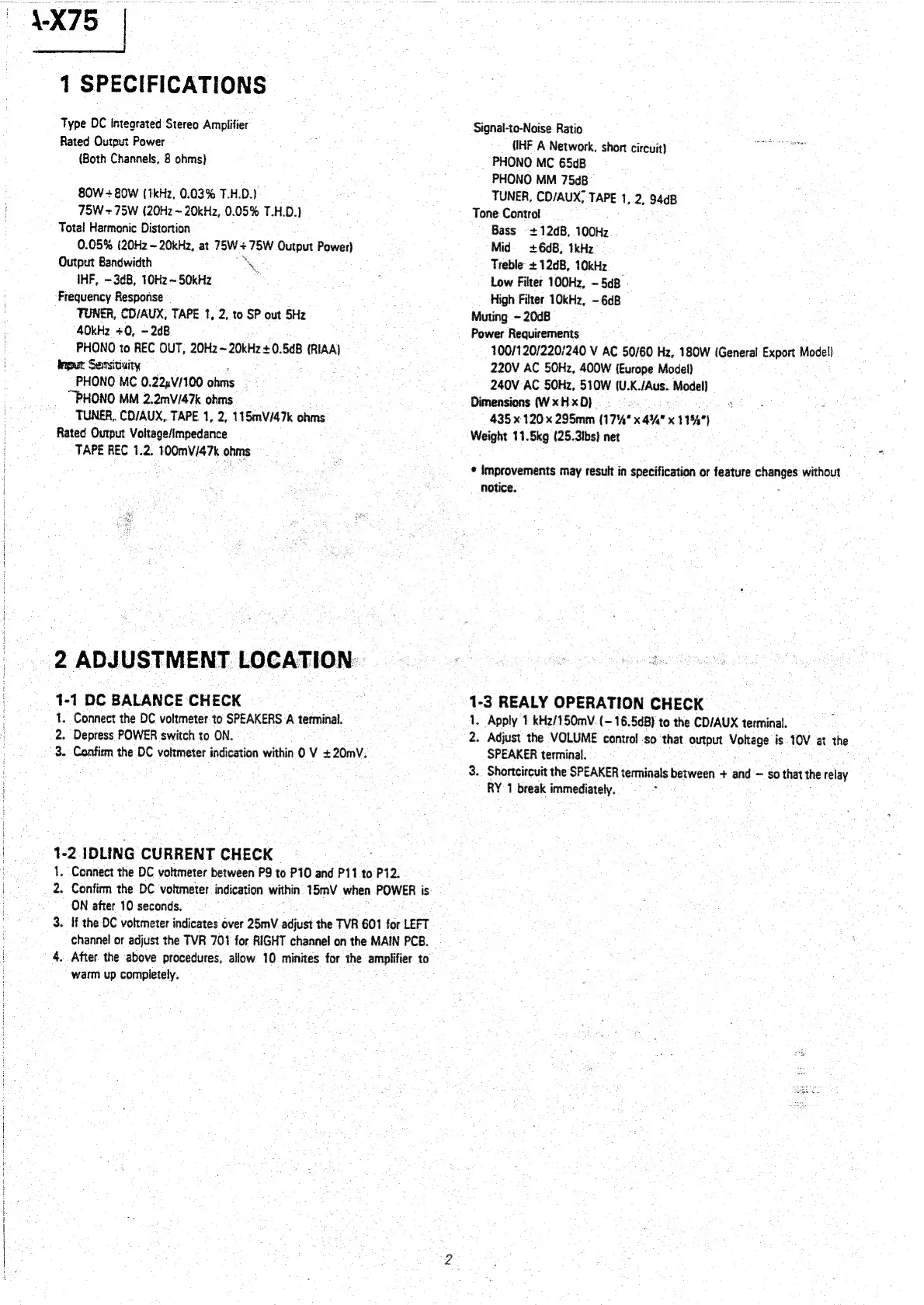

1 SPECIFICATIONS
Type OC Integrated Stereo Amplifier
Rated Output Power
{Both Channels, 8 ohms)
80W + BOW (TkHz, 0.03% T.H.D.}
75W + 75W (20Hz ~ 20kHz,.0.05% T.H.D.)
Total Harmonic Distortion
0.05% (20Hz ~ 20kHz, at TOW 750 Output Power)
Output Bandwidth he
IHF, ~3dB, 10Hz~ 50kHz
Frequency Response
TUNER, CD/AUX, TAPE 1, 2, to SP out 5Hz
40kHz +0, -2d8
PHONO
to
REC
OUT,
20H2z~20kHz+0.
5dB
(RIAA)
Input
Sensitivity
PHONO MC 0.22,V/100 cine oe
“PHONO MM 2.2mV/47k ohms
TUNER, CO/AUX, TAPE 1, 2, 115mV/47k ohms
Rated Output Voltage/Impedance
TAPE REC 1.2. 100mV/47k ohms
_ 2 ADJUSTMENT LOCATION:
1-1 DC BALANCE CHECK
1. Connect the DC voltmeter to SPEAKERS ‘A terminal.
2. Depress POWER switch to ON.
3. Confirm the DC voltmeter indication within 0 V +20mV.
1-2 IDLING CURRENT CHECK
1. Connect the DC voltmeter between P9 to P10 and P11 to P12.
2. Confirm the DC voltmeter indication within 15mV when POWER is: |
ON after 10 seconds.
3. If the DC voltmeter indicates over 25mV adjust the TVR 601 for LEFT
channel or adjust the TVR 701 for RIGHT channel on the MAIN PCB.
4. After. the above procedures, allow. 10 minites for the pnpalet to
warm up completely. :
Signal-to-Noise Ratio
{IHF
A
Network,
short
circuit)
PHONO MC 654B
PHONO MM 75¢B
TUNER,
CD/AUX,
TAPE
1,
2,
94dB
- Tone Control
Bass +12dB, 100Hz
Mid. +6dB, kHz
Treble + 12dB, 10kHz
Low Filter 100Hz, ~ 5B -
High Filter 10kHz, -6dB
Muting - 20dB
Power Requirements
100/120/220/240 V AC 50/60 Hz, 180W (General Export Model)
220V AC 50Hz, 400W {Europe Model}
240V AC SOHz, 510W (U.K./Aus. Model)
Dimensions (WxHxD). ses
435x120 x 295mm 7H x 4%" “x11%)
Weight 11.5kg (25.3lbs) net
* Improvements may result in specification or feature changes without
_ hotice. .
1-3 REALY OPERATION CHECK
1.
Apply
1
kH2z/150mvV.(-
16.548)
to
the
CD/AUX
terminal.
2.
Adjust
the
VOLUME
contro!
so
that.
output
Voltage
is
10V
at
the
SPEAKER
terminal.
3..
Shortcircuit
the
SPEAKER
terminals
between
+
and
’—
so
o
that
the
relay
RY
1
break
immediately.
