Teac CD-3 - Page 13

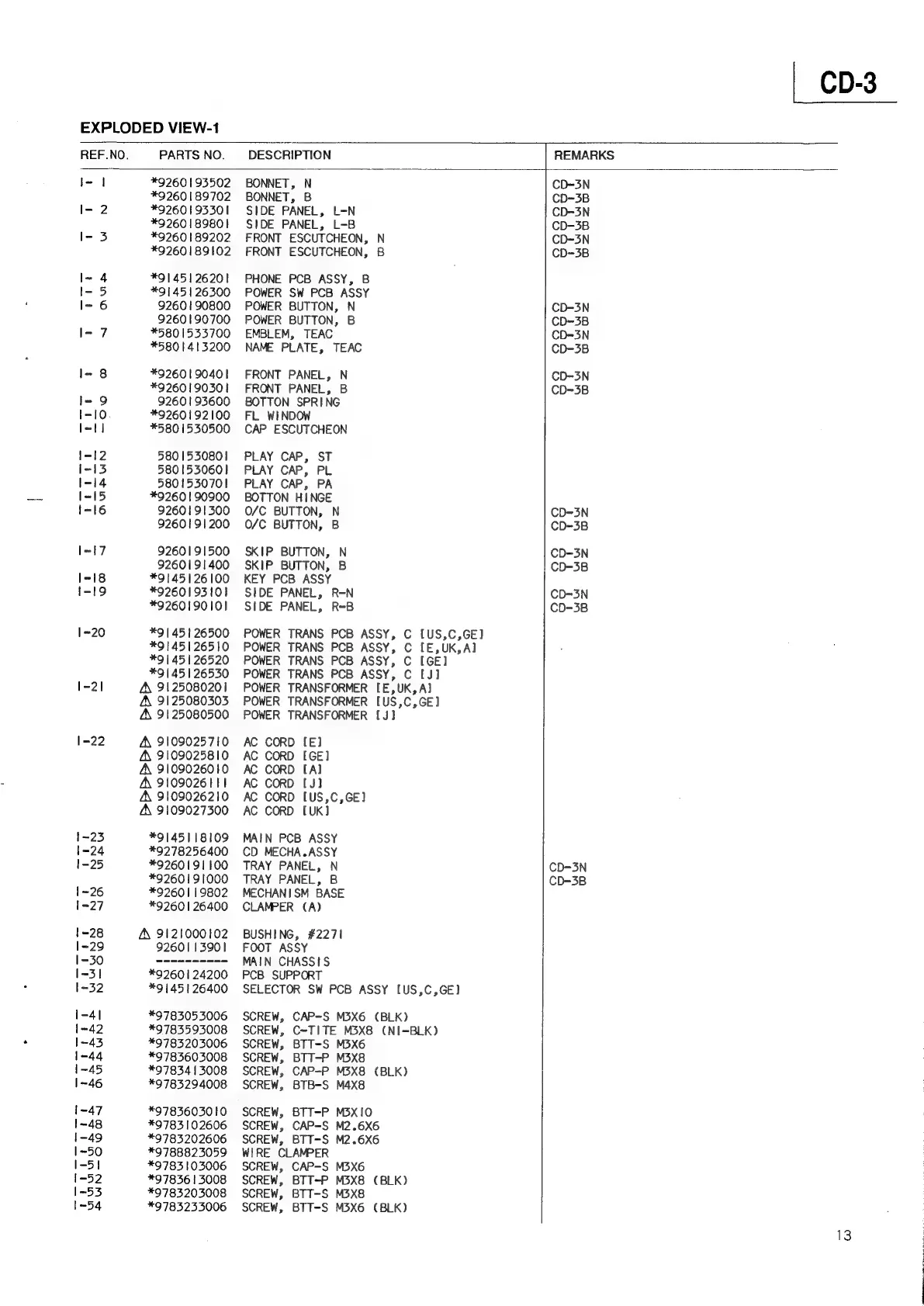

EXPLODED VIEW-1
REF.NO. PARTS NO. DESCRIPTION REMARKS
I- | *9260193502 BONNET, N CD-3N
*9260189702 BONNET, B CD-3B
I- 2 *9260193301 SIDE PANEL, L-N CD-3N
*9260189801 SIDE PANEL, L-B CD-3B
I- 3 *9260189202 FRONT ESCUTCHEON, N CD-3N
*9260189102 FRONT ESCUTCHEON, B CD-3B
I~ 4 *9145126201 PHONE PCB ASSY, B
I- 5 *9145126300 POWER SW PCB ASSY
I- 6 9260190800 POWER BUTTON, N CD-3N
9260190700 POWER BUTTON, B CD-3B
l- 7 *5801533700 EMBLEM, TEAC CD=3N
*5801413200 NAME PLATE, TEAC CD-3B
I- 8 *9260190401 FRONT PANEL, N CD=3N
*926019030! FRONT PANEL, B CD~3B
I- 9 9260193600 BOTTON SPRING
1-10 *9260192100 FL WINDOW
I-t] *5801530500 CAP ESCUTCHEON
1-12 580153080! PLAY CAP, ST
I-13 5801530601 PLAY CAP, PL
1-14 5801530701 PLAY CAP, PA
1-15 *9260190900 BOTTON HINGE
1-16 9260191300 O/C BUTTON, N CD~3N
9260191200 O/C BUTTON, B CD~3B
I~17 9260191500 SKIP BUTTON, N CD-3N
9260191400 SKIP BUTTON, B CD-3B
1-18 *9145126100 KEY PCB ASSY
1-19 *9260193101 SIDE PANEL, R-N CD-3N
*9260190101 SIDE PANEL, R=B CD-3B
1-20 *9145126500 POWER TRANS PCB ASSY, C [US,C,GE]
*9145126510 POWER TRANS PCB ASSY, C [E,UK,A]
*9145126520 POWER TRANS PCB ASSY, C [GE]
*9145126530 POWER TRANS PCB ASSY, C [J]
1-2| A\ 9125080201 POWER TRANSFORMER [E,UK,A}
A\ 9125080303 POWER TRANSFORMER [US,C,GE]
A, 9125080500 POWER TRANSFORMER [J]
1-22 A\ 9109025710 AC CORD [E]
Ay 9109025810 AC CORD [GE]
A\ 9109026010 AC CORD [Al
A 9109026111 AC CORD [J]
A\ 9109026210 AC CORD [US,C,GE]
A\ 9109027300 AC CORD [UK]
1-23 *9145118109 MAIN PCB ASSY
1-24 *9278256400 CD MECHA.ASSY
1-25 *9260191100 TRAY PANEL, N CD-3N
*9260191000 TRAY PANEL, B CD-3B
1~26 *9260119802 MECHANISM BASE
1-27 *9260126400 CLAMPER (A)
1-28 A 9121000102 BUSHING, #2271
1-29 9260113901 FOOT ASSY
1-300 pee ennna= MAIN CHASSIS
1-31 *9260124200 PCB SUPPORT
1-32 *9145126400 SELECTOR SW PCB ASSY [US,C,GE]
1-4] *9783053006 SCREW, CAP-S M3X6 (BLK)
1-42 *9783593008 SCREW, C~TITE M3X8 (NI-BLK)
1-43 *9783203006 SCREW, BTT-S M3X6
1-44 *9783603008 SCREW, BTT-P M3X8
1-45 *9783413008 SCREW, CAP-P M3X8 (BLK)
1-46 *9783294008 SCREW, BTB-S M4x8
1-47 *9783603010 SCREW, BTT-P M3XI0
1-48 *9783102606 SCREW, CAP-S M2.6X6
1-49 *9783202606 SCREW, BTT-S M2.6X6
1~50 *9788823059 WIRE CLAMPER
1-51 *9783103006 SCREW, CAP-S M3X6
1-52 *9783613008 SCREW, BTT-P M3X8 (BLK)
1-53 *9783203008 SCREW, BTT-S M3X8
1-54 *9783233006 SCREW, BTT-S M3X6 (BLK)
CD-3
