CD-3

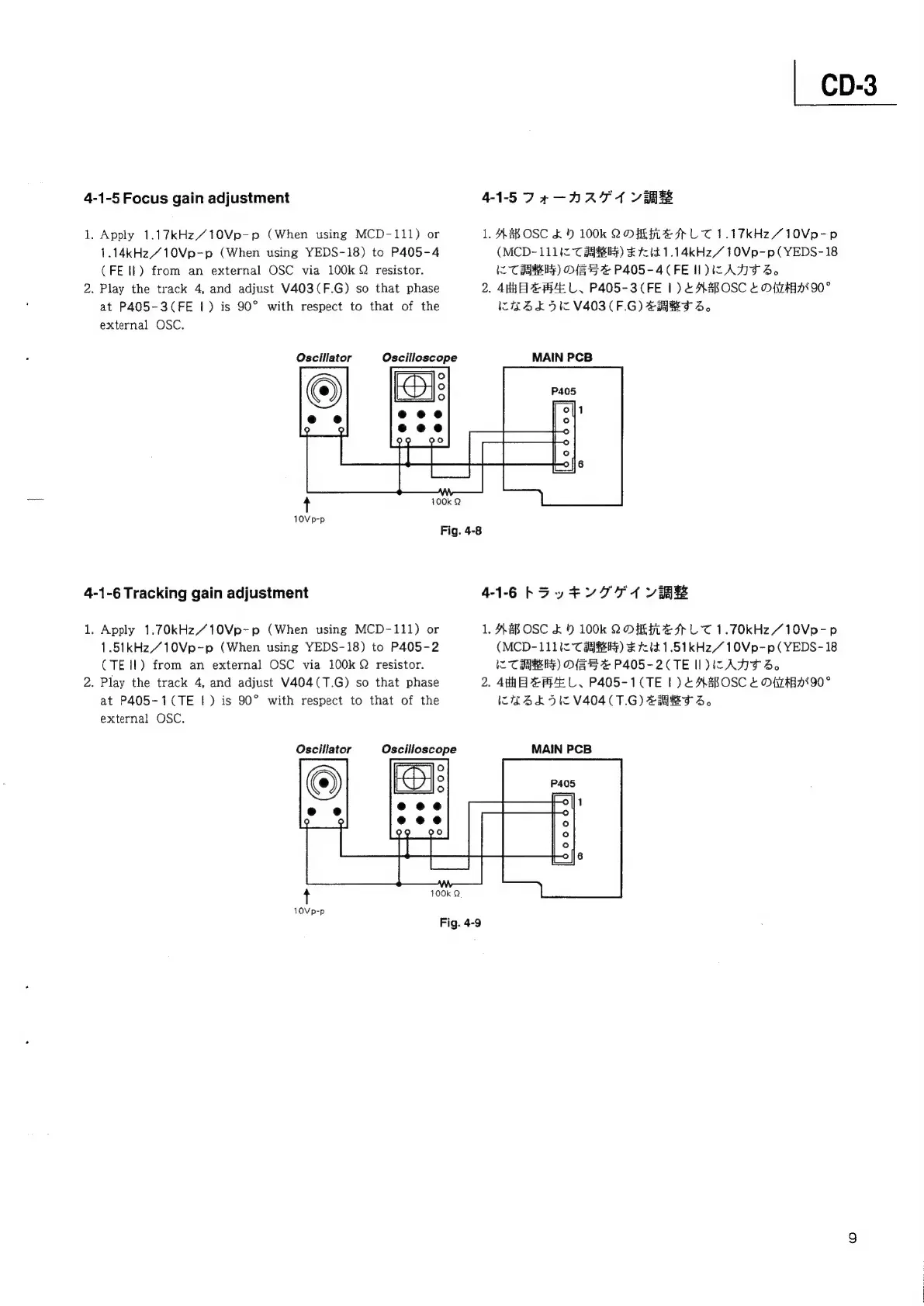

4-1-5 Focus gain adjustment 4-1-574-HATA VRE
1. Apply 1.17kHz/10Vp-p (When using MCD-111) or 1. ABBOSC &Y 100k QOHHREA UT 1.17kKHZz/10Vp- p
1.14kHz,/10Vp-p (When using YEDS-18) to P405-4 (MCD- 111 (2 Ct dae) ¥ 71d 1.14kKHZ/ 10Vp-p (YEDS-18
(FE tl) from an external OSC via 100k Q resistor. (CHI) OES = P405-4( FE W)ICADT 4S.
2. Play the track 4, and adjust V403(F.G) so that phase 2, 4HHA E+E LY P405-3(FE |) EBB OSC & OLiZtHA 90°
at P405-3(FE 1) is 90° with respect to that of the IZHHZKGITV403(F.G) FHT AS,
external OSC.
Oscillator Oscilloscope MAIN PCB
10Vp-p
Fig. 4-8
4-1-6 Tracking gain adjustment 41-6 hS yt UT 4 VBE
1. Apply 1.70kHz,/710Vp~-p (When using MCD-111) or 1. ARBOSC EY 100k QOH LT 1.70kKHZ/10Vp- p
1.51kHz,410Vp-p (When using YEDS-18) to P405-2 (MCD-111i= Cag) ¥ fed 1.51kHZ710Vp-p (YEDS- 18
(TEI!) from an external OSC via 100k Q resistor. ic CHAR) OZ SX P405-2(TE Il ICANT S.
2. Play the track 4, and adjust V404(T.G) so that phase 2. 4HHE #FH4E LL. P405-1(TE |) &EMSBROSC & MfZtBDS90°
at P405-1(7E |) is 90° with respect to that of the SZ KDITV404(7.G) RTS,
external OSC.
Oscillator Oscilloscope MAIN PCB
