Teac CD-5 - Page 15

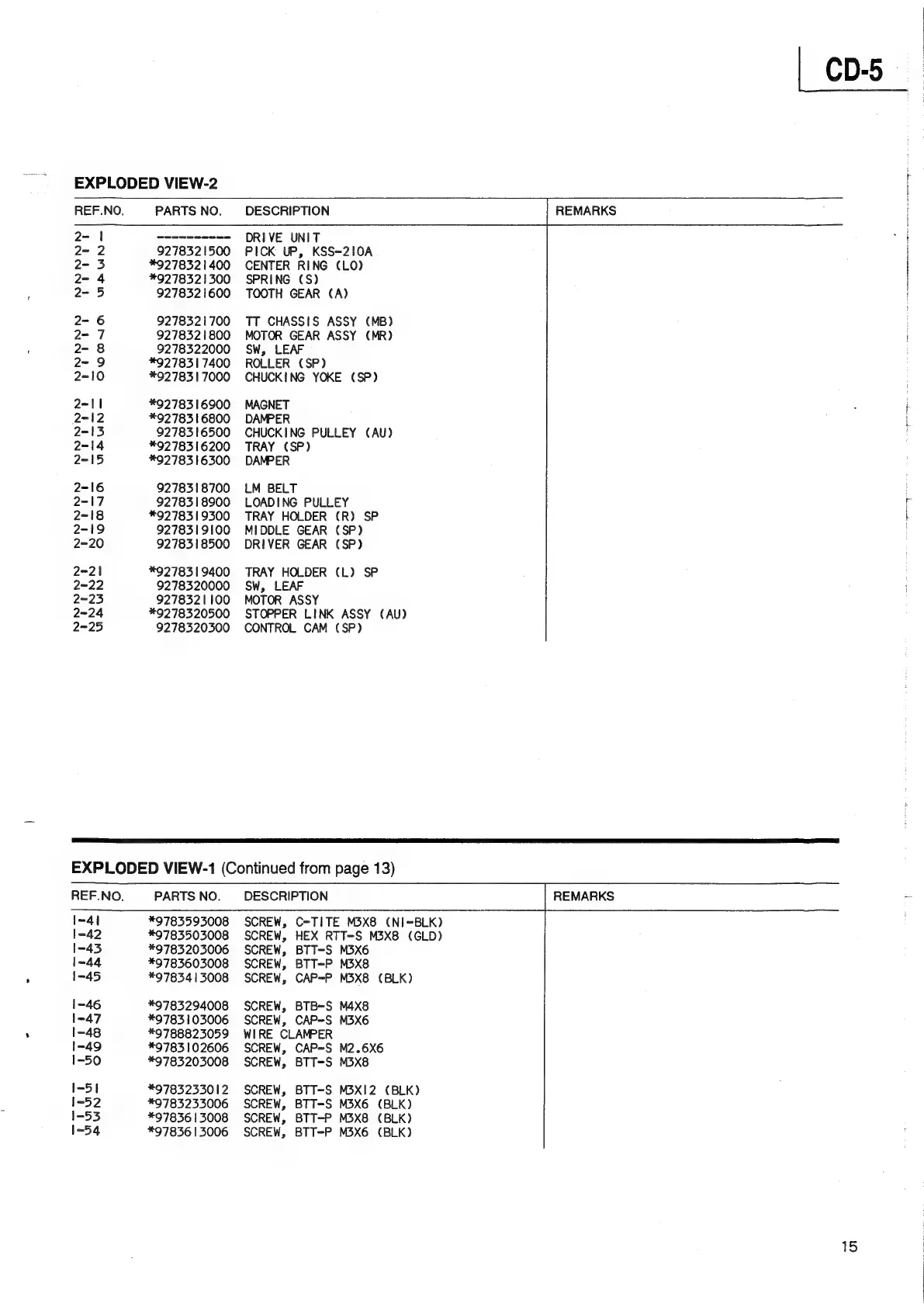

EXPLODED VIEW-2
REF.NO.
ODNHA VWARWNH—
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
PARTS NO.
9278321500
*9278321400
*9278321300
9278321600
9278321700
9278321800
9278322000
*92783 17400
*92783 17000
*92783 16900
*92783 16800
9278316500
*92783 16200
*92783 16300
9278318700
9278318900
*92783 19300
9278319100
9278318500
*92783 19400
9278320000
9278321100
*9278320500
9278320300
DESCRIPTION
DRIVE UNIT
PICK UP, KSS=210A
CENTER RING (LO)
SPRING (S)
TOOTH GEAR (A)
TT CHASSIS ASSY (MB)
MOTOR GEAR ASSY (MR)
SW, LEAF
ROLLER (SP)
CHUCKING YOKE (SP)
MAGNET
DAMPER
CHUCKING PULLEY (AU)
TRAY (SP)
DAMPER
LM BELT
LOADING PULLEY
TRAY HOLDER (R) SP
MIDDLE GEAR (SP)
DRIVER GEAR (SP)
TRAY HOLDER (L) SP
SW, LEAF
MOTOR ASSY
STOPPER LINK ASSY (AU)
CONTROL CAM (SP)
REMARKS
CD-5
EXPLODED VIEW-1 (Continued from page 13)
REF.NO.
1-4]
1-42
1-43
1-44
1-45
1-46
1-47
1-48
1-49
1-50
I-51
1-52
1-53
1-54
PARTS NO.
*9783593008
*9783503008
*9783203006
*9783603008
*97834 13008
*9783294008
*9783 103006
*9788823059
*9783 102606
*9783203008
*9783233012
*9783233006
*97836 | 3008
*97836 | 3006
DESCRIPTION
SCREW, C=TITE M3X8 (NI=BLK)
SCREW, HEX RTT-S M3X8 (GLD)
SCREW, BTT-S M3X6
SCREW, BTT=P M3X8
SCREW, CAP=P M3X8 (BLK)
SCREW, BTB-S M4x8
SCREW, CAP-S M3X6
WIRE CLAMPER
SCREW, CAP=S M2.6X6
SCREW, BTT-S M3X8
SCREW, BTT-S M3X12 (BLK)
SCREW, BTT-S M3X6 (BLK)
SCREW, BTT-P M3X8 (BLK)
SCREW, BTT-P M3X6 (BLK)
REMARKS
15
