Teac CD-5 - Laser Diode and Voltage Checks

CD-5

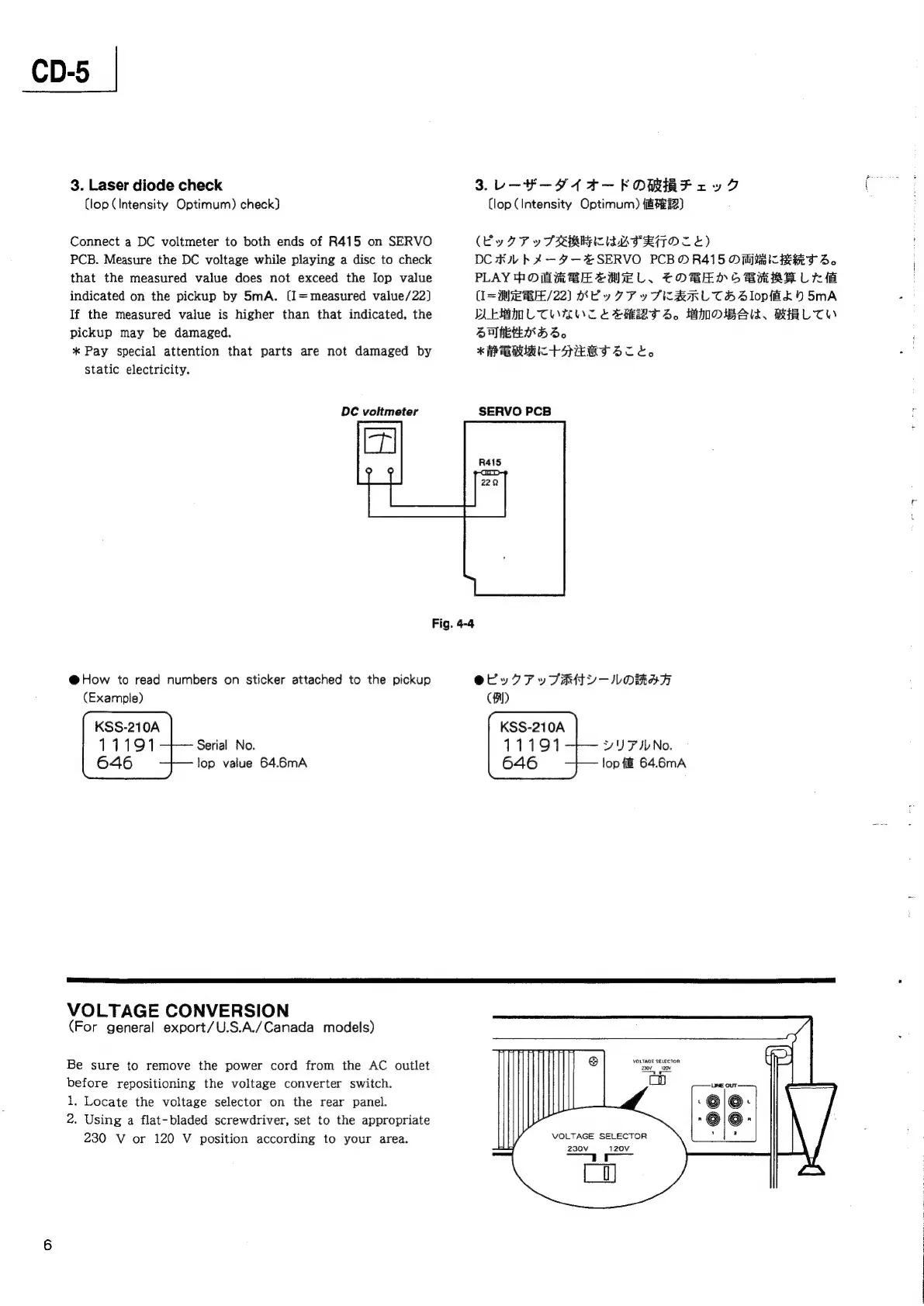

3. Laser diode check
(lop (Intensity Optimum) check]
Connect a DC voltmeter to both ends of R415 on SERVO
PCB. Measure the DC voltage while playing a disc to check
that the measured value does not exceed the Iop value
indicated on the pickup by 5mA. (1=measured value/22)
If the measured value is higher than that indicated, the
pickup may be damaged.
* Pay special attention that parts are not damaged by
Static electricity.
DC voltmeter
3.b-¥-SAA-FOPBF cy 7
(lop (Intensity Optimum) (###22)
(CY TT » FIED PETO ©)
DC #Vb A -Y—-ZSERVO PCBOR415 Of ic BRT SZ.
PLAY PORRBEtHELL TOBE SCBHARALKME
(1=REBE/22) NY IT vy ARR THS loplh&Y 5mMA
DEBMUTWORU CE SHRT A. WMOBSI. BRL TH
BUREN HS —
KPBWRICLHERT SCL.
SERVO PCB
@How to read numbers on sticker attached to the pickup
(Example)
KSS-210A
11191
646
Serial No.
lop value 64.6mA
Fig. 4-4
OCI YTRAY —WORAA
(Bil)
KSS-210A
11191
646
YY PIVNo.
lop fH 64.6mA
VOLTAGE CONVERSION
(For general export/U.S.A./Canada models)
Be sure to remove the power cord from the AC outlet
before repositioning the voltage converter switch.
1. Locate the voltage selector on the rear panel.
2. Using a flat- bladed screwdriver, set to the appropriate
230 V or 120 V position according to your area.
VOLTAGE SELECTOR
230¥ 120
VOLTAGE SELECTOR
230V_ _120V
