Teac DW-224E-V - IDE Interface Timing

– 15 –

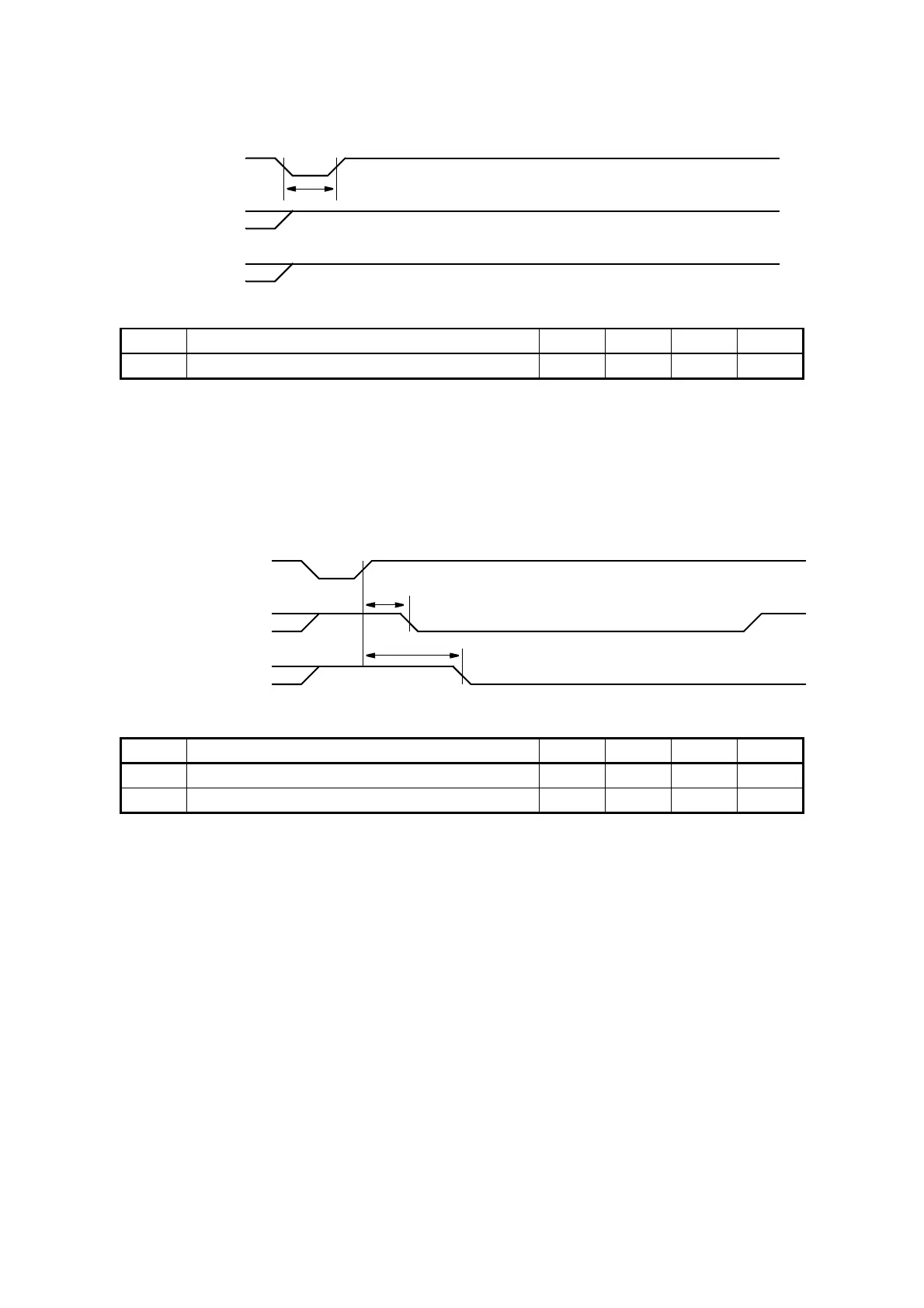

(Fig. 14.4-1) Reset timing (master)
(Fig. 14.4-2) Reset timing (slave)
Symbol Item Min Typ Max Unit
t1 –HRST pulse width 25 µs
Symbol Item Min Typ Max Unit
t2 –DASP assert time 70 400 ms
t4 –PDIAG assert start 0.2 30 s
H
L
–RESET
H
L
H
L
–DASP
–PDIAG
t1
H
L
–RESET
H
L
H
L
–DASP
–PDIAG
t2
t4
