Teac DW-224E-V - Installation Guidelines

– 4 –
3.2 Installation
(1) Installation direction : Refer to Fig. 3.2-1
(2) Tilt : Refer to Fig. 3.2-1 below.
(3) Installation method : The fixing holes in the side of the unit are used.
Separate discussions and arrangements are required when the
installation holes are not used.

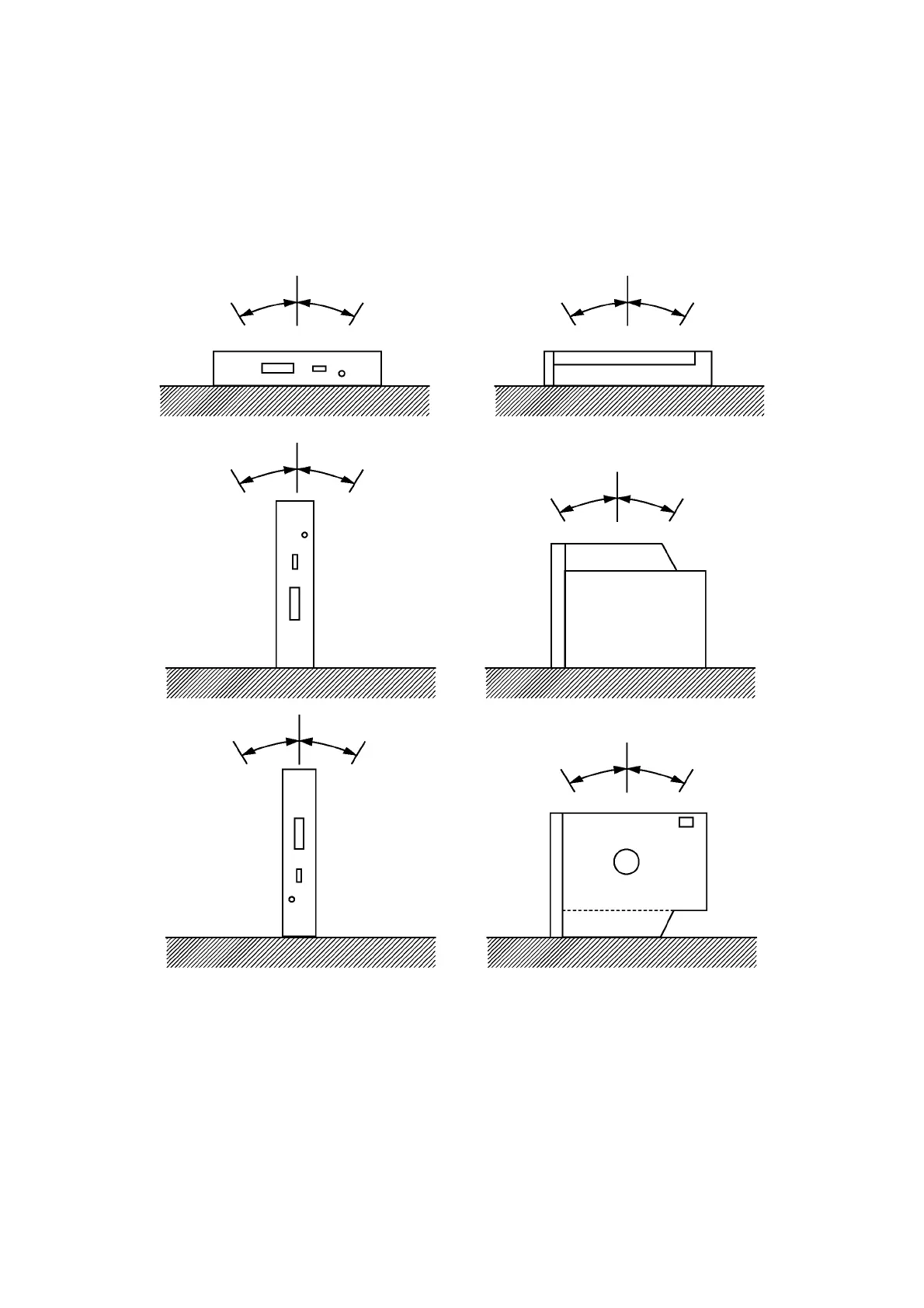

(Fig. 3.2-1) Tilt of the drive
30° or less 30° or less 30° or less 30° or less
30° or less 30° or less
0° or less 30° or less
30° or less 30° or less
30° or less 0° or less
(a)
(b)
(c)
