– 18 –

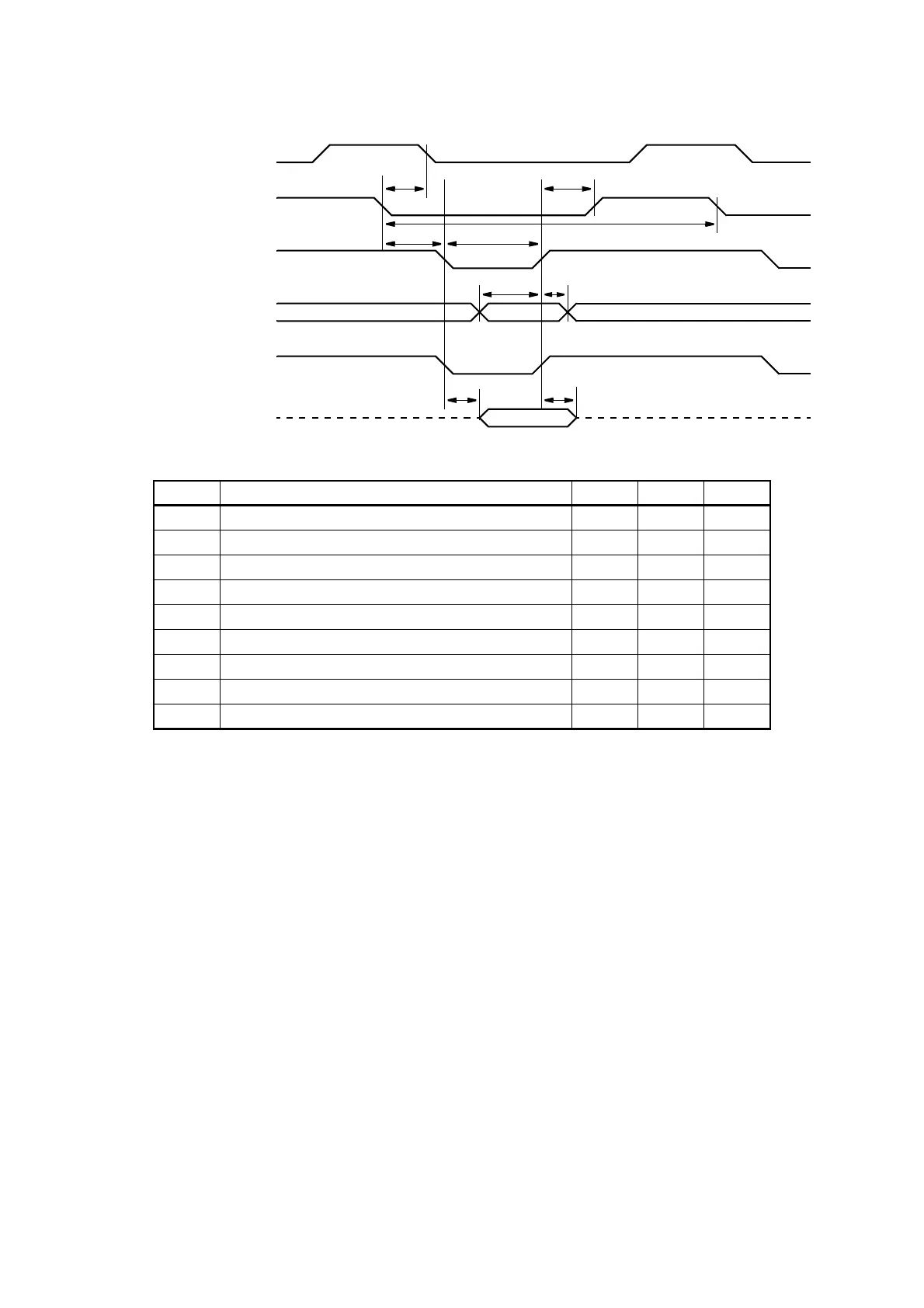

(Fig. 14.4-5) DMA single word transfer timing
Symbol Item Min Max Unit
t26 From –DMACK assert to –DMAREQ negate 80 ns
t27 From –DMACK assert to –DIOW low 0 ns
t28 –DIOW, –DIOR pulse width 120 ns
t30 Write data setup time 35 ns
t31 Write data hold time 20 ns
t32 Read data delay time 60 ns
t33 Read data hold time 5 ns
t34 From –DIOW, –DIOR high to –DMACK negate 0 ns
t36 Cycle time 240 ns
H
L
H
L
H
L
H
L
H
L
DMARQ
–DMACK
–DIOW
DD0 ~ DD15
–DIOR
H
L
DD0 ~ DD15
t26 t34
t27
t28
t36
t30
t31
t32
t33
