2. TV PLACEMENT SETUP
100mm
100mm
100mm
100mm
Thread hole size ± M4 x 10 depth (TV Mounting Screw Size) on the TV.
Wall Mounting
1. Ensure thattheselected wall is made of appropriate material and can support the
weight of the TV. Make sure there are no pipes or cables inside the wall on your
chosen position.
2. Obtain asuitable wall mounting bracket and mounting eyebolts (thread size M4x10)
and screws from yourlocalhardware store.
3. Place the unit face down on asoft surface.
4. Remove the attached leg atthebottom of the TV byremovingthe5screws on the
leg cover.
5. Refit the cover securely by replacing the 5 screws into their originalpositions.

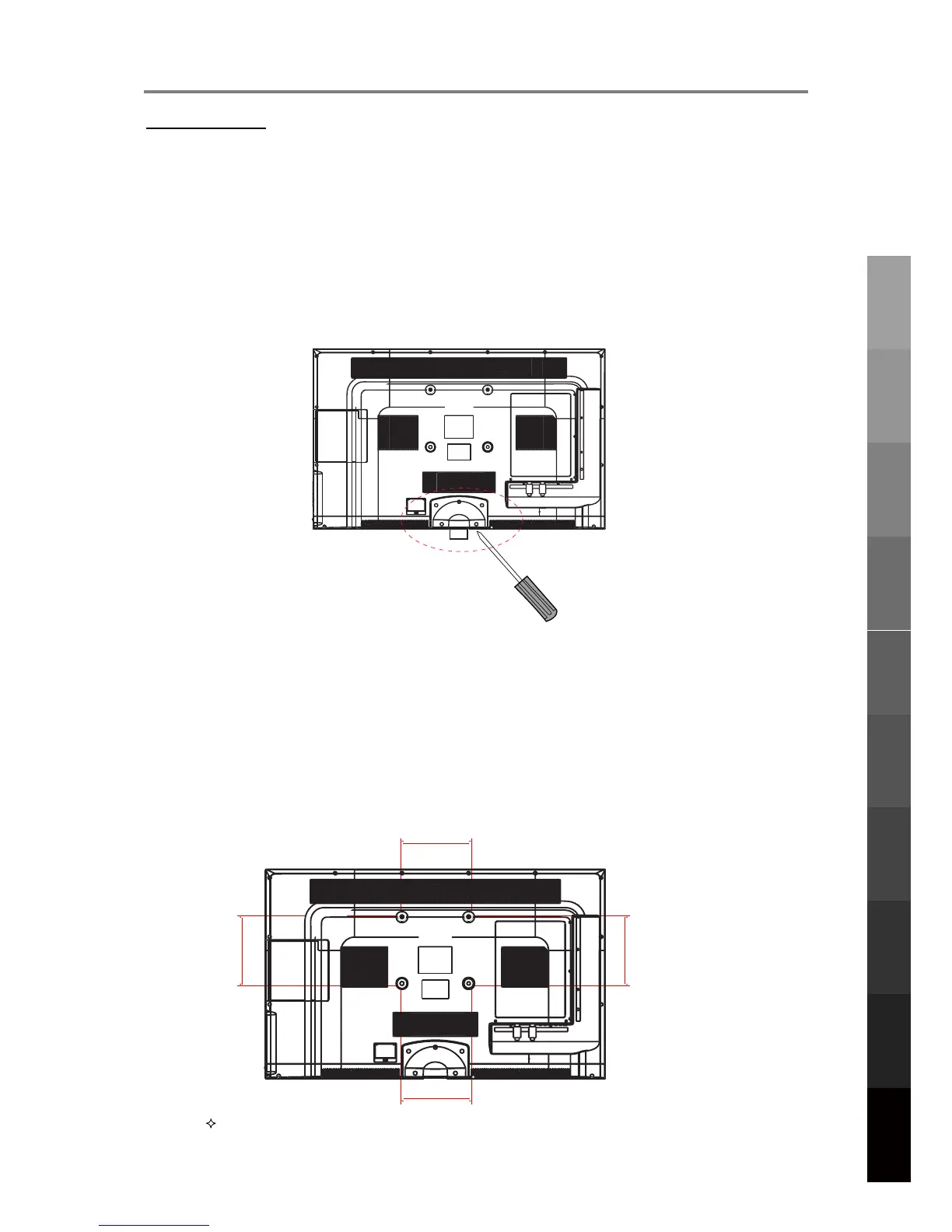

6. Fasten 4 eyebolts LQWRWKHIRXUVFUHZKROHVRQWKH79¶VUHDUpanel according to the
diagram.
7. Fasten the wall mounting b racket using screws onto the wall.
8. Connect the eyeboltsand the wall bracket securely with strong rope
9. Ca refully check that all fasteningsare secure b efore releasing the TV.
