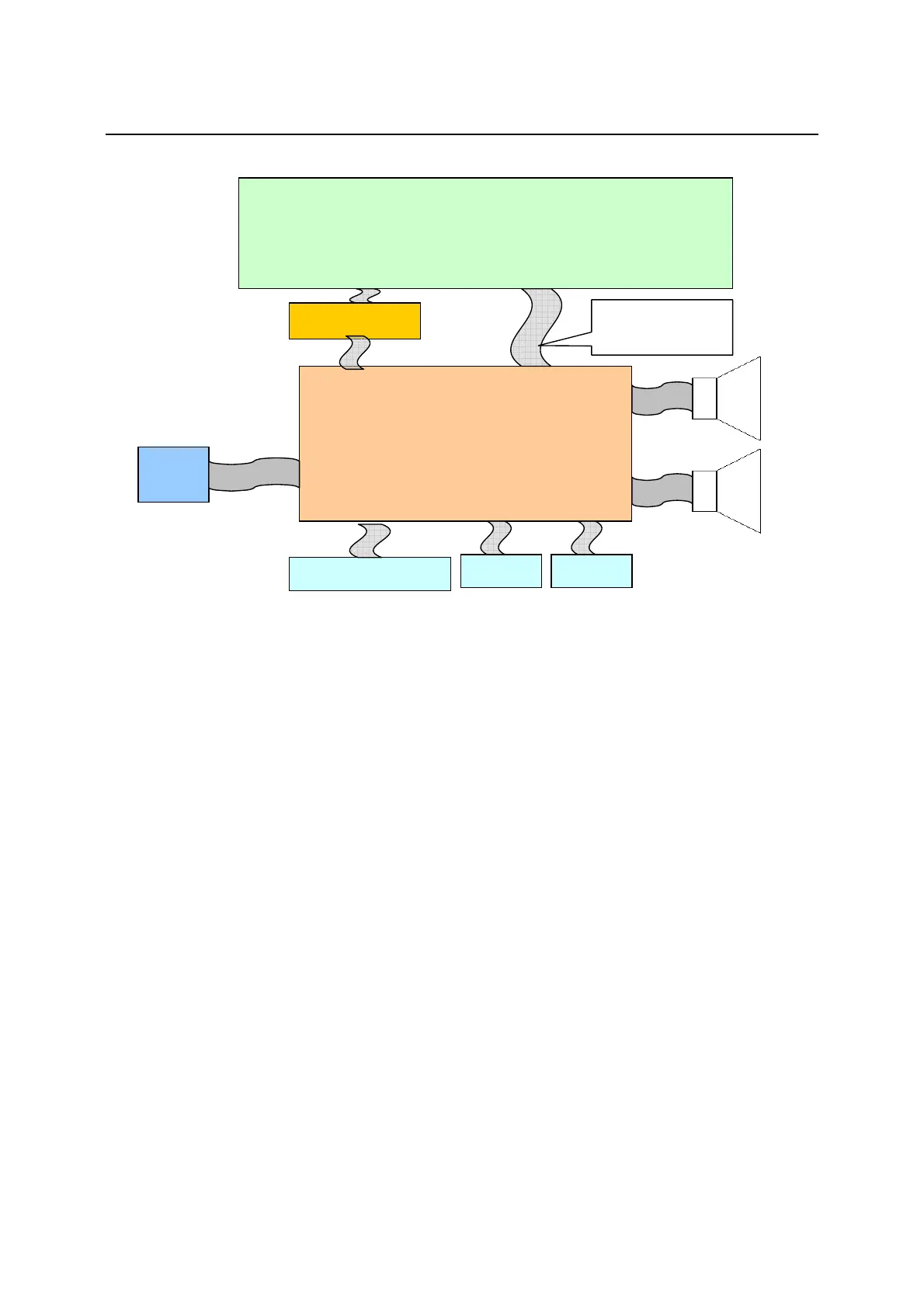

2.Block Diagram
1) Mainboard˖
Control all input signals, Decode the video signal, De-interlace, and send digital
signals (LVDS signal) to panel.
2) Panel˖Display all image;
3) IR Board : Receive IR Signal;
4) Keyboard POWERǃSOURCEǃMENUǃVOL+/- ,Channel +/-;
5) Adapter: 110V-240V AC IN,Ouput 12V DC to the mainboard
6) Inverter Board: the power supply for backlight of panel.
7) DVD Module: built-in DVD player with slot-in loader.
Panel Display
Mainboard
Inverter Board
IR Board Keyboard
LVDS Cable M/B
to Panel
Adapter Input(DC12V)
DVD
Module
