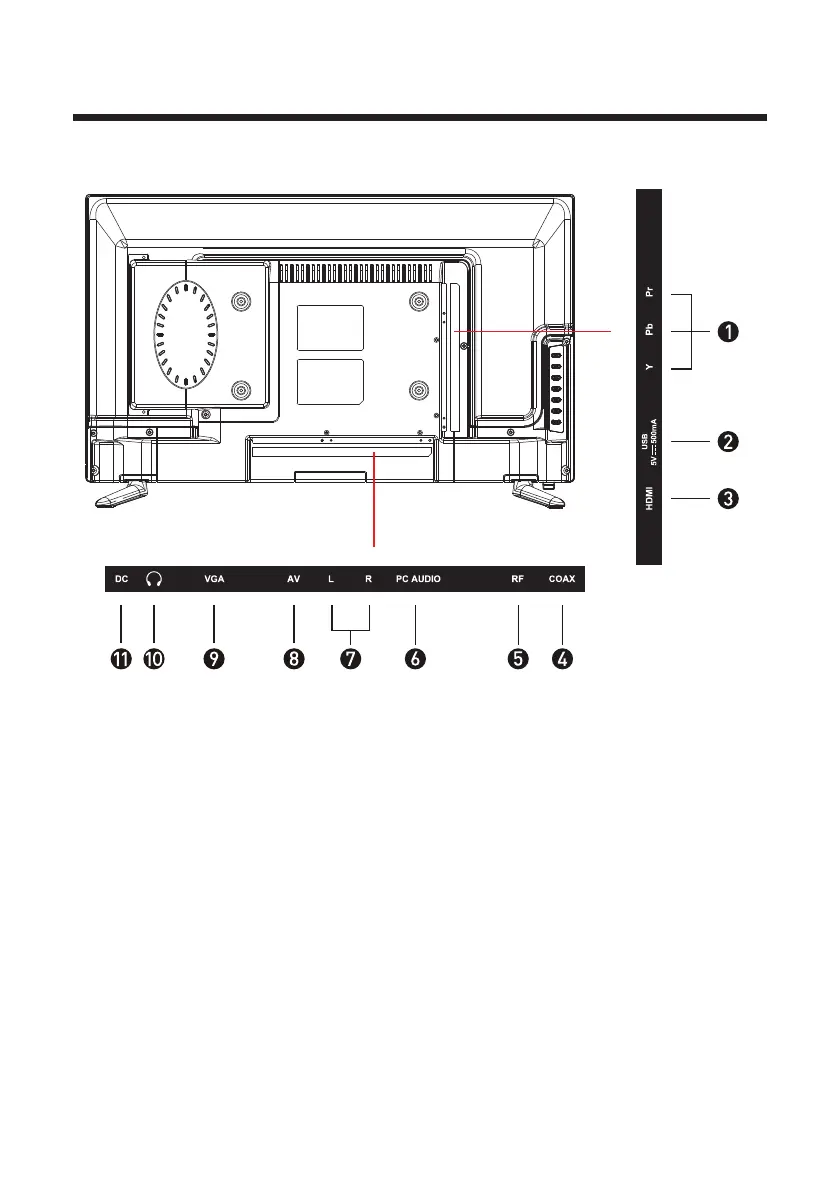

4. COAXIAL
10. HEADPHONES
11. DC IN 12V
2.
USB
3. HDMI
1.
YPbPr: Connect to the YPbPr video
output terminal of the DVD
5. RF: Antenna connection
7.
AUDIO IN R/L: Stereo audio input
6. PC AUDIO: Connect it to the audio
output terminal of the PC
9. VGA: PC video input
8. VIDEO: Video input
NOTE:
Before making or changing cable connections, please make sure that power to the unit is
completely disconnected by switching off the power supply and unplugging the power
cable from the wall outlet.
