Teac MCD65BT - System Connections

SERIAL NUMBER:
30*10mm
CD PLAYER
POWER:AC 110-240V~ 50/60Hz
MAX.POWER CONSUMPTION:20W
In case of operational difficuilty or service
www.teac.com.au
MADE IN CHINA
MODEL No.:MCD65BT
contact the TEAC Customerrequirements,
Support Hotline (TCS)1300 553 315
R
L
R
L
AUDIO OUT
AUDIO IN
L
R
AUDIO OUT
System Connections
External Amplifier System
DVD Player

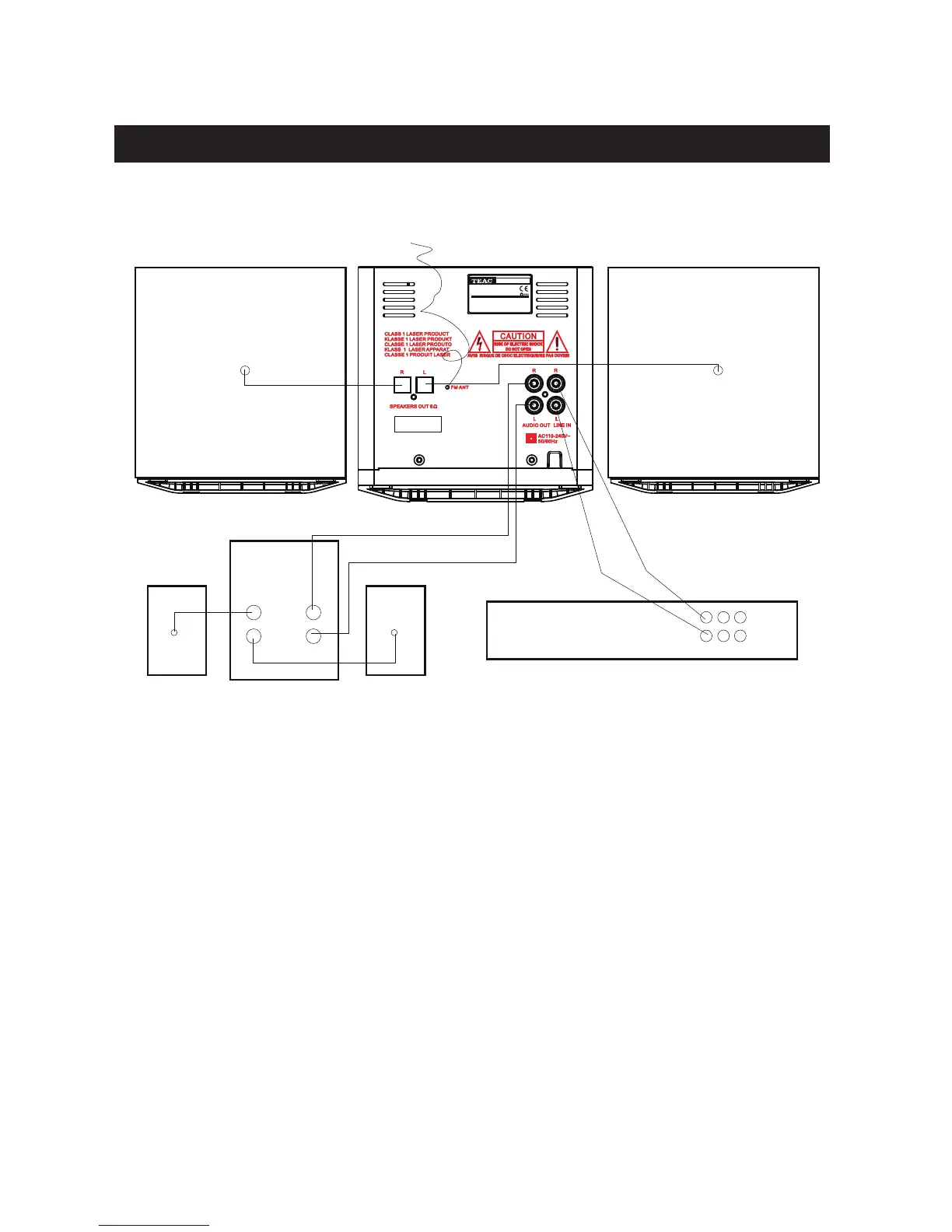

The figure below shows possible optional connections to other multimedia systems.
1. SPEAKERS OUT: Connect to the MCD65BT speakers (R and L)
2. AUDIO OUT: Connect with with R/L audio cables to an external speaker system
3. LINE IN: Connect with R/L audio cables to an external media player (eg. DVD player)
4. FM ANT: Connect the FM antenna (included) for FM reception
6
